Tractor · 1949Unverified

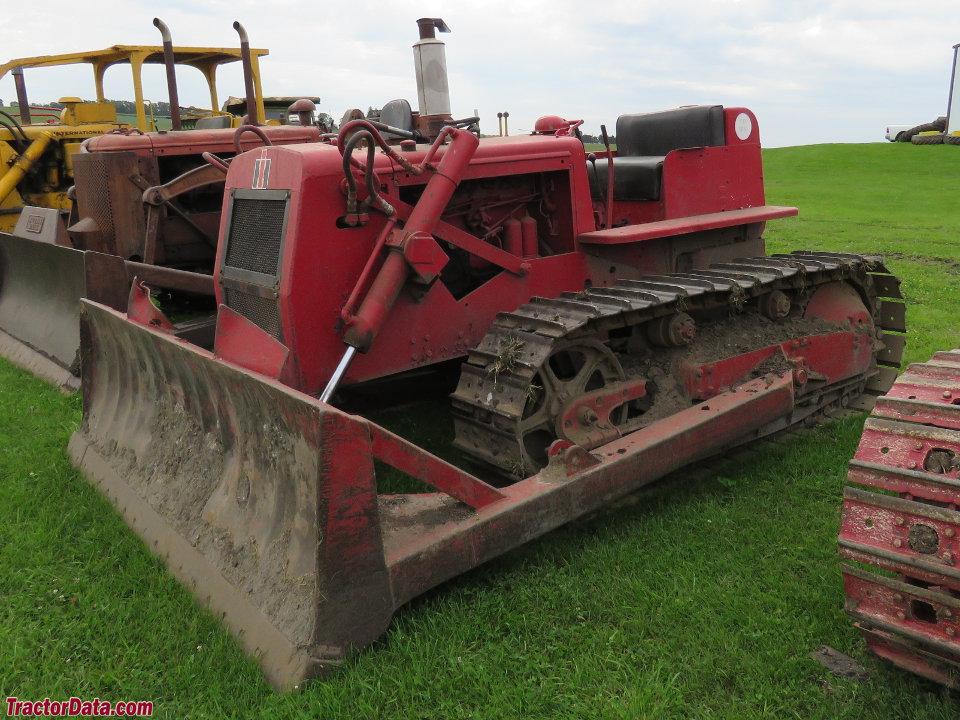

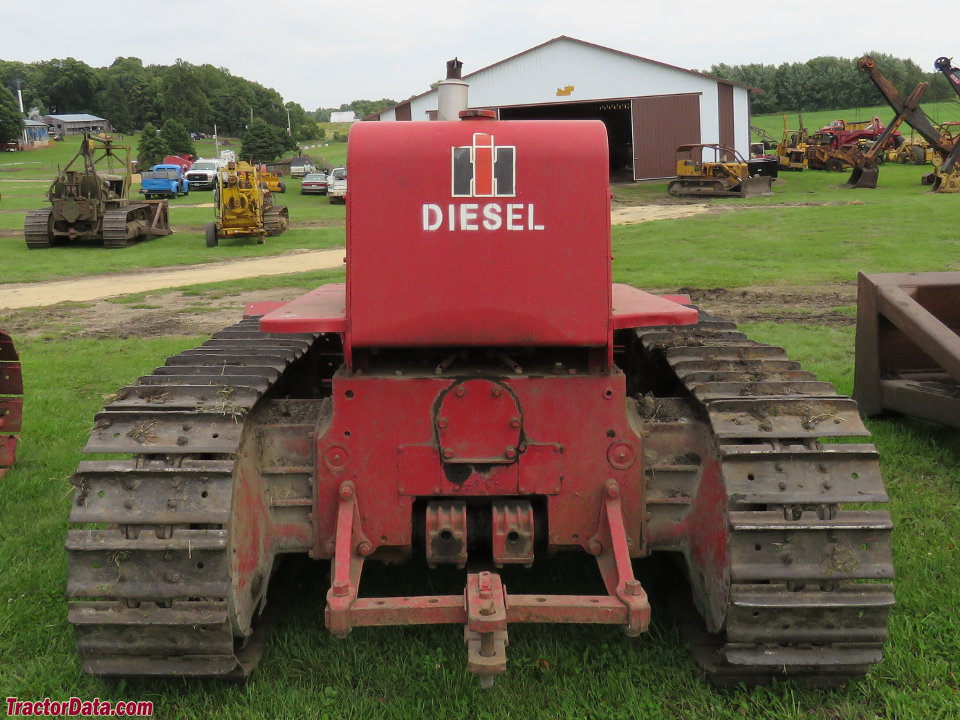

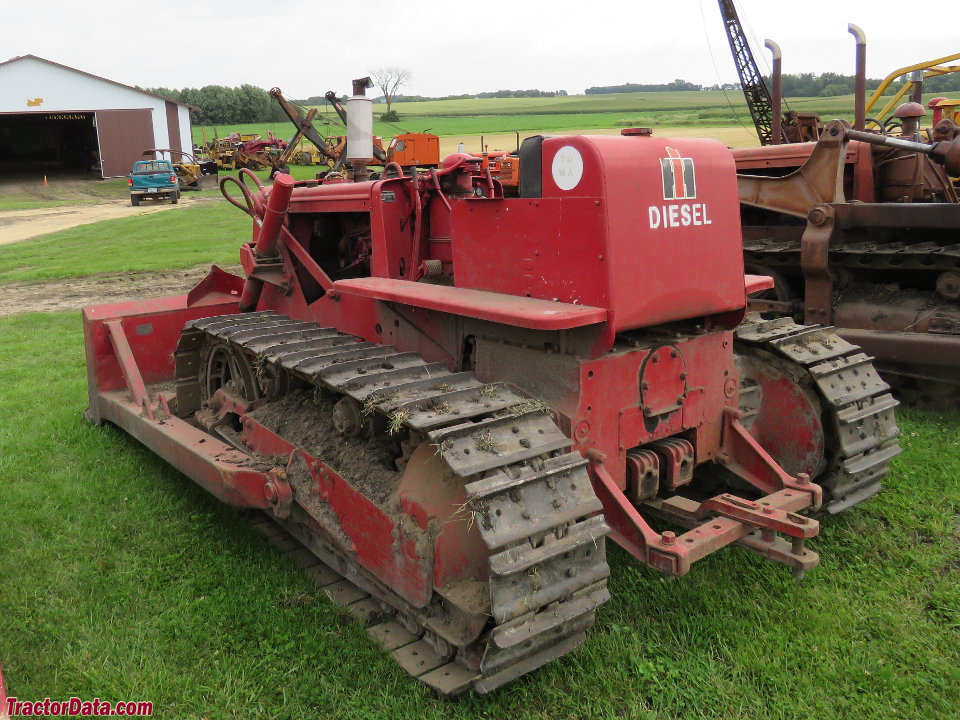

International Harvester TD-14A
International Harvester TD-14A — Model year 1949-19551955-19561956-1958 · 61 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
61 hp
Max power
46.7 kW
Weight
15975 to 18300 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Built in Melrose Park, Illinois, USAReference
DrivecrawlerReference
Contracting band brakesReference
Open operator station.Reference
Engine
International Harvester 7.6L 4-cyl dieselReference
Fuel tank170.3 LReference
Aux. fuel5.0 LReference
Drawbar (claimed)45.1 kWReference
Belt (claimed)53.7 kWReference
Drawbar (tested)46.7 kWReference
Belt (tested)53.5 kWReference
International HarvesterReference
dieselReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement7.6 LReference
Bore/Stroke121 x 165 mmReference
Air cleaneroil bathReference
Compression15.5:1Reference
Rated RPM1400Reference
Startergasoline-startReference
Starter volts12Reference
Oil capacity15.1 LReference
Coolant capacity71.9 LReference
Belt power (max)53.5 kWReference
Max power46.7 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOoptionalReference
Rear PTO Type540Reference
Dimensions
Weight15975 to 18300 poundsReference
16-inch tracksReference
Length340 cmReference
Width233 cmReference
Height229 cmReference
Gauge142 cmReference
Gauge187 cmReference
Shipping7246 kgReference
Shipping7631 kgReference
Operating8300 kgReference
International Harvester TD-14A attachments
front-end loaderReference
TD-14A Serial Number Location
Serial number plate on the upper-left of the TD-14A dashboard.Reference
TD-14A Serial Numbers
194926760 (TDF)Reference
195027082 (TDF)Reference
195129361 (TDF)Reference
195232427 (TDF)Reference
195334525 (TDF)Reference
195437344 (TDF)Reference
195539061 (TDF)Reference
Final39300 (TDF)Reference
195539301 (TD141)Reference
195640862 (TD141)Reference
Final41550 (TD141)Reference
195641551 (TD142)Reference
195743968 (TD142)Reference
195845010 (TD142)Reference
Final45558 (TD142)Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter29 cmReference
Width27 cmReference
RPM875Reference
Speed820.52 meters/minReference
International Harvester TD-14A Tracks
Width40 cmReference
Length on ground199 cmReference
Area on ground1.6 m²Reference
Ground pressure0.4 barReference
Width45 cmReference
Area on ground1.8 m²Reference
Test results
Diesel 6-speed crawlerJune 26 - July 1, 1950Link: Nebraska Tractor Test 445 fileReference
Belt fuel use (max)17.8 l/hourReference
Drawbar performanceReference
Gear 2 used for power test.Reference
Max pull6646 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
