Tractor · 1958Unverified

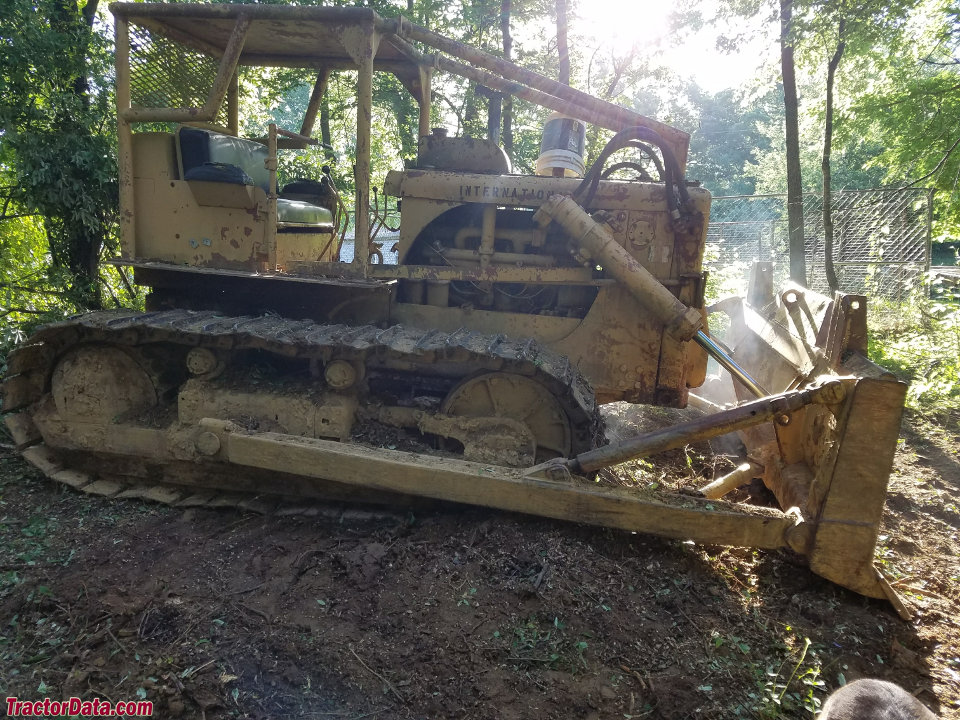

International Harvester TD-15
International Harvester TD-15 — Agricultural Crawler tractor · 105 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
105 hp
Max power
57.4 kW
Weight
10224 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Built in Melrose Park, Illinois, USAReference
Total built3,500Reference
DrivecrawlerReference
Open operator station.Reference
Engine
International Harvester 9.1L 6-cyl dieselReference
Fuel tank230.9 LReference
Aux. fuel5.0 LReference
Engine (net)78.3 kWReference
Drawbar (claimed)63.4 kWReference
Drawbar (tested)57.4 kWReference
International HarvesterReference
dieselReference
6-cylinderReference
liquid-cooled vertical L-headReference
Displacement9.1 LReference
Bore/Stroke117 x 140 mmReference
Power (net)78.3 kWReference
Compression15.95:1Reference
Rated RPM1650Reference
Torque523.4 NmReference
Torque RPM1200Reference
Starter volts12Reference
Coolant capacity71.9 LReference
Max power57.4 kWReference
Transmission
6-speed shuttleReference
TypeshuttleReference
Gears6 forward and reverseReference
Clutch381mm dry discReference
Dimensions
Weight10224 kgReference
16-inch tracksReference
Length382 cmReference
Width233 cmReference
Height (hood)207 cmReference
Height (exhaust)237 cmReference
Operating weight10224 kgReference
Ground clearance27 cmReference
Gauge187 cmReference
International Harvester TD-15 attachments
front-end loaderReference
TD-15 Serial Numbers
Location:Serial number plate on the lower-right of the dashboard.Reference
1958501 (150)Reference
1959577 (150)Reference
19602456 (150)Reference
19613501 (150)Reference
19614001 (151)Reference
19624680 (151)Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemgeneratorReference
Batteries2Reference
Battery volts6Reference
International Harvester TD-15 Tracks
Width40 cmReference
Test results
Diesel crawlerJuly 30 - August 17, 1960Link: Nebraska Tractor Test 750 fileReference
Drawbar performanceReference
Fuel use29.5 l/hourReference
Gear 2 used for power test.Reference
Max pull9650 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
