Tractor · 1958Unverified

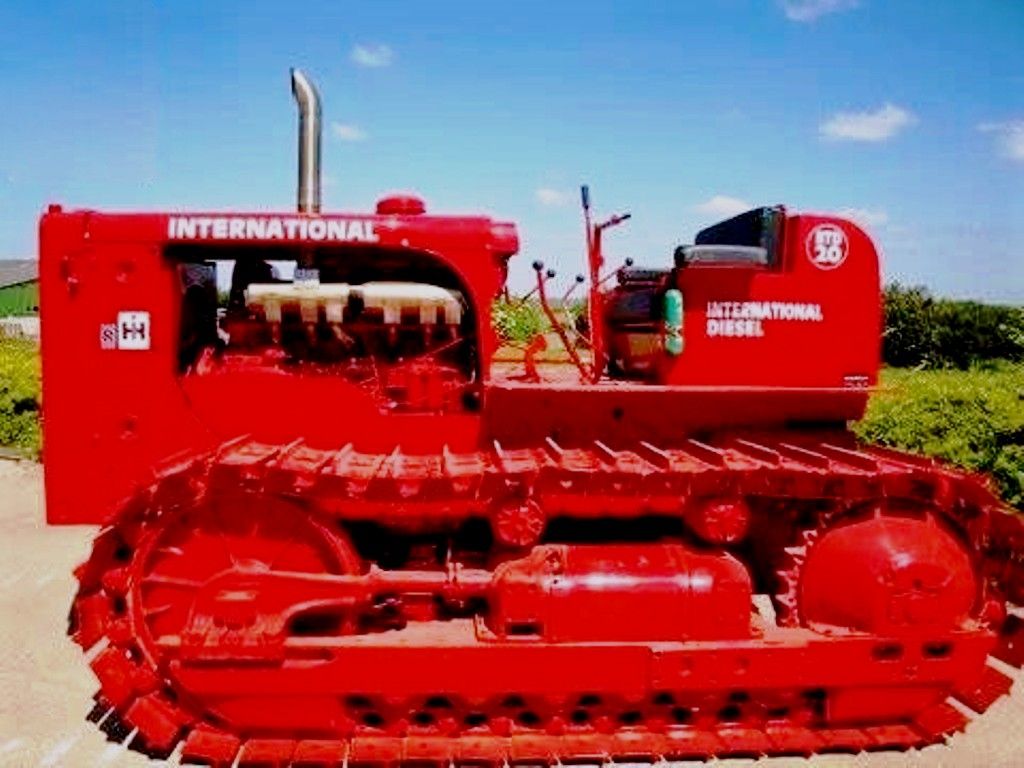

International Harvester TD-20 200
International Harvester TD-20 200 — Model year 1958-19601961-1962 · 134 hp. Reference specifications; pending source verification.
The International Harvester TD-20 200 is a tractor with a rated output of 134 hp, categorising it among the more powerful machines in its class. Manufactured between 1958 and 1962, this model features a 6-cylinder diesel liquid-cooled engine and a 6-speed gearbox driving a tracked undercarriage. The listed weight is 14735 kg, and it is suitable for jobs covering approximately 200–800 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
134 hp
Weight
14735 kg
Catalogue coverage
Variants represented
2
Richest spec table
29 rows
Recorded power
134 hp
Recorded weight
14735 kg
Transmissions
6-speed gear
Production years
1958-1962
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Built in Melrose Park, Illinois, USAReference
DrivecrawlerReference
Contracting band brakesReference
Open operator station.Reference
Engine
International 11.3L 6-cyl dieselReference
Engine99.9 kWReference
Drawbar (claimed)82.8 kWReference
International D-691Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement11.3 LReference
Bore/Stroke121 x 165 mmReference
Power99.9 kWReference
Compression15.06:1Reference
Rated RPM1550Reference
Startergasoline-startReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and reverseReference
Clutchdry discReference
Dimensions
Wheelbase238 cmReference
Weight14735 kgReference
22-inch tracksReference
Gauge187 cmReference
International Harvester TD-20 Tracks
Width55 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
