Tractor · 1959Unverified

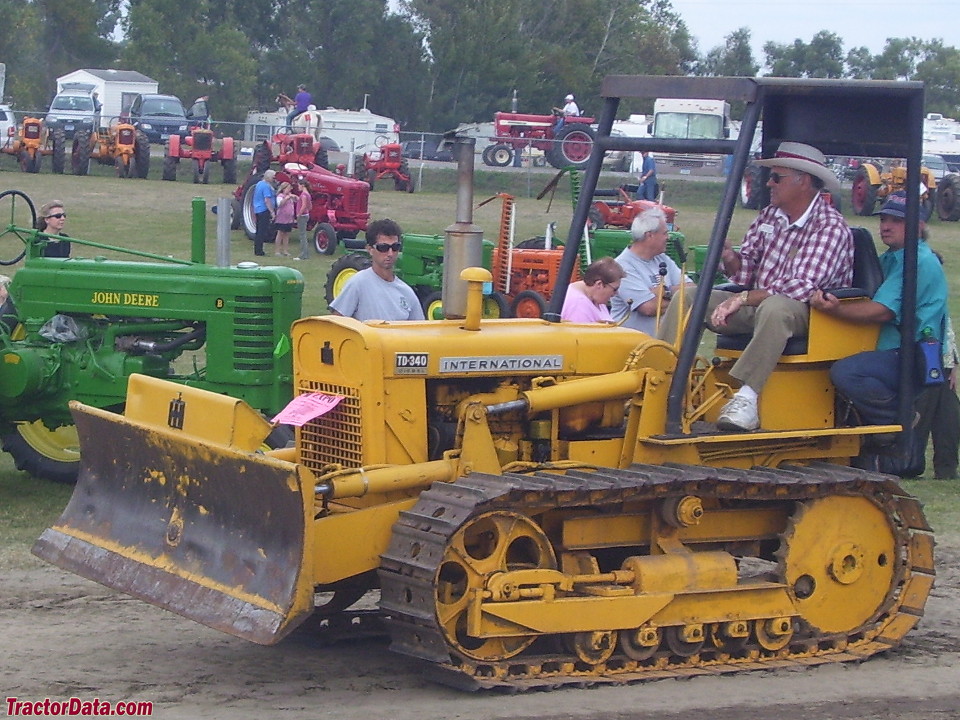

International Harvester TD-340
International Harvester TD-340 — Agricultural Crawler tractor · 40 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
40 hp
Max power
23.6 kW
Weight
3175 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Built in Melrose Park, Illinois, USAReference
DrivecrawlerReference
Open operator station.Reference
Variants
T-340gasolineReference
Engine
International Harvester 2.7L 4-cyl dieselReference
Fuel tank56.8 LReference
Drawbar (claimed)24.6 kWReference
Belt (claimed)29.8 kWReference
Drawbar (tested)23.6 kWReference
International HarvesterReference
dieselReference
4-cylinderReference
liquid-cooled vertical L-headReference
Displacement2.7 LReference
Bore/Stroke94 x 98 mmReference
Compression19.7:1Reference
Rated RPM2000Reference
Starter volts12Reference
Power at rated engine speed29.7 kWReference
Max power23.6 kWReference
Transmission
5-speed gearReference
10-speed two-speed power shiftReference
5-speed shuttleReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutchdry discReference
TransmissionTorque AmplifierReference
Typetwo-speed power shiftReference
Gears10 forward and 2 reverseReference
TypeshuttleReference
Gears5 forward and reverseReference
PTO & Hydraulics
PTO (tested)29.7 kWReference
Power at rated PTO speed27.0 kWReference
Dimensions
Weight3175 kgReference
10-inch tracksReference
Length317 cmReference
Width147 cmReference
Height153 cmReference
Operating weight3175 kgReference
Gauge96 cmReference
Gauge121 cmReference
International Harvester TD-340 attachments
bladeReference
front-end loaderReference
backhoeReference
TD-340 Serial Numbers
Location:Serial number plate on the instrument panel.Reference
1959501Reference
19601979Reference
19614344Reference
19615396 (Series A)Reference
19625449 (Series A)Reference
19636397 (Series A)Reference
19647338 (Series A)Reference
19658525 (Series A)Reference
FAQ: How to read a serial number table.Reference
Links
TD340 Webpage: site with information on the T-340 and TD-340 crawlerReference
Attachment overview
BladeReference
Front-end loaderReference
BackhoeReference
Wagner 65-T Backhoe
Backhoe typeWagner 65-T BackhoeReference
Digging depth304 cmReference
Reach from pivot381 cmReference
Loading height259 cmReference
Swing Arc180°Reference
International Harvester TD-340 Tracks
Width25 cmReference
Length on ground167 cmReference
Area on ground0.9 m²Reference
Width35 cmReference
Area on ground1.2 m²Reference
Test results
Diesel 5-speed crawlerOctober 29 - November 2, 1960Link: Nebraska Tractor Test 776 fileReference
PTO performanceReference
Fuel use11.4 l/hourReference
Fuel use10.2 l/hourReference
Drawbar performanceReference
Fuel use11.0 l/hourReference
Gear 2 used for power test.Reference
Max pull3084 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
