Tractor · 1966Unverified

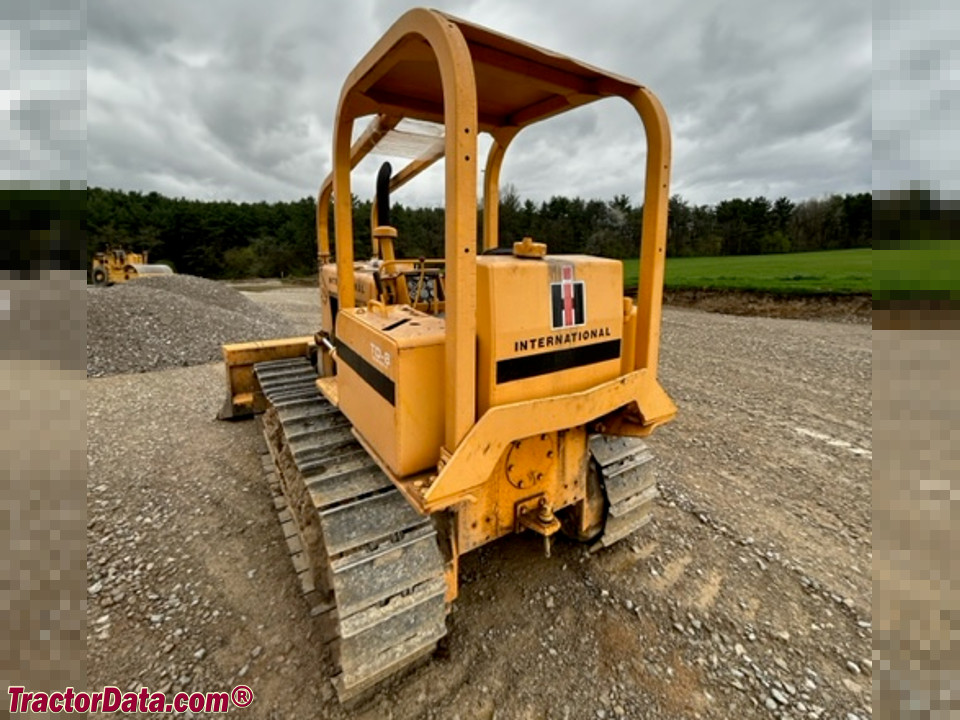

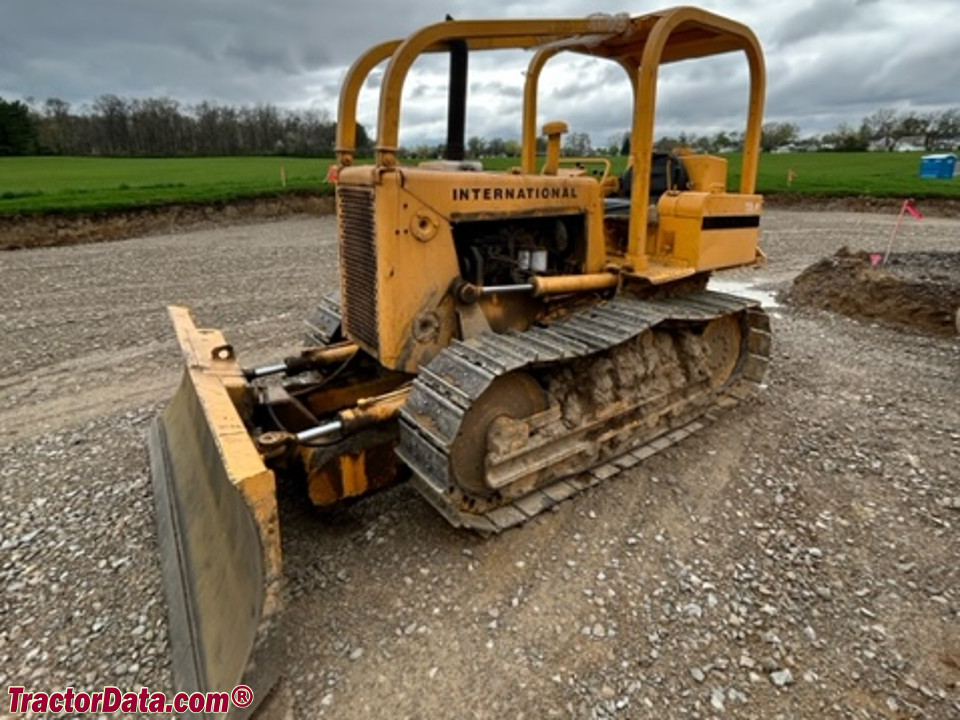

International Harvester TD-8 82 Series
International Harvester TD-8 82 Series — Agricultural Crawler tractor · 63 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
63 hp
Weight
5216 kg
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Agricultural Crawler tractorReference
Built in Doncaster, EnglandReference
Total built2432Reference
DrivecrawlerReference
Final drivesplanetaryReference
Open operator stationReference
Engine
International Harvester 4.6L 4-cyl dieselReference
Fuel tank115.8 LReference
Engine (gross)46.6 kWReference
Engine (net)43.3 kWReference
Drawbar (claimed)38.9 kWReference
Belt (claimed)41.5 kWReference
International Harvester BD-281Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke105 x 133 mmReference
Power (net)43.3 kWReference
Power (gross)46.6 kWReference
Rated RPM1600Reference
Torque298.3 NmReference
Torque RPM1200Reference
StarterelectricReference
Starter volts12Reference
Oil capacity9.1 LReference
Coolant capacity24.4 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutch330mm dry discReference
Oil capacity13.6 LReference
Dimensions
Weight5216 kgReference
14-inch tracksReference
Length294 cmReference
Width172 cmReference
Height171 cmReference
Operating weight5216 kgReference
Ground clearance21 cmReference
Gauge137 cmReference
TD-8 Serial Numbers
19663794Reference
19674127Reference
19684404Reference
19694752Reference
19705011Reference
19715290Reference
19725386Reference
19735540Reference
19745850Reference
19756130Reference
Final6226Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemgeneratorReference
International Harvester TD-8 Tracks
Width35 cmReference
Length on ground161 cmReference
Area on ground1.1 m²Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
