Tractor · 1914Unverified

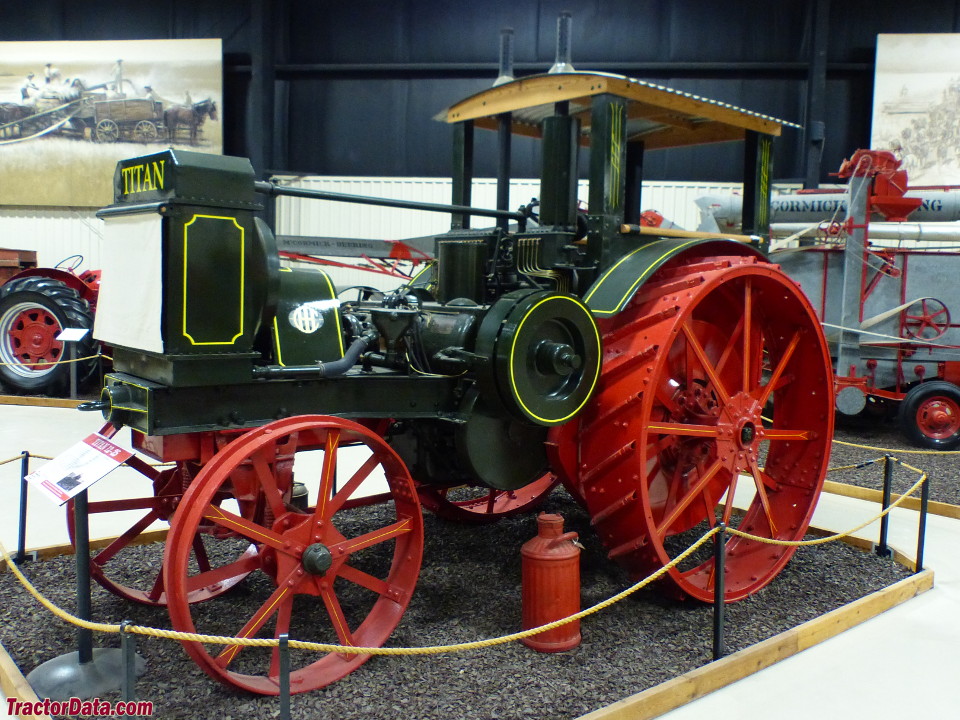

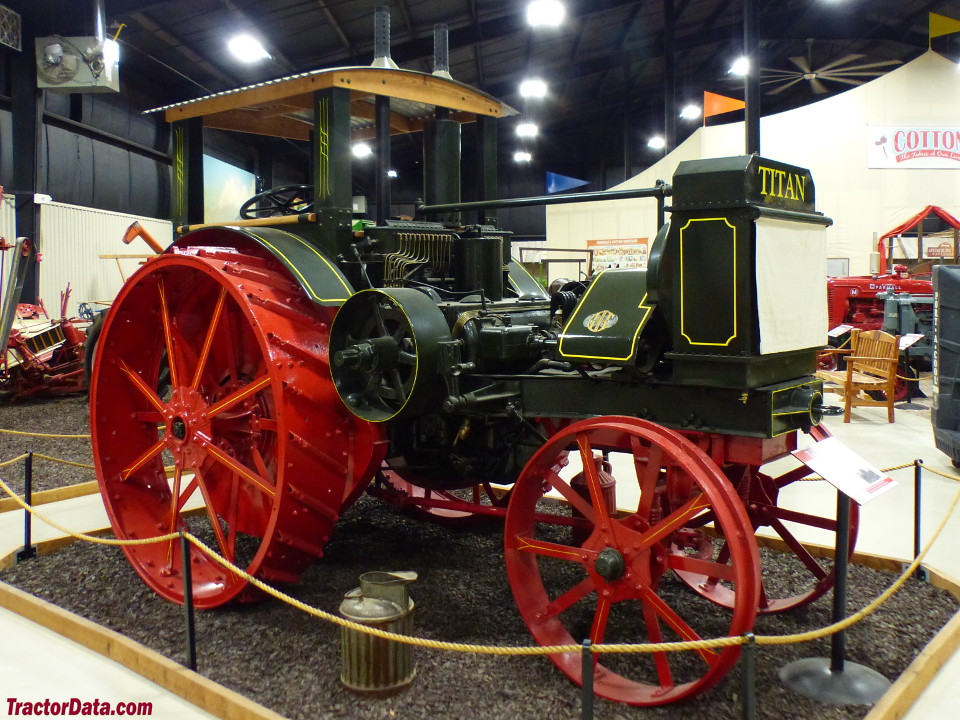

International Harvester Titan 12-25
International Harvester Titan 12-25 — Titan Series · 12 hp. Reference specifications; pending source verification.
The International Harvester Titan 12-25 is a tractor with an approximate power rating of 12 hp, categorising it as a lightweight model in its class. The Titan 12-25 was manufactured from 1914 to 1917. Key features include a 4-cylinder liquid-cooled engine and two-wheel drive with a 2-speed gearbox. This tractor has an operating weight of 4345 kg and is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
4345 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
12 hp
Recorded weight
4345 kg
Transmissions
2-speed gear
Production years
1914-1917
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Milwaukee, Wisconsin, USAReference
Two-wheel driveReference
Open station with steel canopy.Reference
Engine
International Harvester 11.4L 4-cyl keroseneReference
Fuel tank113.6 LReference
Aux. fuel22.7 LReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)18.6 kWReference
International HarvesterReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement11.4 LReference
Bore/Stroke133 x 203 mmReference
Rated RPM575Reference
Transmission
2-speed gearReference
TypegearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight4345 kgReference
Front tire40x7Reference
Rear tire60x14Reference
Ag front40x7 (steel)Reference
Ag rear60x14 (steel)Reference
Length356 cmReference
Width217 cmReference
Height292 cmReference
Titan 12-25 Serial Numbers
1914TS101Reference
1915TS114Reference
1916TS310Reference
1917TS821Reference
FinalTS880Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter55 cmReference
Width20 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
