Tractor · 1914Unverified

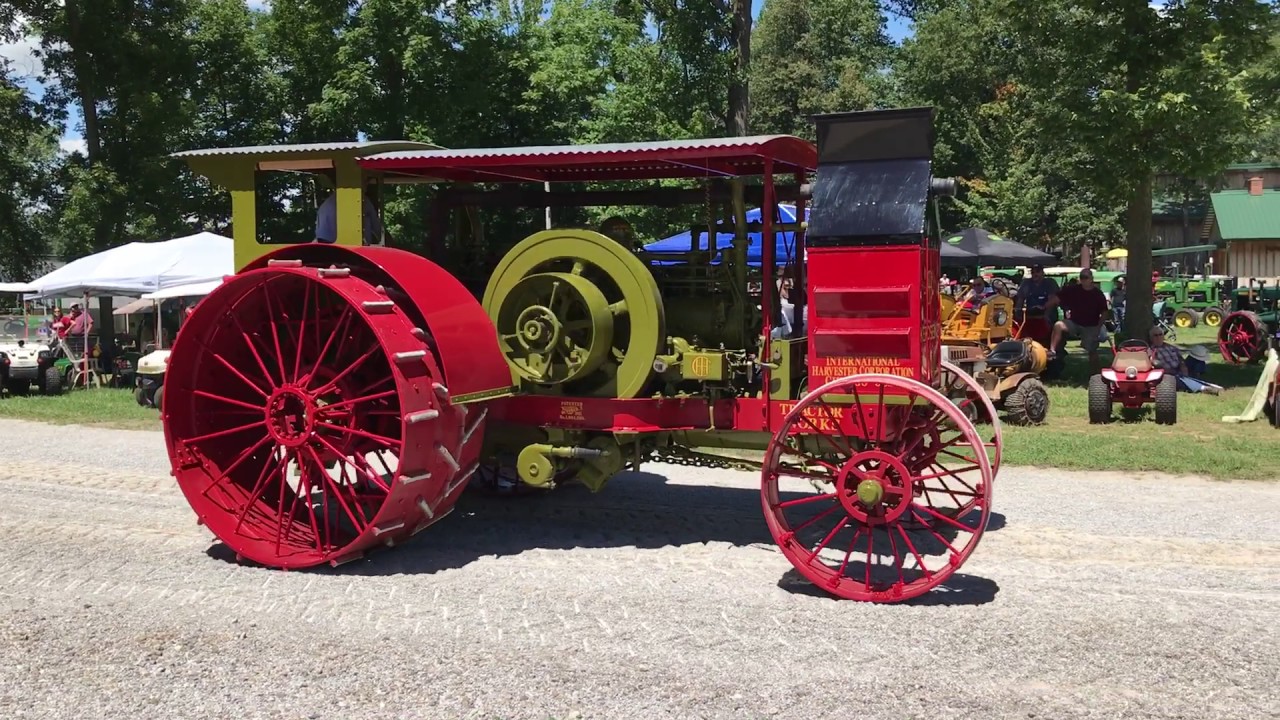

International Harvester Titan 30-60
International Harvester Titan 30-60 — Titan Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
20300 to 20600 pounds
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Milwaukee, Wisconsin, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station with canopy.Reference
Engine
International Harvester 29.2L 2-cyl keroseneReference
Fuel tank177.9 LReference
Aux. fuel100.3 LReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
International HarvesterReference
keroseneReference
2-cylinderReference
liquid-cooledReference
Displacement29.2 LReference
Bore/Stroke229 x 356 mmReference
Rated RPM335Reference
Starter typecompressed air (early)Reference
Starter typegas pony motor (late)Reference
Transmission
1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
Dimensions
Weight20300 to 20600 poundsReference
Front tire44x10Reference
Rear tire72x24Reference
Ag front44x10 (steel)Reference
Ag rear72x24 (steel)Reference
Length487 cmReference
Width266 cmReference
Height279 cmReference
Shipping weight9208 kgReference
Operating weight9344 kgReference
Titan 30-60 Serial Numbers
1914TJ101Reference
1914TK101Reference
1915TK111Reference
1915TU101Reference
1916TU134Reference
1917TU225Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter76 cmReference
Width26 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
