Tractor · 1910Unverified

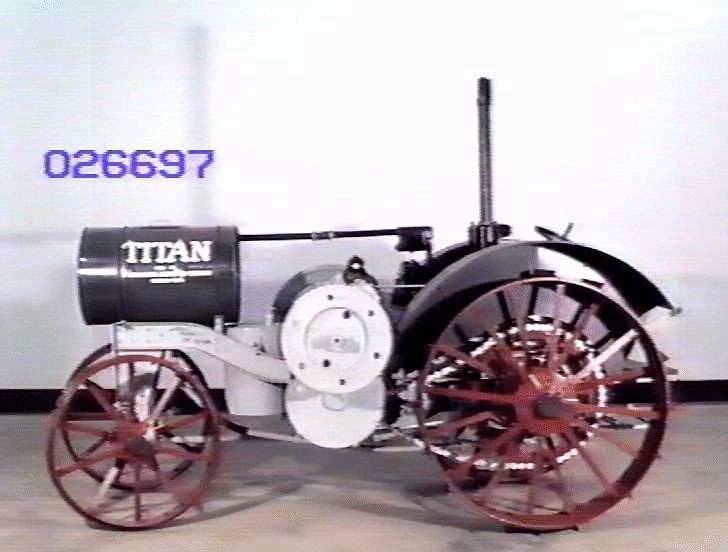

International Harvester Titan D 20HP
International Harvester Titan D 20HP — Titan Series · 20 hp. Reference specifications; pending source verification.
The International Harvester Titan D 20HP is a tractor with a rated power of 20 hp, positioning it at the lighter end of its class. Built from 1910 to 1914, it features a 1-cylinder liquid-cooled engine and two-wheel drive with a 1-speed gearbox. The operating weight of this tractor is listed as 13,900 to 14,200 pounds. It is suitable for operations spanning up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
13900 to 14200 pounds
Catalogue coverage
Variants represented
2
Richest spec table
40 rows
Recorded power
20 hp
Recorded weight
6305 kg
Transmissions
1-speed gear
Production years
1910-1914
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Milwaukee, Wisconsin, USAReference
Two-wheel driveReference
Final drivesbull gearReference
Manual steeringReference
Open operator station with canopy.Reference
Engine
International Harvester 14.8L 1-cyl keroseneReference
Fuel tank94.6 LReference
Belt (claimed)14.9 kWReference
International HarvesterReference
keroseneReference
1-cylinderReference
liquid-cooledReference
Displacement14.8 LReference
Bore/Stroke222 x 381 mmReference
Cooling systemevaporative towerReference
Rated RPM290Reference
Idle RPM240-290Reference
Coolant capacity340.7 LReference
Transmission
1-speed gearReference
TypegearReference
Gears1 forward and reverseReference
Dimensions
Weight13900 to 14200 poundsReference
Rear tire70x20Reference
Ag rear70x20 (steel)Reference
Width220 cmReference
Shipping weight6305 kgReference
Operating weight6441 kgReference
Rear axle95 mmReference
Titan D 20HP Serial Numbers
1910TD101Reference
1911TD118Reference
1912TD209Reference
1913TD339Reference
1914TD367Reference
FinalTD374Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter91 cmReference
Width26 cmReference
RPM290Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
