Tractor · 1910Unverified

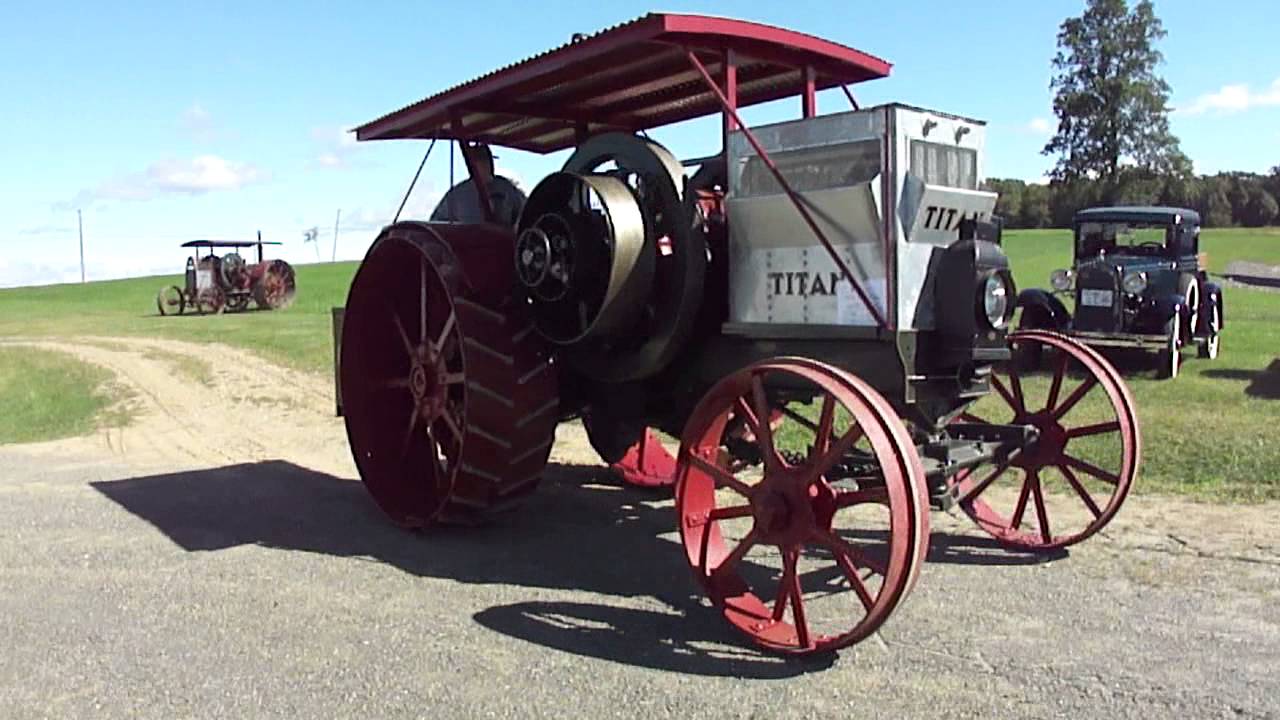

International Harvester Titan D 25HP

Name: International Harvester Titan D 25HP
Brand: International Harvester

International Harvester Titan D 25HP — Titan Series · 25 hp. Reference specifications; pending source verification.

The International Harvester Titan D 25HP is a tractor rated at 25 hp, positioned at the lighter end of its class. It was produced from 1910 to 1914, featuring a 1-cylinder liquid-cooled engine and two-wheel drive with a 1-speed gearbox. The operating weight is listed as 16,600 to 16,850 pounds, and it is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

16600 to 16850 pounds

Catalogue coverage

Variants represented

Richest spec table

40 rows

Recorded power

25 hp

Recorded weight

7529 kg

Transmissions

1-speed gear

Production years

1910-1914

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerInternational HarvesterReference

Standard-tread tractorReference

Built in Milwaukee, Wisconsin, USAReference

Two-wheel driveReference

Final drivesbull gearReference

Manual steeringReference

Open operator station with canopy.Reference

Engine

International Harvester 19.3L 1-cyl keroseneReference

Fuel tank141.9 LReference

Belt (claimed)18.6 kWReference

International HarvesterReference

keroseneReference

1-cylinderReference

liquid-cooledReference

Displacement19.3 LReference

Bore/Stroke254 x 381 mmReference

Cooling systemevaporative towerReference

Rated RPM290Reference

Idle RPM240-290Reference

Coolant capacity359.6 LReference

Transmission

1-speed gearReference

TypegearReference

Gears1 forward and reverseReference

Dimensions

Weight16600 to 16850 poundsReference

Rear tire70x22Reference

Ag rear70x22 (steel)Reference

Width243 cmReference

Shipping weight7529 kgReference

Operating weight7643 kgReference

Rear axle101 mmReference

Titan D 25HP Serial Numbers

1910TM101Reference

1911TM153Reference

1912TM1160Reference

1913TM1702Reference

1914TM1776Reference

FinalTM1857Reference

FAQ: How to read a serial number table.Reference

Capacities

Diameter91 cmReference

Width26 cmReference

RPM290Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
