Tractor · 1909Unverified

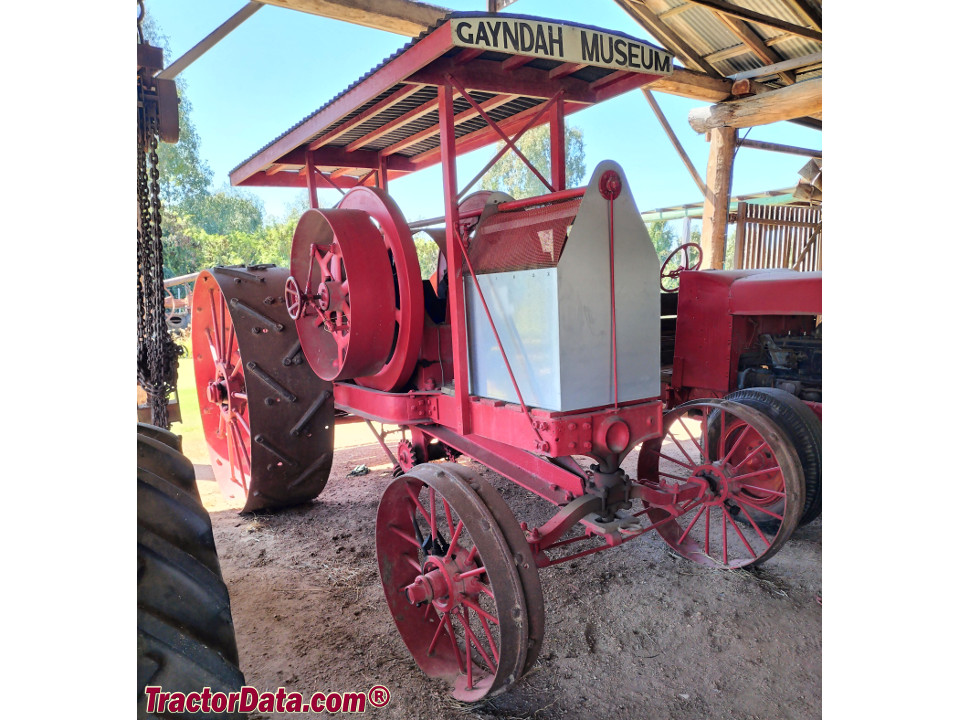

International Harvester Type C 20HP
International Harvester Type C 20HP — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.
The International Harvester Type C 20HP is a 20 hp tractor model that falls into the lighter end of its class in terms of power output. It was manufactured in 1909 with a 1-cylinder petrol liquid-cooled engine. The tractor features two-wheel drive and a 1-speed gearbox, and it has an operating weight of 6123 kg. It is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Weight
6123 kg
Catalogue coverage
Variants represented
2
Richest spec table
25 rows
Recorded power
20 hp
Recorded weight
6123 kg
Transmissions
1-speed
Production years
1909-1909
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerInternational HarvesterReference
Standard-tread tractorReference
Built in Upper Sandusky, Ohio, USAReference
Two-wheel driveReference
Manual steeringReference
Open station with steel canopy.Reference
Engine
International Harvester 14.8L 1-cyl gasolineReference
Fuel tank94.6 LReference
Belt (claimed)14.9 kWReference
Plows4Reference
International Harvester FamousReference
gasolineReference
1-cylinderReference
liquid-cooledReference
Displacement14.8 LReference
Bore/Stroke222 x 381 mmReference
Rated RPM290Reference
Operating RPM240-290Reference
Coolant capacity219.6 LReference
Transmission
1-speedReference
Gears1 forward and reverseReference
The International Type C used a friction reverse.Reference
Dimensions
Weight6123 kgReference
Rear tire70x20Reference
Ag rear70x20 (steel)Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
