Tractor · 1916Unverified

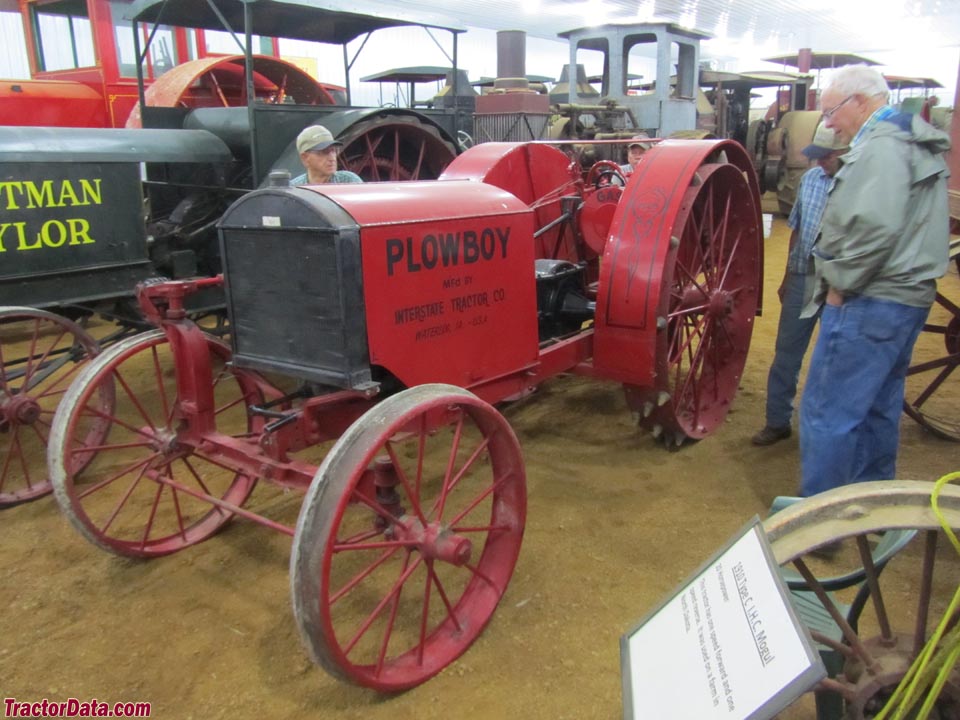

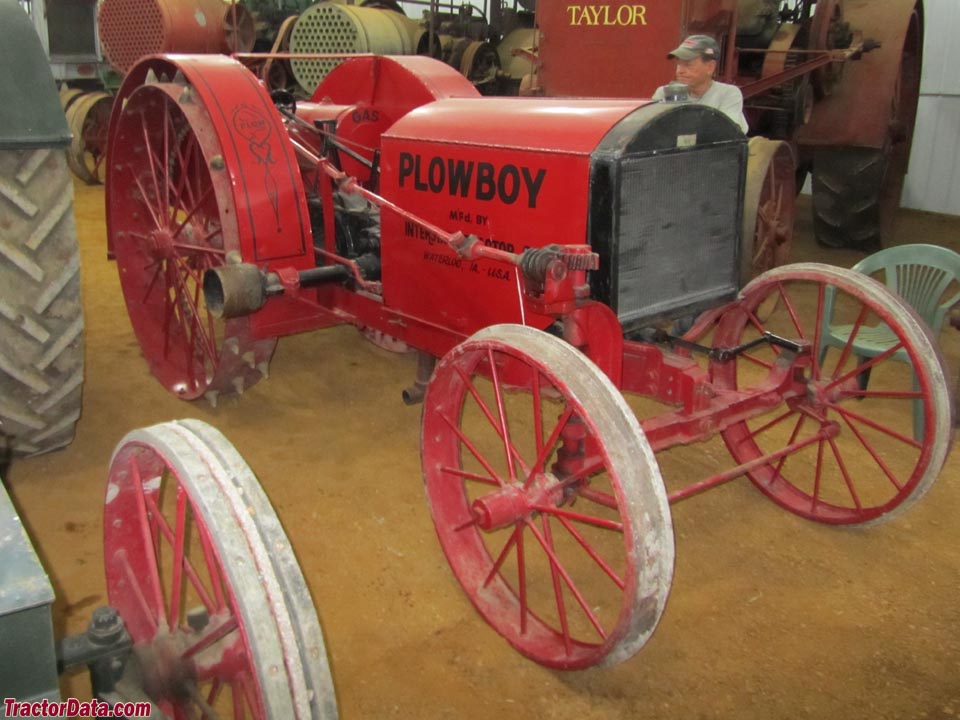

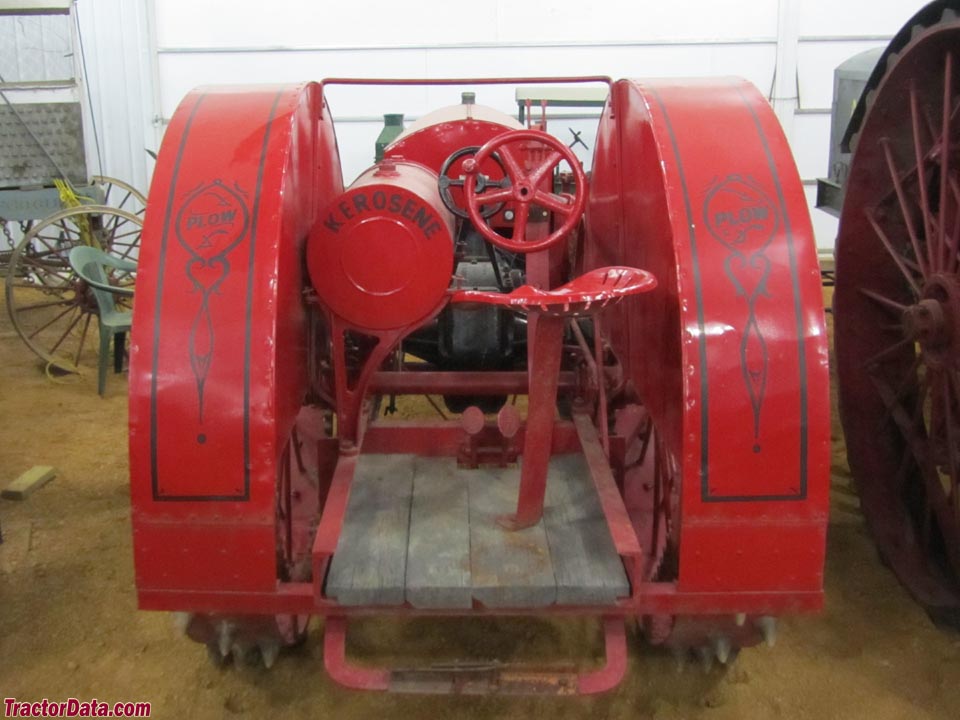

Interstate Tractor Plow Boy 10-20
Interstate Tractor Plow Boy 10-20 — Standard-tread tractor · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
1723 kg
Hover a source tag to verify
Overview
ManufacturerInterstate TractorReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Original price was $875L1917Reference
Two-wheel driveReference
Final drivesroller pinionReference
SteeringmanualReference
Open operator stationReference
Engine
Waukesha 4-cyl keroseneReference
Fuel tank64.3 LReference
Aux. fuel11.4 LReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)14.9 kWReference
Plows2 (14-inch)Reference
WaukeshaReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Bore/Stroke89 x 0 mmReference
Fuel systemKingston carburetorReference
Rated RPM1200Reference
Starter typehand-crankReference
Transmission
2-speed gearReference
TypegearReference
Gears2 forwardReference
Dimensions
Weight1723 kgReference
Rear tire60x10Reference
Ag rear60x10 steelReference
Length396 cmReference
Width177 cmReference
Height177 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
