Tractor · 1916Unverified

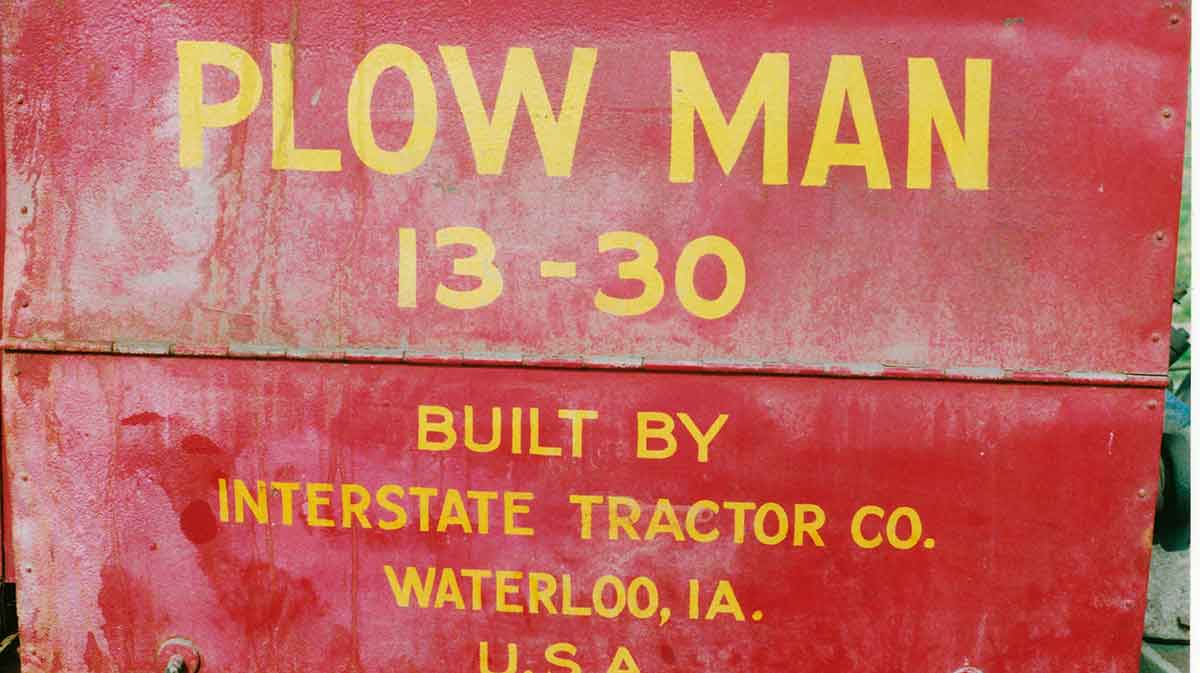

Interstate Tractor Plow Man 13-30

Interstate Tractor Plow Man 13-30 — Standard-tread tractor · 13 hp. Reference specifications; pending source verification.

The Interstate Tractor Plow Man 13-30 is a compact tractor model, rated at 13 horsepower. Manufactured from 1916 to 1920, this model features a 4-cylinder liquid-cooled engine, paired with a 2-speed gearbox and two-wheel drive. Its listed weight is 1723 kilograms, with an intended capacity for jobs covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
13 hp
Weight
1723 kg

Catalogue coverage

Variants represented
2
Richest spec table
31 rows
Recorded power
13 hp
Recorded weight
1723 kg
Transmissions
2-speed gear
Production years
1916-1920
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerInterstate TractorReference
Standard-tread tractorReference
Built in Waterloo, Iowa, USAReference
Two-wheel driveReference
Final drivesroller pinionReference
SteeringmanualReference
Open operator station.Reference

Engine

Buda 5.7L 4-cyl keroseneReference
Fuel tank64.3 LReference
Aux. fuel11.4 LReference
Drawbar (claimed)9.7 kWReference
Belt (claimed)22.4 kWReference
Plows3 (14-inch)Reference
BudaReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement5.7 LReference
Bore/Stroke114 x 140 mmReference
Fuel systemKingston carburetorReference
Rated RPM900Reference
Starter typehand-crankReference

Transmission

2-speed gearReference
TypegearReference
Gears2 forwardReference

Dimensions

Weight1723 kgReference
Rear tire60x10Reference
Ag rear60x10 steelReference
Length396 cmReference
Width177 cmReference
Height177 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
