Tractor · 2004Unverified

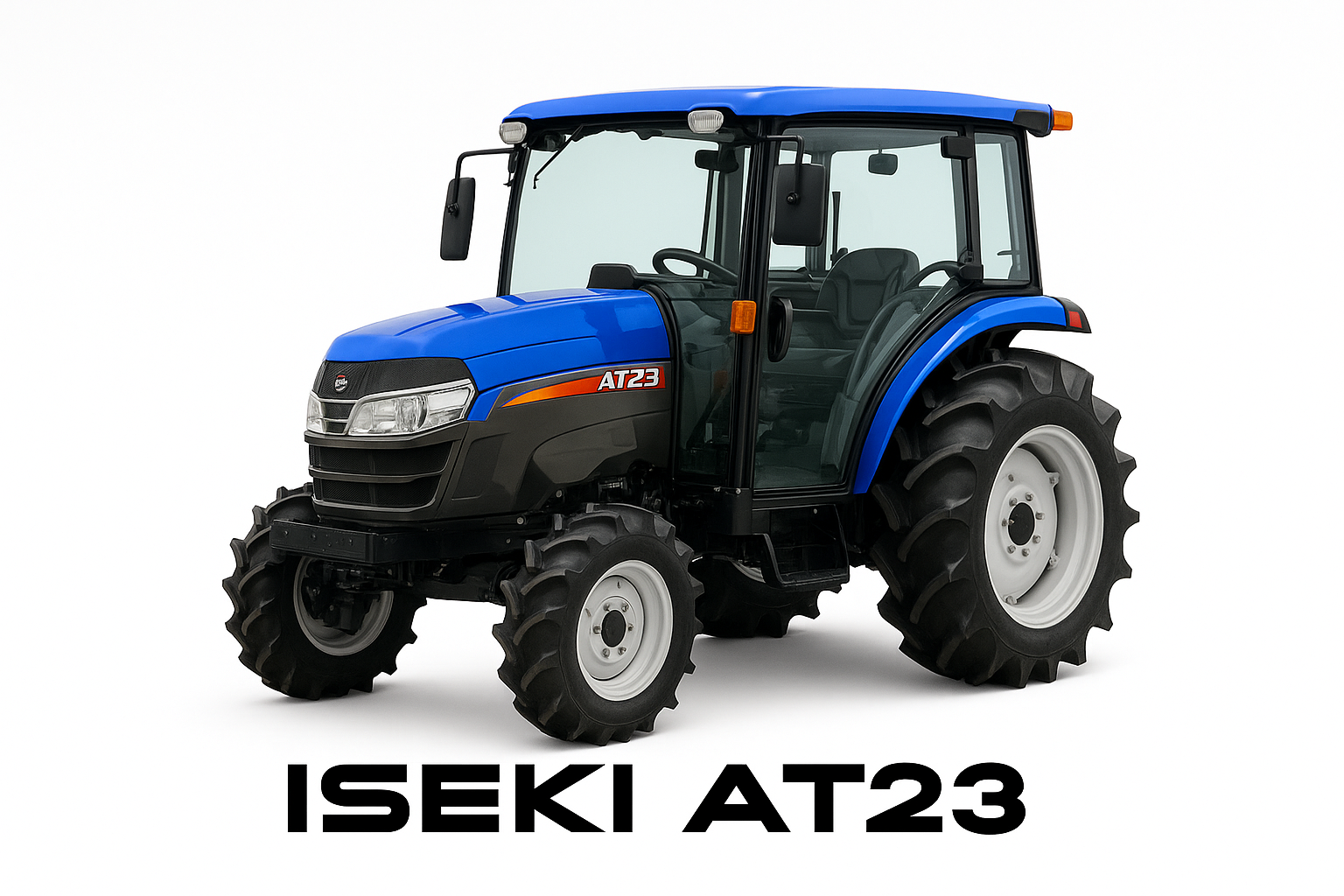

Iseki AT23
Iseki AT23 — AT Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2844 to 3097 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine16.9 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power16.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM569@2500Reference
Engine RPM765@2500Reference
Engine RPM942@2500Reference
Engine RPM1227@2500Reference
Engine RPM-765@2500Reference
Dimensions
Wheelbase163 cmReference
Weight2844 to 3097 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length300 cmReference
Width126 cmReference
Height (ROPS)197 cmReference
Height (cab)197 cmReference
ROPS Weight1290 kgReference
Cab Weight1404 kgReference
Ground clearance32 cmReference
Front tread96 cmReference
Rear tread101 to 117 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
