Tractor · 2004Unverified

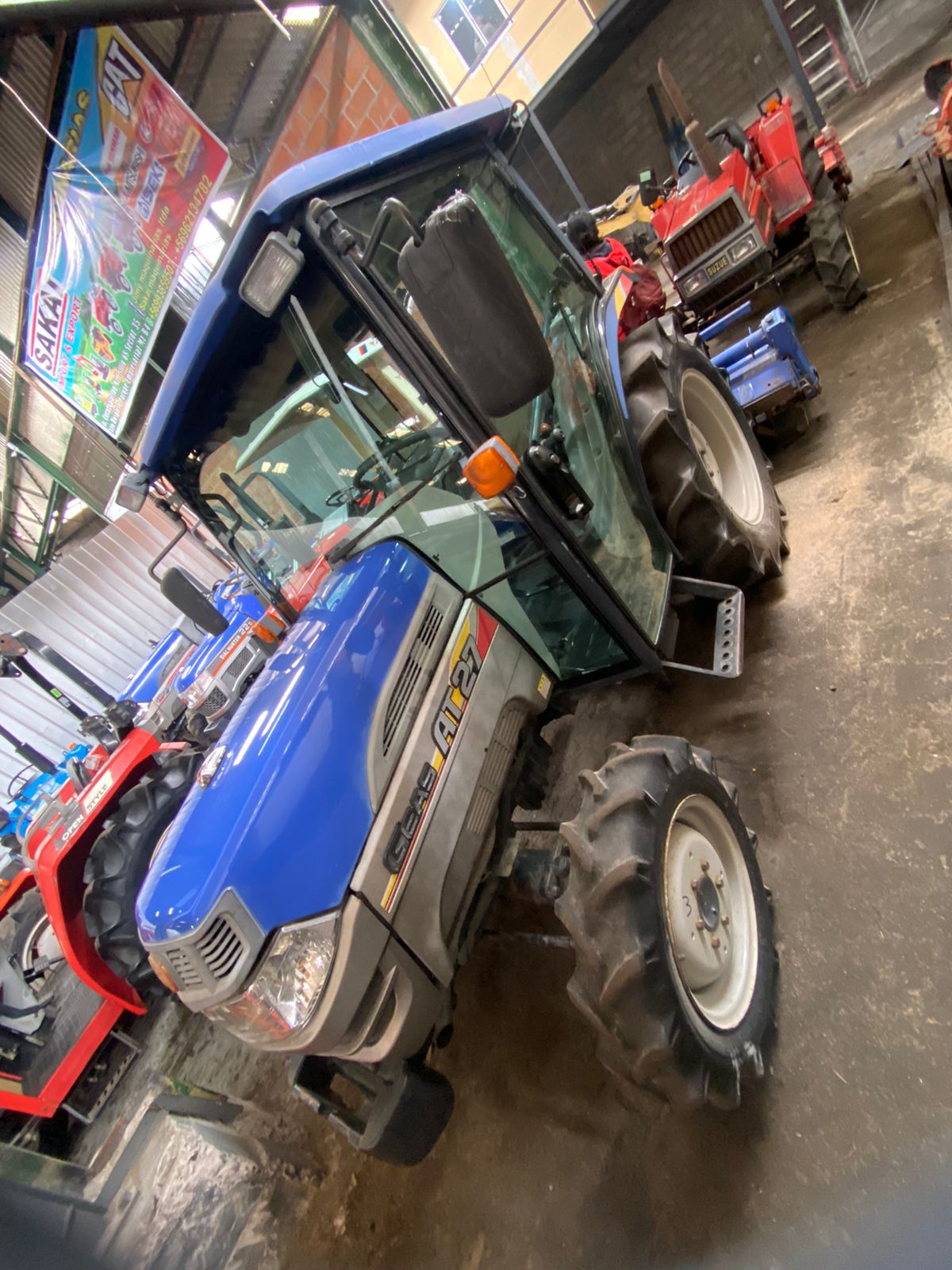

Iseki AT27
Iseki AT27 — AT Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2954 to 3208 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine19.9 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power19.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
Gears24 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM569@2500Reference
Engine RPM765@2500Reference
Engine RPM942@2500Reference
Engine RPM1227@2500Reference
Engine RPM-765@2500Reference
Dimensions
Wheelbase167 cmReference
Weight2954 to 3208 poundsReference
Front tire7-16Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length304 cmReference
Width136 cmReference
Height (ROPS)198 cmReference
Height (cab)198 cmReference
ROPS Weight1339 kgReference
Cab Weight1455 kgReference
Ground clearance37 cmReference
Front tread108 cmReference
Rear tread104 to 137 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
