Tractor · 2004Unverified

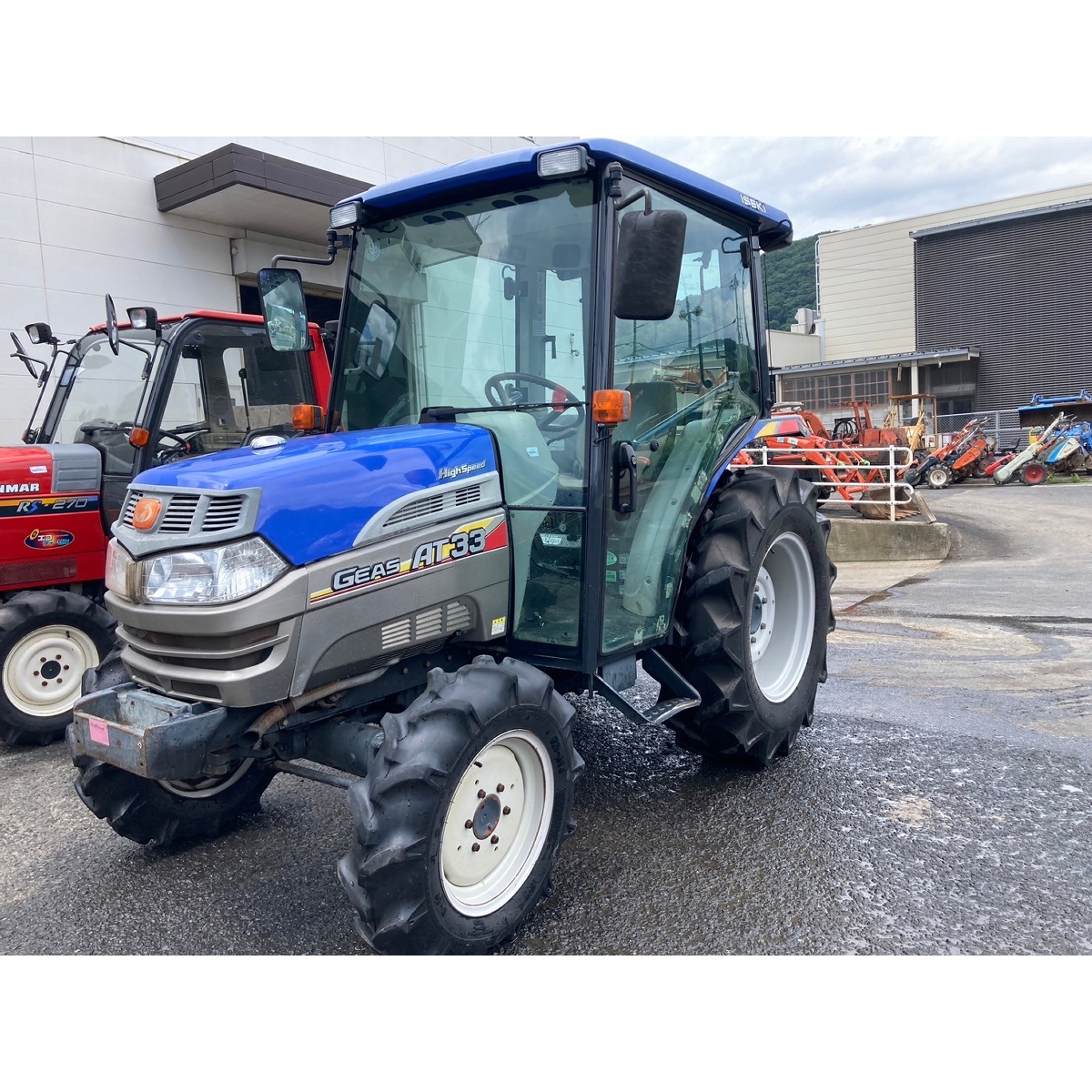

Iseki AT33

Name: Iseki AT33
Brand: Iseki

Iseki AT33 — AT Series · 33 hp. Reference specifications; pending source verification.

The Iseki AT33 is a compact tractor model with a rated output of 33 hp. It was manufactured from 2004 to 2009 and features a 3-cylinder diesel liquid-cooled engine, driving through a four-wheel drive system with a 16-speed gearbox. The listed weight of the Iseki AT33 ranges from 3075 to 3329 pounds. It is designed for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

33 hp

Weight

3075 to 3329 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

33 hp

Recorded weight

1394 kg

Transmissions

16-speed

Production years

2004-2009

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post ROPS. Cab optional.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank35.0 LReference

Engine24.3 kWReference

Iseki E3CDReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke87 x 84 mmReference

Power24.3 kWReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

24-speedReference

Gears16 forward and reverseReference

Clutchdry discReference

Gears24 forward and reverseReference

PTO & Hydraulics

Rear TypeIReference

Rear PTO Type540 (1.375)Reference

Engine RPM588@2800Reference

Engine RPM790@2800Reference

Engine RPM974@2800Reference

Engine RPM1268@2800Reference

Engine RPM-790@2800Reference

Dimensions

Wheelbase172 cmReference

Weight3075 to 3329 poundsReference

Front tire8-16Reference

Rear tire13.6-24Reference

Standard tires (ag)Front: 8-16. Rear: 13.6-24Reference

Length309 cmReference

Width145 cmReference

Height (ROPS)199 cmReference

Height (cab)199 cmReference

ROPS Weight1394 kgReference

Cab Weight1510 kgReference

Ground clearance38 cmReference

Front tread115 cmReference

Rear tread109 to 141 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
