Tractor · 2010Unverified
Iseki AT340
Iseki AT340 — AT Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
3042 to 3362 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional with air-conditioning.Reference
Variants
AT340wheeledReference

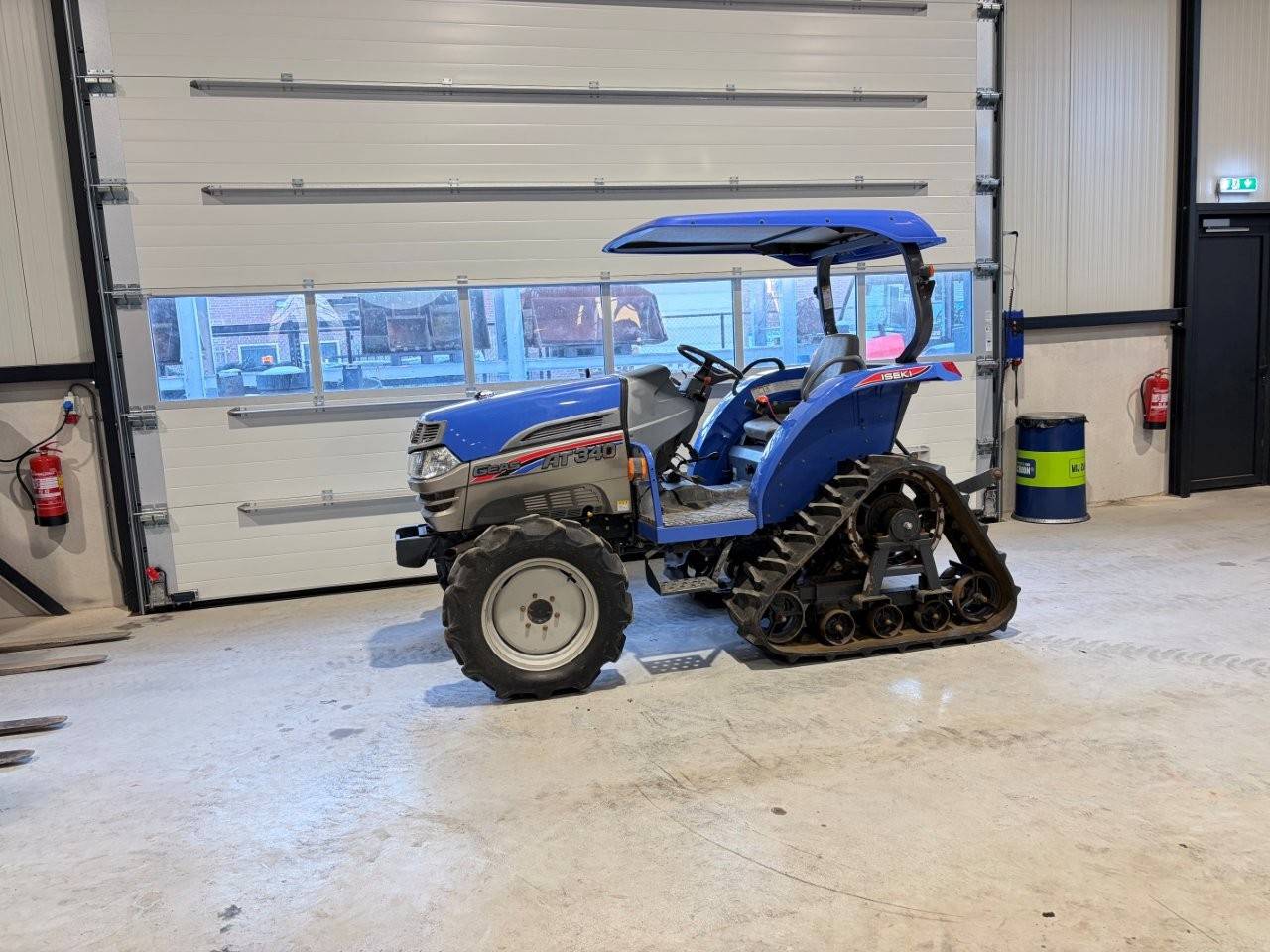

AT340Chalf-trackReference
Engine
Iseki 1.6L 3-cyl dieselReference
Fuel tank35.0 LReference
Engine25.0 kWReference
Iseki E3CGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power25.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Clutchdry discReference
Gears24 forward and reverseReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM592@2600Reference
Engine RPM795@2600Reference
Engine RPM980@2600Reference
Engine RPM1276@2600Reference
Engine RPM-795@2600Reference
Dimensions
Wheelbase172 cmReference
Weight3042 to 3362 poundsReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length310 cmReference
Width141 cmReference
Height (ROPS)205 cmReference
Height (cab)199 cmReference
ROPS Weight1379 kgReference
Cab Weight1525 kgReference
Ground clearance37 cmReference
Front tread115 cmReference
Rear tread109 to 141 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
