Tractor · 2010Unverified

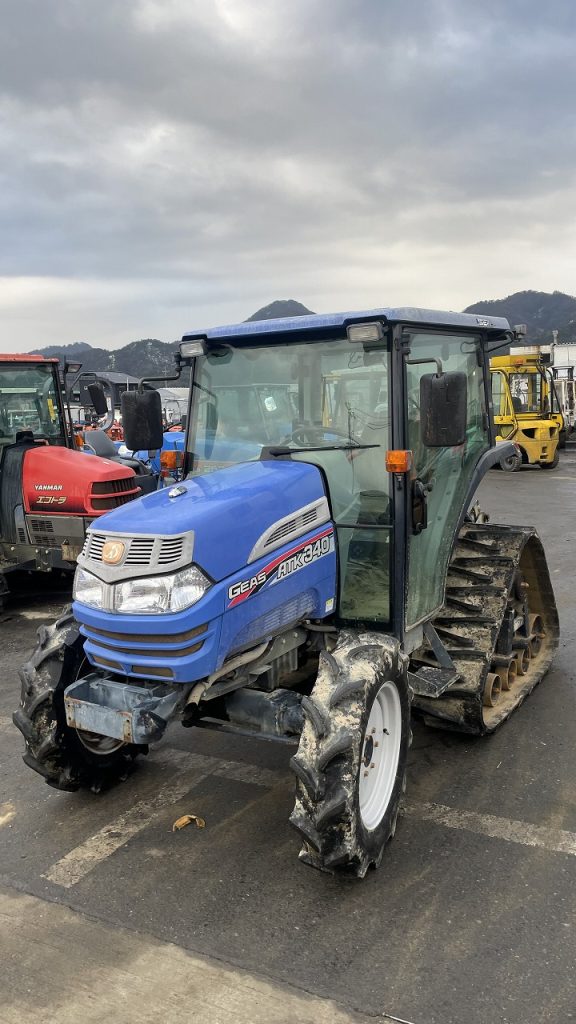

Iseki AT340 Semi-Crawler
Iseki AT340 Semi-Crawler — AT Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1920 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
AT340wheeledReference
AT340Chalf-trackReference
Engine
Iseki 1.6L 3-cyl dieselReference
Fuel tank45.0 LReference
Engine25.0 kWReference
Iseki E3CGReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.6 LReference
Bore/Stroke87 x 92 mmReference
Power25.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM592@2600Reference
Engine RPM795@2600Reference
Engine RPM980@2600Reference
Engine RPM1276@2600Reference
Engine RPM-795@2600Reference
Dimensions
Wheelbase172 cmReference
Weight1920 kgReference
Front tire8-18Reference
Rear tiretracksReference
Ag front8-18Reference
Ag reartracksReference
Length312 cmReference
Width156 cmReference
Height (cab)200 cmReference
Ground clearance39 cmReference
Front tread125 cmReference
Rear tread117 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
