Tractor · 2004Unverified

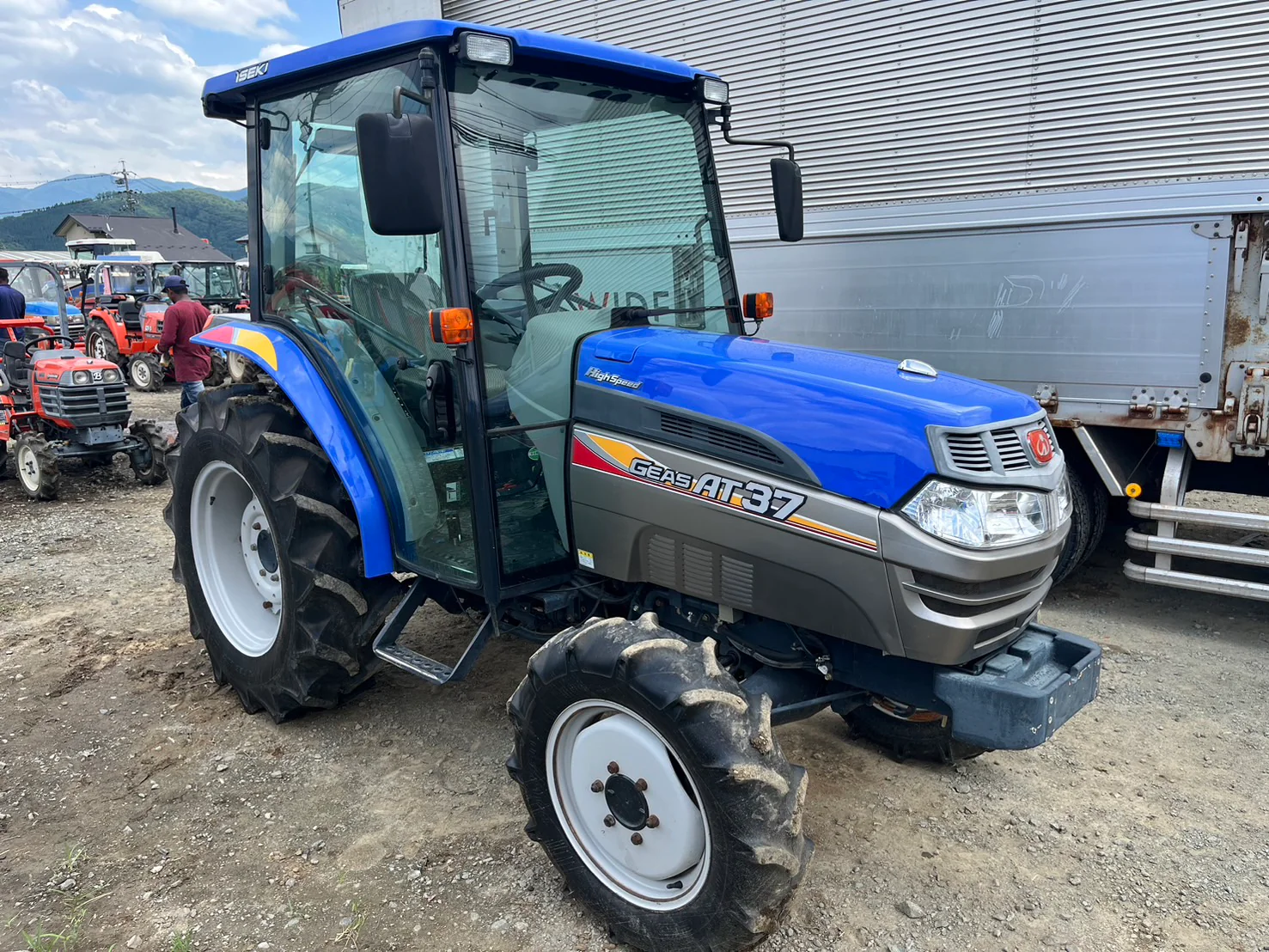

Iseki AT37
Iseki AT37 — AT Series · 37 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
37 hp
Weight
3660 to 4012 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 2.2L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine27.2 kWReference
Iseki E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power27.2 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM586@2500Reference
Engine RPM787@2500Reference
Engine RPM970@2500Reference
Engine RPM1263@2500Reference
Engine RPM-787@2500Reference
Dimensions
Wheelbase193 cmReference
Weight3660 to 4012 poundsReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length352 cmReference
Width151 cmReference
Height (ROPS)225 cmReference
Height (cab)252 cmReference
ROPS Weight1660 kgReference
Cab Weight1819 kgReference
Ground clearance35 cmReference
Front tread124 cmReference
Rear tread114 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
