Tractor · 2010Unverified

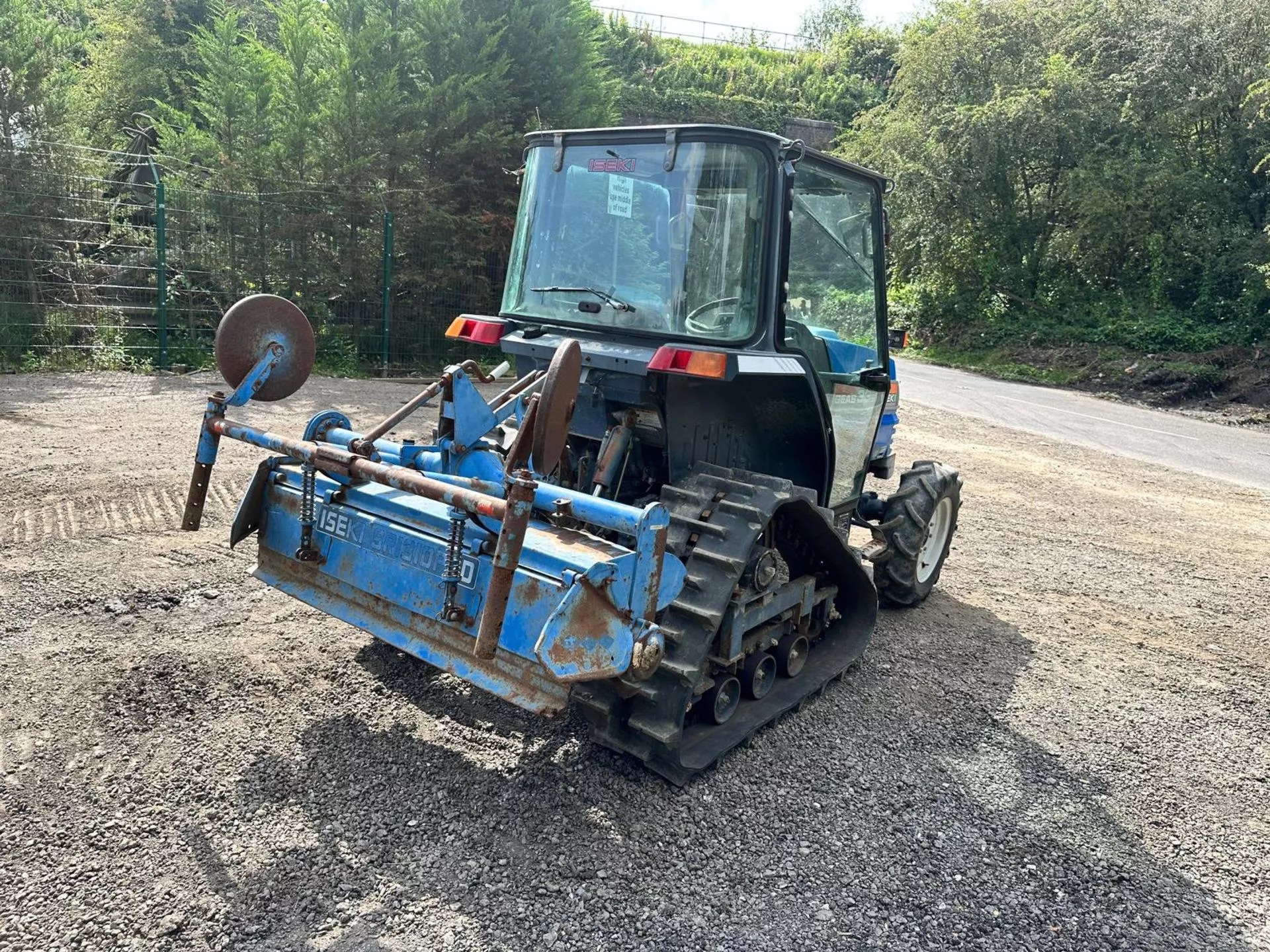

Iseki AT410 Semi-Crawler
Iseki AT410 Semi-Crawler — AT Series · 41 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
41 hp
Weight
2269 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
AT410wheeledReference
AT410Chalf-trackReference
Engine
Iseki 2.2L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine30.9 kWReference
Iseki E4CGReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.2 LReference
Bore/Stroke87 x 92 mmReference
Power30.9 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM586@2500Reference
Engine RPM787@2500Reference
Engine RPM970@2500Reference
Engine RPM1263@2500Reference
Engine RPM-787@2500Reference
Dimensions
Wheelbase193 cmReference
Weight2269 kgReference
Front tire8.3-20Reference
Rear tiretracksReference
Ag front8.3-20Reference
Ag reartracksReference
Length355 cmReference
Width168 cmReference
Height (cab)230 cmReference
Ground clearance39 cmReference
Front tread125 cmReference
Rear tread114/128 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
