Tractor · 2004Unverified

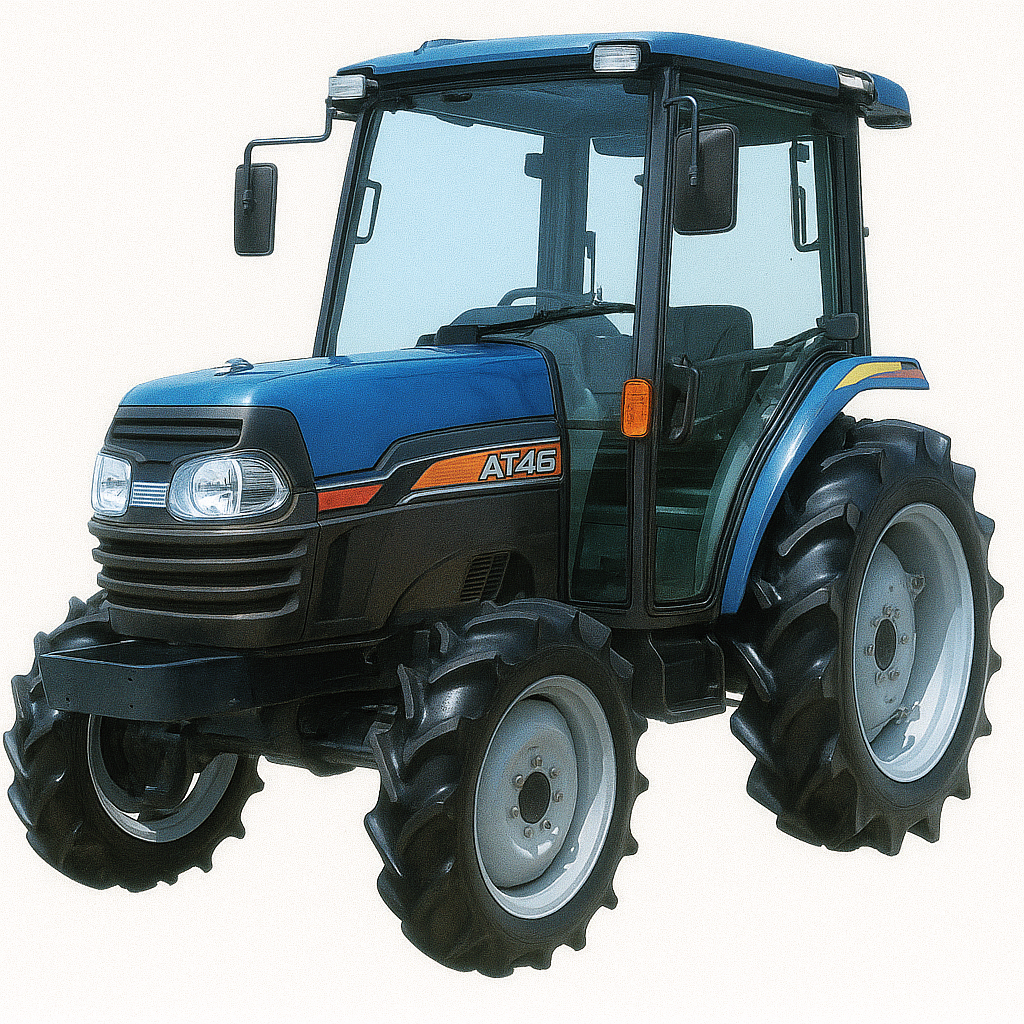

Iseki AT46
Iseki AT46 — AT Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
3814 to 4167 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post ROPS. Cab optional.Reference
Engine
Iseki 3.0L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine33.8 kWReference
Iseki E4DEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power33.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM586@2500Reference
Engine RPM787@2500Reference
Engine RPM970@2500Reference
Engine RPM1263@2500Reference
Engine RPM-787@2500Reference
Dimensions
Wheelbase197 cmReference
Weight3814 to 4167 poundsReference
Front tire8.3-20Reference
Rear tire13.6-28Reference
Standard tires (ag)Front: 8.3-20. Rear: 13.6-28Reference
Length352 cmReference
Width155 cmReference
Height (ROPS)228 cmReference
Height (cab)255 cmReference
ROPS Weight1730 kgReference
Cab Weight1890 kgReference
Ground clearance38 cmReference
Front tread124 cmReference
Rear tread114 to 153 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
