Tractor · 2010Unverified

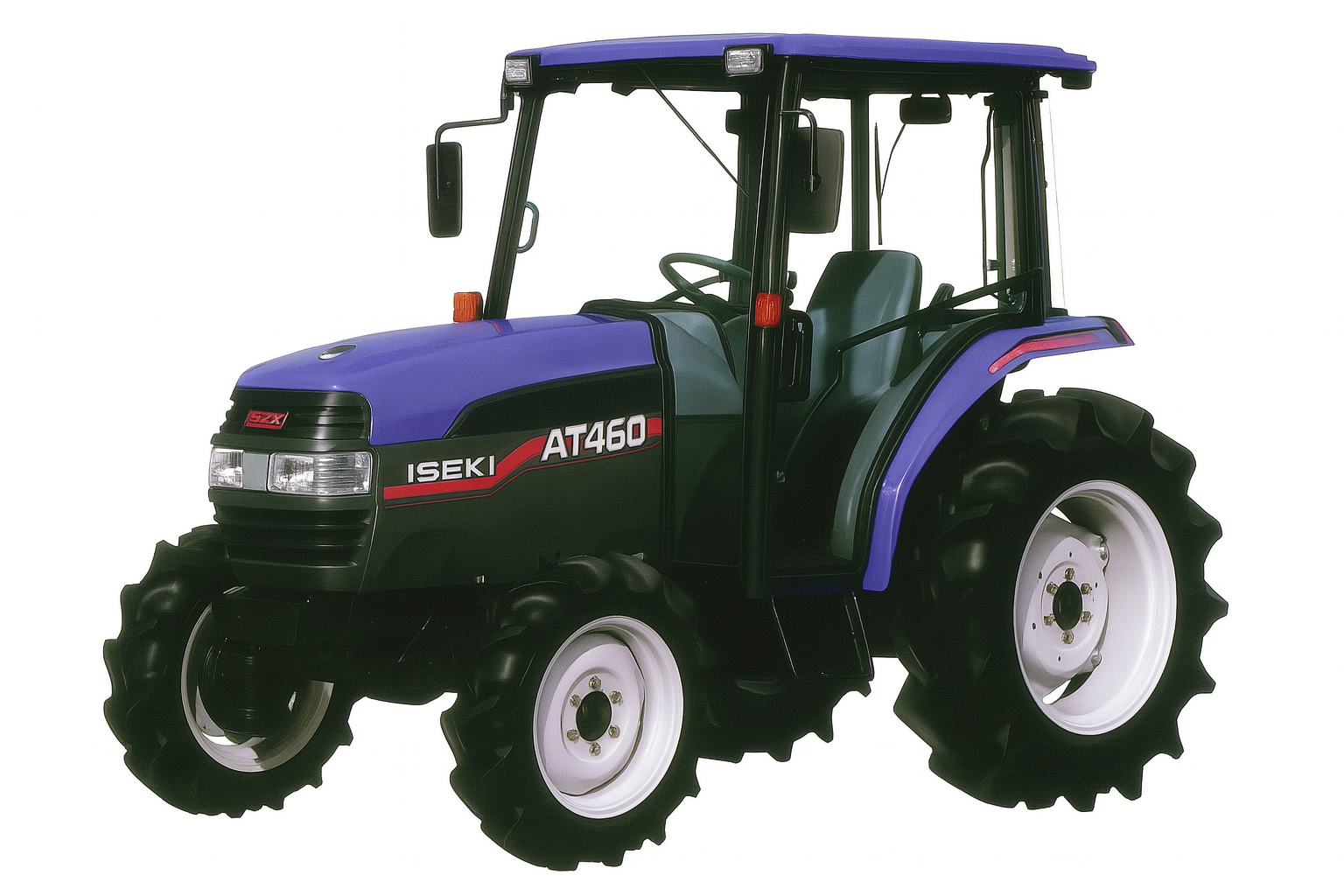

Iseki AT460 Semi-Crawler
Iseki AT460 Semi-Crawler — AT Series · 45 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
45 hp
Weight
2295 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Half-track Crawler tractorReference
Drivehalf-trackReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
AT460wheeledReference
AT460Chalf-trackReference
Engine
Iseki 3.0L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine33.8 kWReference
Iseki E4DEReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Bore/Stroke97 x 100 mmReference
Power33.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
24-speedReference
Gears24 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM586@2500Reference
Engine RPM787@2500Reference
Engine RPM970@2500Reference
Engine RPM1263@2500Reference
Engine RPM-787@2500Reference
Dimensions
Wheelbase197 cmReference
Weight2295 kgReference
Front tire8.3-20Reference
Rear tiretracksReference
Ag front8.3-20Reference
Ag reartracksReference
Length355 cmReference
Width168 cmReference
Height (cab)230 cmReference
Ground clearance38 cmReference
Front tread125 cmReference
Rear tread115/129 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
