Tractor · 2023Unverified

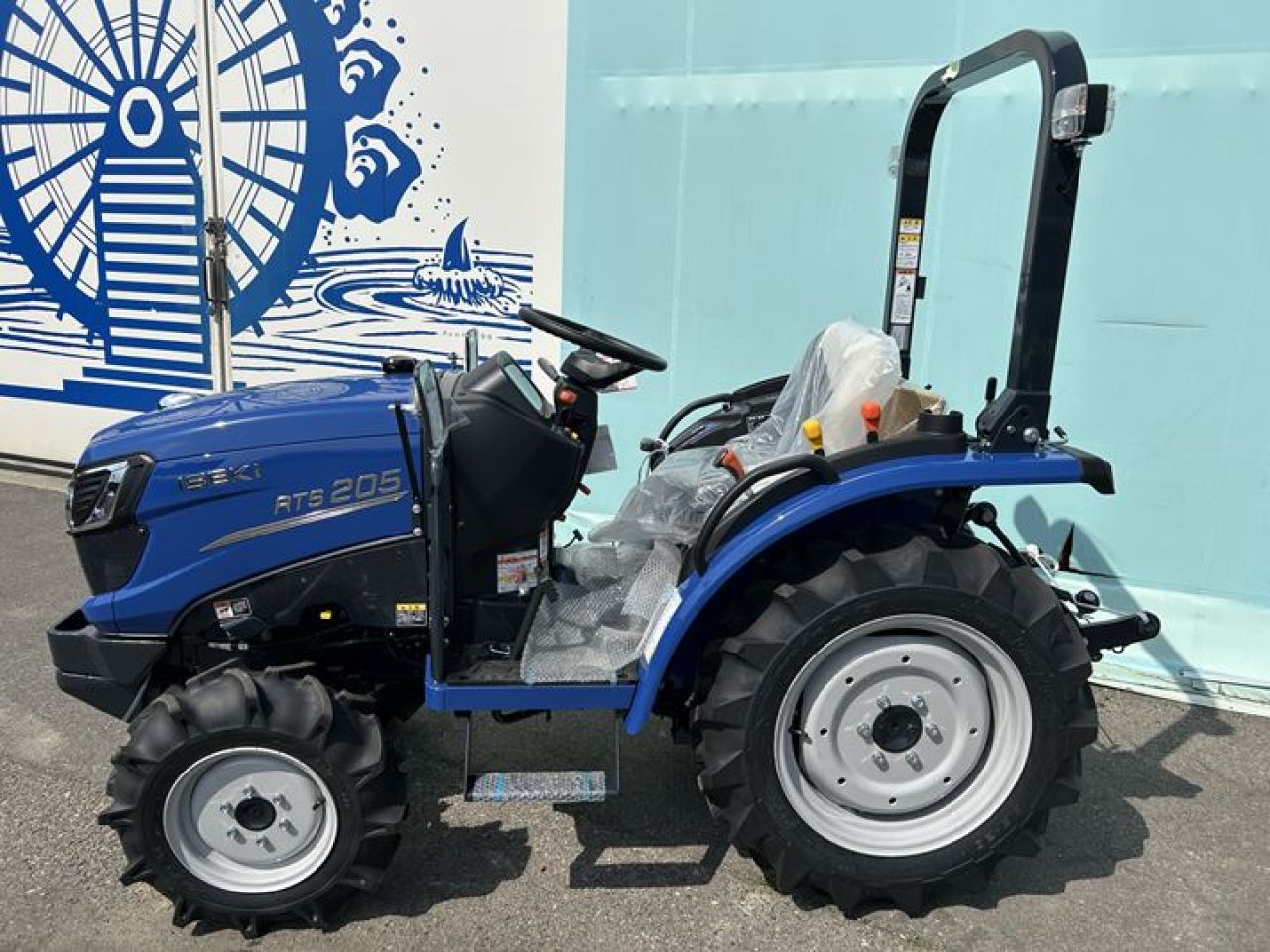

Iseki RTS205

Name: Iseki RTS205
Brand: Iseki

Iseki RTS205 — RTS5 Series · 20 hp. Reference specifications; pending source verification.

The Iseki RTS205 is a compact tractor with a 20 hp rating, one of the lower power options in its class. It was manufactured in 2023. The RTS205 is equipped with a 3-cylinder diesel liquid-cooled engine and features a powershift transmission with four-wheel drive. Its listed weight is 820 kg and it is suited for tasks covering approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

820 kg

Catalogue coverage

Variants represented

Richest spec table

49 rows

Recorded power

20 hp

Recorded weight

820 kg

Transmissions

12-speed gear

Production years

2023-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS.Reference

Engine

Iseki 1.1L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine14.7 kWReference

Iseki E3112Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.1 LReference

Bore/Stroke78 x 78 mmReference

Power14.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed gearReference

30-speed partial power shiftReference

TypegearReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears in three ranges with mechanical shuttle.Reference

Typepartial power shiftReference

Gears30 forward and reverseReference

Ten power shift gears in three ranges with power shuttle.Reference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM523@2500Reference

Engine RPM783@2500Reference

Engine RPM1184@2500Reference

Dimensions

Wheelbase135 cmReference

Weight820 kgReference

Front tire6.00-12Reference

Rear tire9.5-20Reference

Standard tires (ag)Front: 6.00-12. Rear: 9.5-20Reference

Optional tires (ag)Front: 5-12. Rear: 8-16Reference

Optional tires (ag)Front: 6-12. Rear: 8.3-20Reference

Optional tires (ag)Front: 6.00-12. Rear: 8.3-22Reference

Length260 cmReference

Width110 cmReference

Height (ROPS)192 cmReference

Ground clearance29 cmReference

Front tread88 cmReference

Rear tread85/100 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
