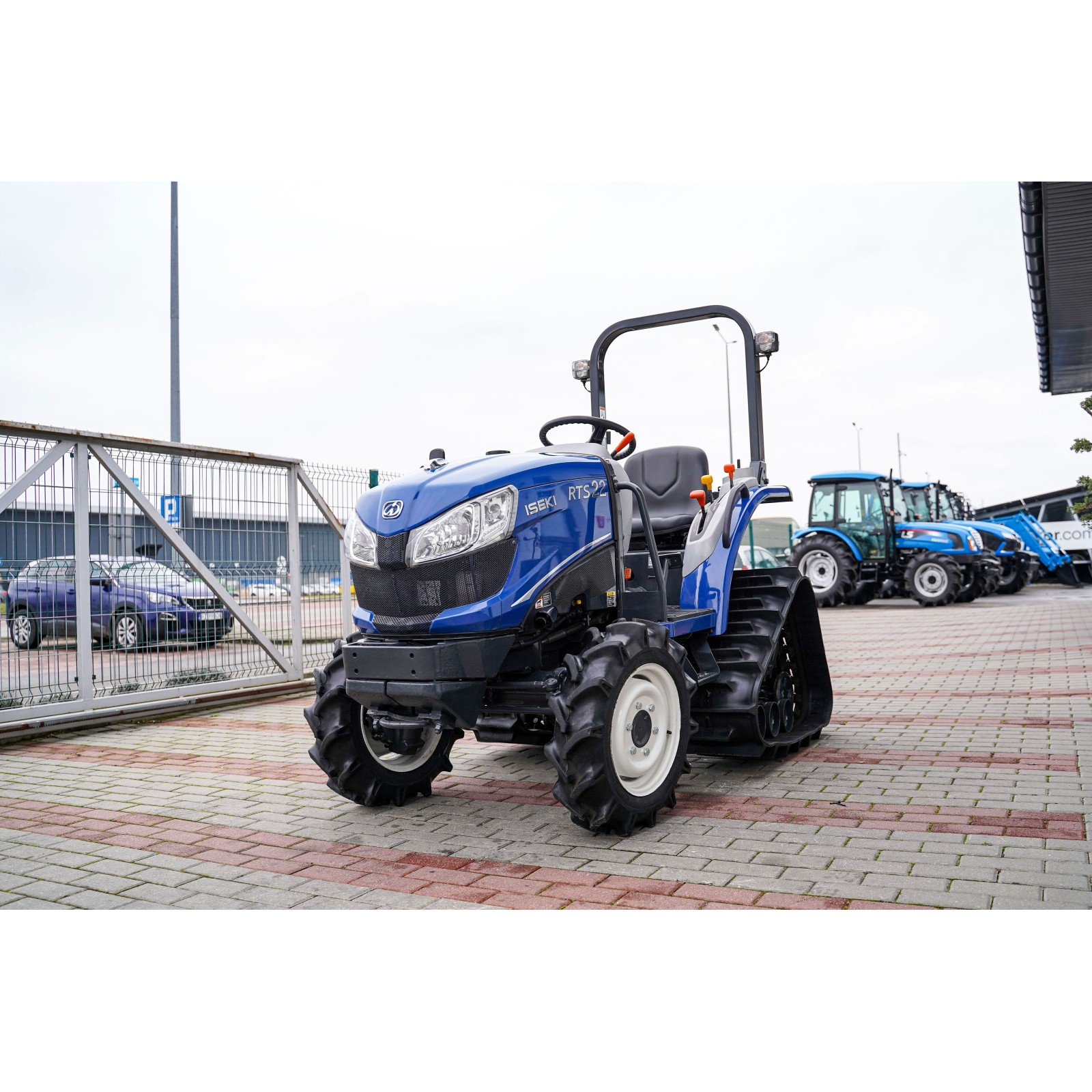

The Iseki RTS22 is a compact tractor with a rating of 22 hp, one of the options in its class. It was manufactured from 2016 to 2023 and features a 3-cylinder diesel liquid-cooled engine, which powers a four-wheel drive system with a powershift transmission. The RTS22 has a listed weight of 825 kg and is suitable for tasks involving up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Weight
825 kg
Catalogue coverage
Variants represented
2
Richest spec table
46 rows
Recorded power
22 hp
Recorded weight
825 kg
Transmissions
12-speed gear
Production years
2016-2023
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.1L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine16.1 kWReference
Iseki E3112Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.1 LReference
Bore/Stroke78 x 78 mmReference
Power16.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
30-speed partial power shiftReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
Typepartial power shiftReference
Gears30 forward and reverseReference
Ten power shift gears in three ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM783@2500Reference
Engine RPM1184@2500Reference
Dimensions
Wheelbase135 cmReference
Weight825 kgReference
Front tire6.00-12Reference
Rear tire9.5-20Reference
Standard tires (ag)Front: 6.00-12. Rear: 9.5-20Reference
Length260 cmReference
Width110 cmReference
Height (ROPS)192 cmReference
Ground clearance29 cmReference
Front tread88 cmReference
Rear tread85/100 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
