Tractor · 2016Unverified

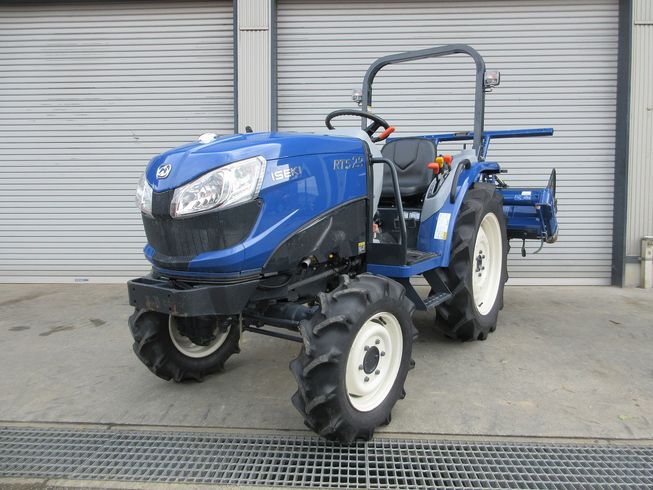

Iseki RTS23
Iseki RTS23 — RTS Series · 23 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
23 hp
Weight
2161 to 2513 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Two-post folding ROPS. Cab optional with air-conditioning.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank28.0 LReference
Engine17.3 kWReference
Iseki E3CDReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power17.3 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed gearReference
30-speed partial power shiftReference
TypegearReference
Gears12 forward and reverseReference
Clutchdry discReference
Four gears in three ranges with mechanical shuttle.Reference
Typepartial power shiftReference
Gears30 forward and reverseReference
Ten power shift gears in three ranges with power shuttle.Reference
PTO & Hydraulics
Rear TypeJIS0Reference
Rear PTO Type540 (1.375)Reference
Engine RPM523@2500Reference
Engine RPM819@2500Reference
Engine RPM1266@2500Reference
Dimensions
Wheelbase150 cmReference
Weight2161 to 2513 poundsReference
Front tire7-14Reference
Rear tire9.5-24Reference
Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length260 cmReference
Width110 cmReference
Height (ROPS)196 cmReference
ROPS Weight980 kgReference
Cab Weight1139 kgReference
Ground clearance35 cmReference
Front tread96 cmReference
Rear tread94/110 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
