Tractor · 2016Unverified

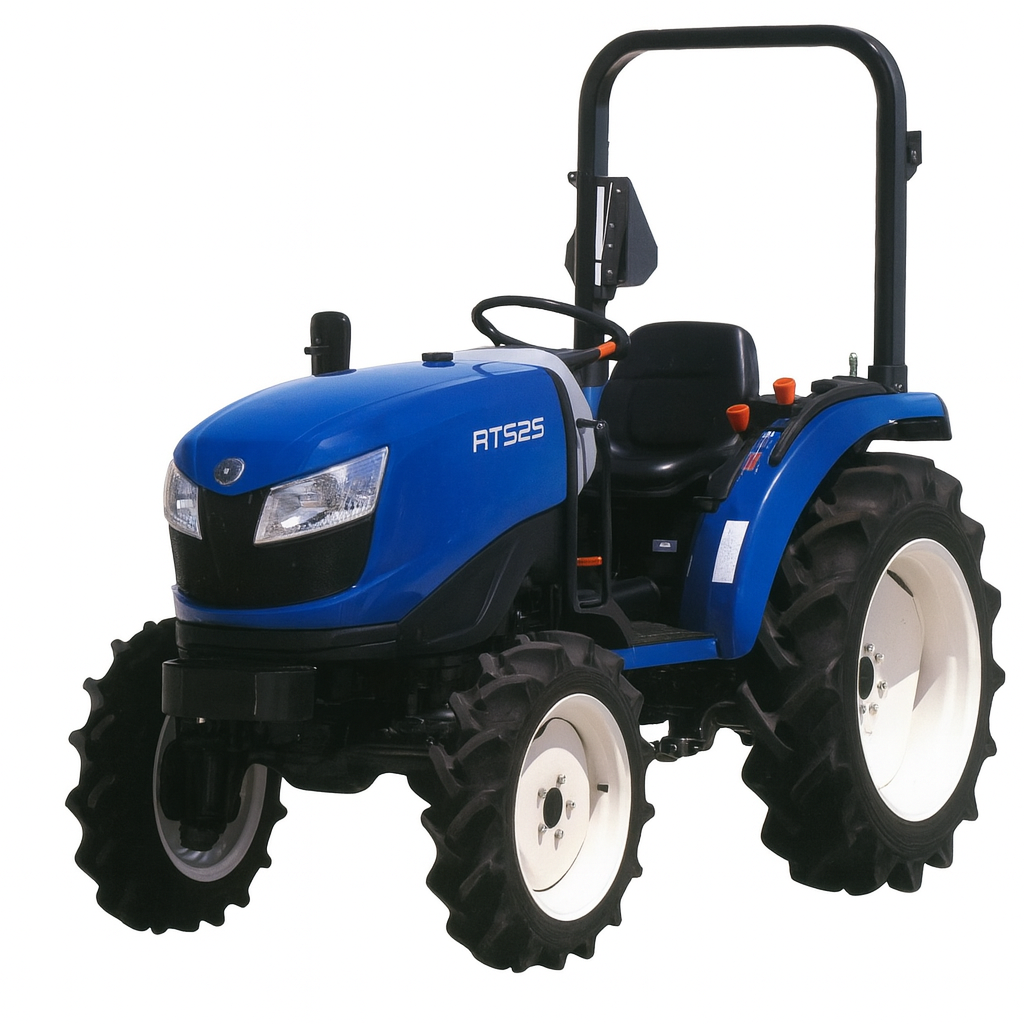

Iseki RTS25

Name: Iseki RTS25
Brand: Iseki

Iseki RTS25 — RTS Series · 25 hp. Reference specifications; pending source verification.

The Iseki RTS25 is a compact tractor with a rating of 25 hp, making it a suitable option for smaller-scale operations. Manufactured from 2016 to 2023, it features a 3-cylinder diesel liquid-cooled engine that powers four-wheel drive through a powershift transmission. The listed weight range is 2227 to 2579 pounds, and it is designed for use on land areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

25 hp

Weight

2227 to 2579 pounds

Catalogue coverage

Variants represented

Richest spec table

52 rows

Recorded power

25 hp

Recorded weight

1010 kg

Transmissions

12-speed gear

Production years

2016-2023

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Four-wheel driveReference

Power steeringReference

Wet disc brakesReference

Two-post folding ROPS. Cab optional with air-conditioning.Reference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank28.0 LReference

Engine18.4 kWReference

Iseki E3CDReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke87 x 84 mmReference

Power18.4 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

12-speed gearReference

30-speed partial power shiftReference

TypegearReference

Gears12 forward and reverseReference

Clutchdry discReference

Four gears in three ranges with mechanical shuttle.Reference

Typepartial power shiftReference

Gears30 forward and reverseReference

Ten power shift gears in three ranges with power shuttle.Reference

PTO & Hydraulics

Rear TypeJIS0Reference

Rear PTO Type540 (1.375)Reference

Engine RPM523@2500Reference

Engine RPM819@2500Reference

Engine RPM1266@2500Reference

Dimensions

Wheelbase150 cmReference

Weight2227 to 2579 poundsReference

Front tire7-16Reference

Rear tire11.2-24Reference

Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference

Optional tires (ag)Front: 6.00-12. Rear: 8.3-22Reference

Optional tires (ag)Front: 7-14. Rear: 9.5-24Reference

Optional tires (ag)Front: 24x8.5-12. Rear: 315/750-15Reference

Optional tires (ag)Front: 7-14. Rear: 8.3-24Reference

Length280 cmReference

Width110 cmReference

Height (ROPS)196 cmReference

ROPS Weight1010 kgReference

Cab Weight1169 kgReference

Ground clearance36 cmReference

Front tread103 cmReference

Rear tread104 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
