Tractor · 1985Unverified

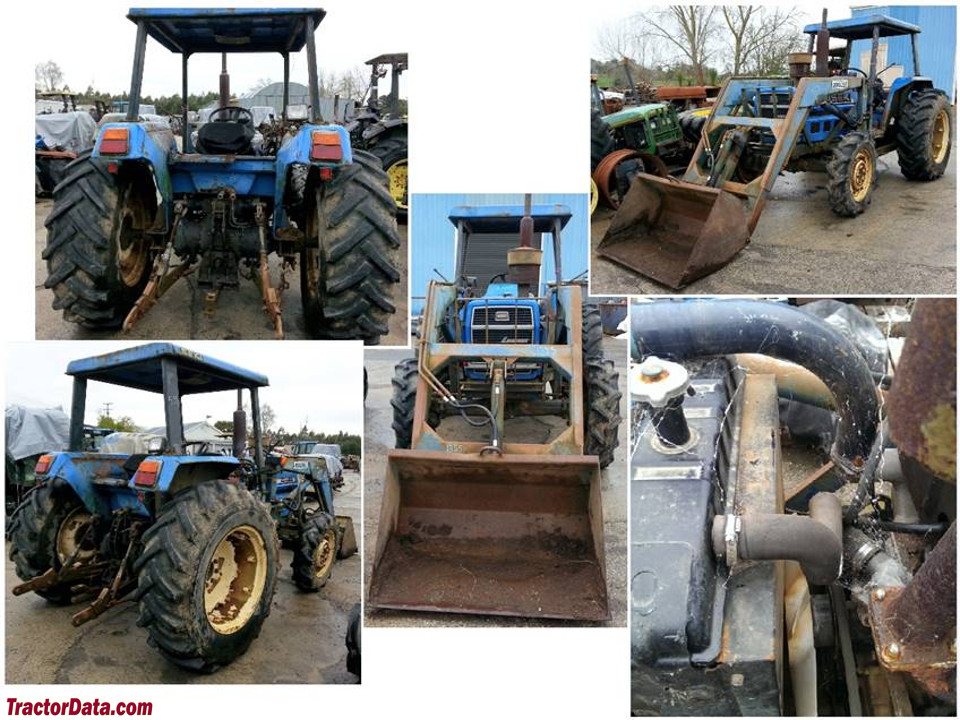

Iseki SX65
Iseki SX65 — SX Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
5490 to 5930 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS.Reference
Engine
Isuzu 3.3L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine44.7 kWReference
Isuzu 4BC2Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.3 LReference
Bore/Stroke102 x 100 mmReference
Power44.7 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Pre-heatingglow plugsReference
Rated RPM2300Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncromeshReference
TypesyncromeshReference
Gears12 forward and 4 reverseReference
Clutch330.2mm dry discReference
PTO & Hydraulics
Pump flow40.1 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift2399 kgReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540 (1.375)Reference
Engine RPM540@1728Reference
Dimensions
2WD Wheelbase214 cmReference
4WD Wheelbase215 cmReference
Weight5490 to 5930 poundsReference
Front tire7.50-16Reference
2WD Rear tire16.9-30Reference
2WD Standard tires (ag)Front: 7.50-16. Rear: 16.9-30Reference
4WD Standard tires (ag)Front: 9.5-22. Rear: 16.9-30Reference
Length336 cmReference
Height (exhaust)247 cmReference
2WD Weight2490 kgReference
4WD Weight2689 kgReference
Ground clearance36 cmReference
2WD Front tread132 to 171 cmReference
4WD Front tread137 to 187 cmReference
Rear tread137 to 180 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH110Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
