Tractor · 1982Unverified

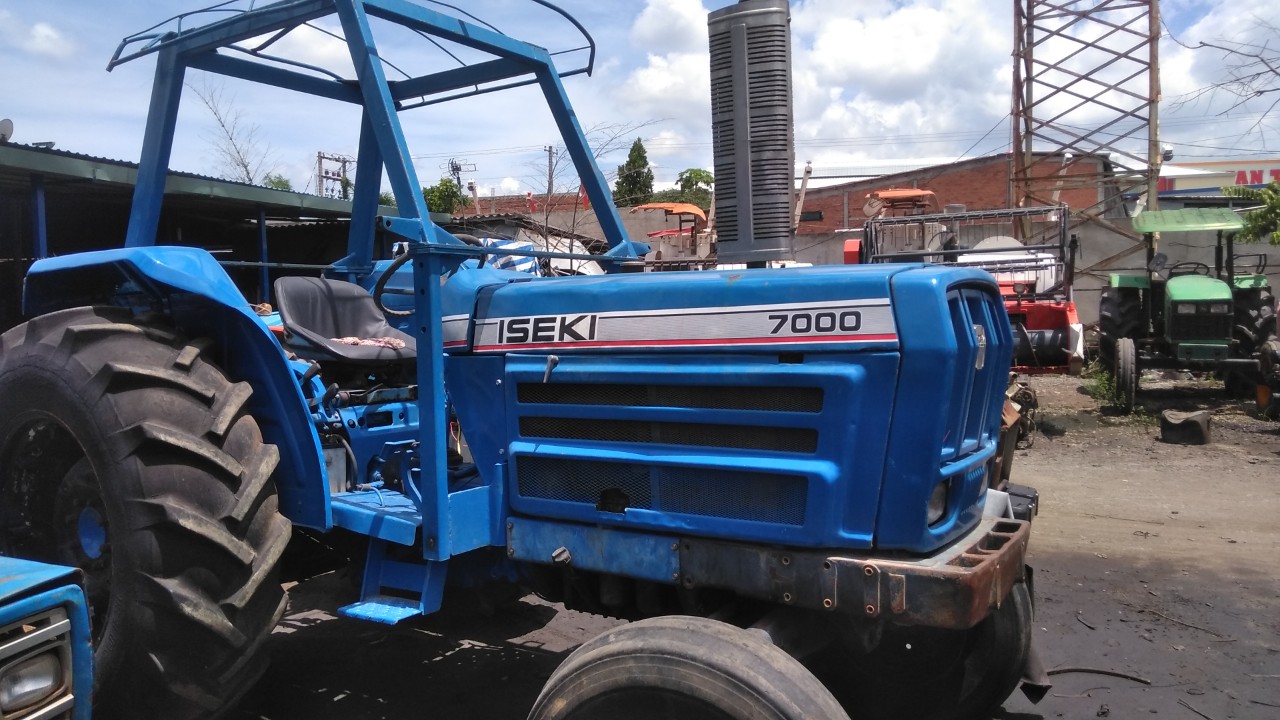

Iseki T7000
Iseki T7000 — Utility tractor · 69 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
69 hp
Weight
5423 to 5986 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Original price was $21,000 in 1987Reference
Drive4x2 2WDReference
Drive4x4 MFWD 4WD (T7000F)Reference
Steeringhydraulic powerReference
Wet disc brakesReference
Four-post ROPS or cab.Reference
Engine
Isuzu 3.9L 4-cyl dieselReference
Fuel tank60.2 LReference
Engine51.5 kWReference
Isuzu 4BD1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 118 mmReference
Power51.5 kWReference
Air cleanerdry with pre-cleanerReference
Compression17.5:1Reference
Rated RPM2200Reference
Starter volts12Reference
Starter power2.0 kWReference
Coolant capacity14.4 LReference
Transmission
16-speedReference
Gears16 forward and 4 reverseReference
Clutch333mm dry discReference
PTO & Hydraulics
Typeopen centerReference
Valves1Reference
Pump flow43.5 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift1706 kgReference
Rear PTOindependentReference
ClutchhydraulicReference
Rear PTO Type540/1000Reference
Engine RPM540@1814Reference
Engine RPM1000@2050Reference
Dimensions
Wheelbase214 cmReference
Weight5423 to 5986 poundsReference
Front tire7.50x16Reference
Rear tire16.9x30 (2WD)Reference
Standard tires (ag)Front: 7.50x16. Rear: 16.9x30 (2WD)Reference
Standard tires (ag)Front: 9.5x24. Rear: 16.9x30 (4WD)Reference
Length360 cmReference
Width183 cmReference
Height251 cmReference
2WD Weight2459 kgReference
4WD Weight2715 kgReference
Ground clearance39 cmReference
Ground clearance37 cmReference
Front tread144 to 203 cmReference
Front tread146 to 151 cmReference
Rear tread125 to 181 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps35Reference
Batteries2Reference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
