Tractor · 1985Unverified

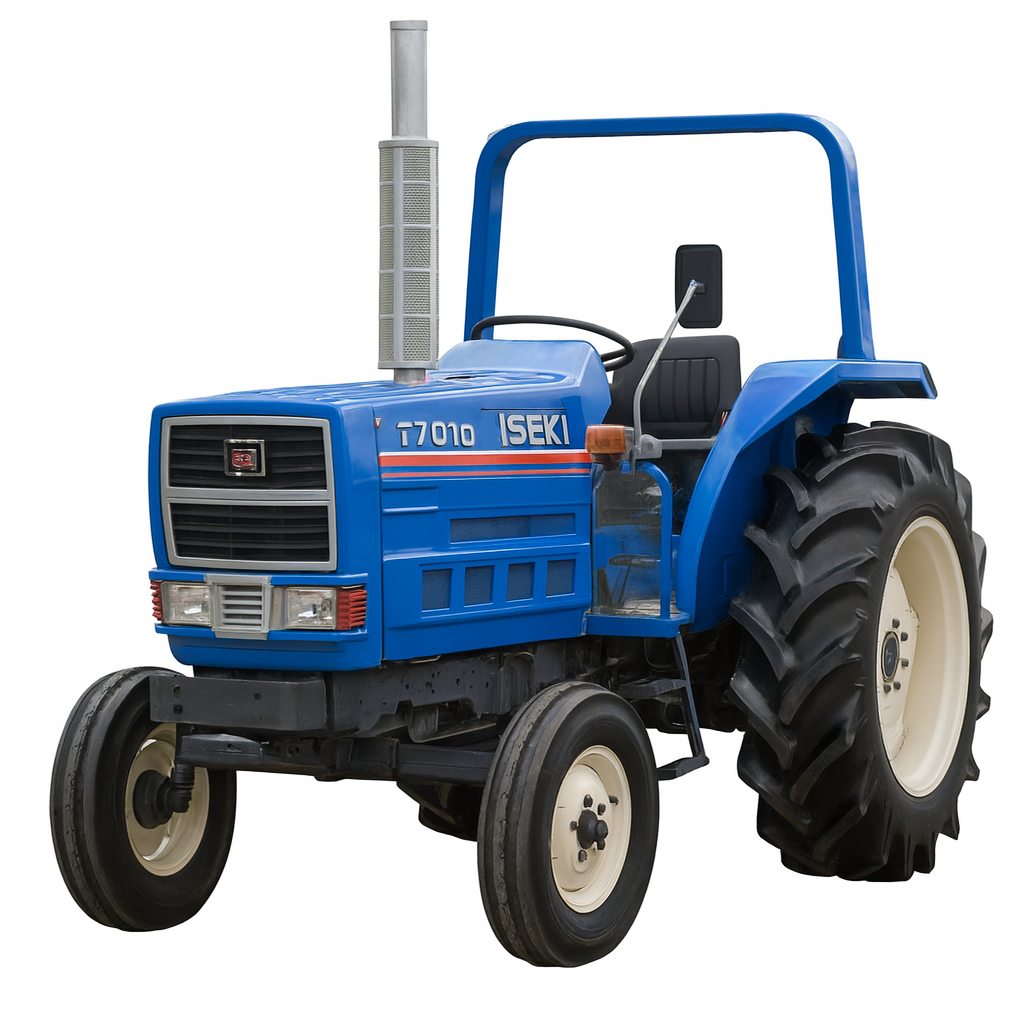

Iseki T7010
Iseki T7010 — T-10 Series · 70 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
70 hp
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Utility tractorReference
Built in JapanReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Four-post ROPS. Cab optional.Reference
Engine
Isuzu 3.9L 4-cyl dieselReference
Engine52.2 kWReference
Isuzu 4BD1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.9 LReference
Bore/Stroke102 x 118 mmReference
Power52.2 kWReference
Fuel systemdirect injectionReference
Air cleanerdual dry elementReference
Rated RPM2200Reference
StarterelectricReference
Starter volts12Reference
Transmission
12-speed syncromeshReference
24-speedReference
TypesyncromeshReference
Gears12 forward and 4 reverseReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Rear TypeIIReference
Rear PTOindependentReference
Clutchhydraulic wet discReference
Rear PTO Type540/1000 (1.375)Reference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
