Tractor · 1989Unverified

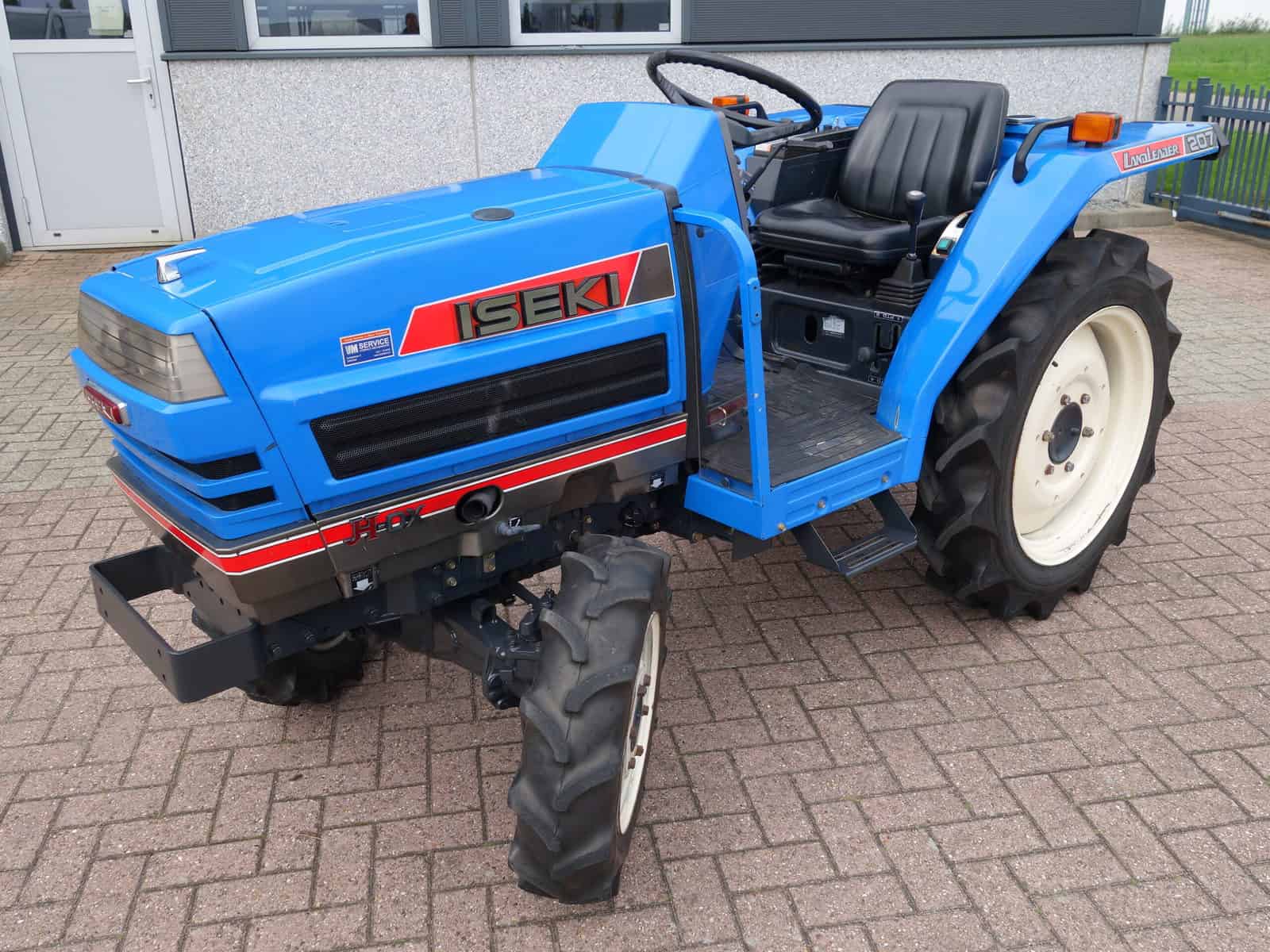

Iseki TA207

Name: Iseki TA207
Brand: Iseki

Iseki TA207 — Landleader TA7 Series · 20 hp. Reference specifications; pending source verification.

The Iseki TA207 is a tractor with a rated power output of 20 hp, positioning it at the lighter end of its class. It was manufactured from 1989 to 1992 and features a 3-cylinder diesel liquid-cooled engine paired with four-wheel drive and a 16-speed gearbox. The operating weight of the TA207 is listed as 2189 to 2862 pounds. It is suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

20 hp

Weight

2189 to 2862 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

20 hp

Transmissions

16-speed

Production years

1989-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station. Cab optional.Reference

Variants

TA207F4WDReference

Engine

Iseki 1.4L 3-cyl dieselReference

Fuel tank21.2 LReference

Engine14.7 kWReference

Iseki E3AG1Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke84 x 86 mmReference

Power14.7 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.8 LReference

Transmission

16-speedReference

Gears16 forward and reverseReference

Four gears (1-4) in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM565@2500Reference

Engine RPM733@2500Reference

Engine RPM1060@2500Reference

Engine RPM1244@2500Reference

Dimensions

Wheelbase153 cmReference

Weight2189 to 2862 poundsReference

Front tire4.00-15Reference

2WD Rear tire8.3-24Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 8.3-24Reference

4WD Standard tires (ag)Front: 6-14. Rear: 8.3-24Reference

Length290 cmReference

Width124 cmReference

Height (steering wheel)139 cmReference

Height (cab)194 cmReference

Ground clearance26 cmReference

2WD Front tread90/101 cmReference

4WD Front tread94 cmReference

Rear tread93/108 cmReference

2WD Open992 kgReference

4WD Open1078 kgReference

2WD Cab1212 kgReference

4WD Cab1298 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
