Tractor · 1985Unverified

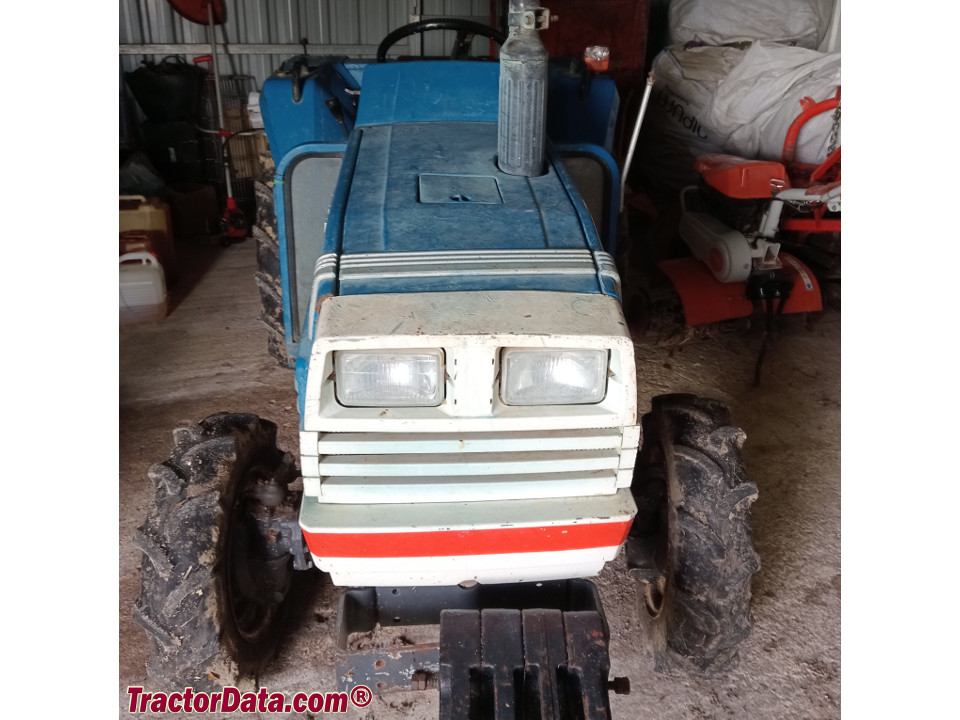

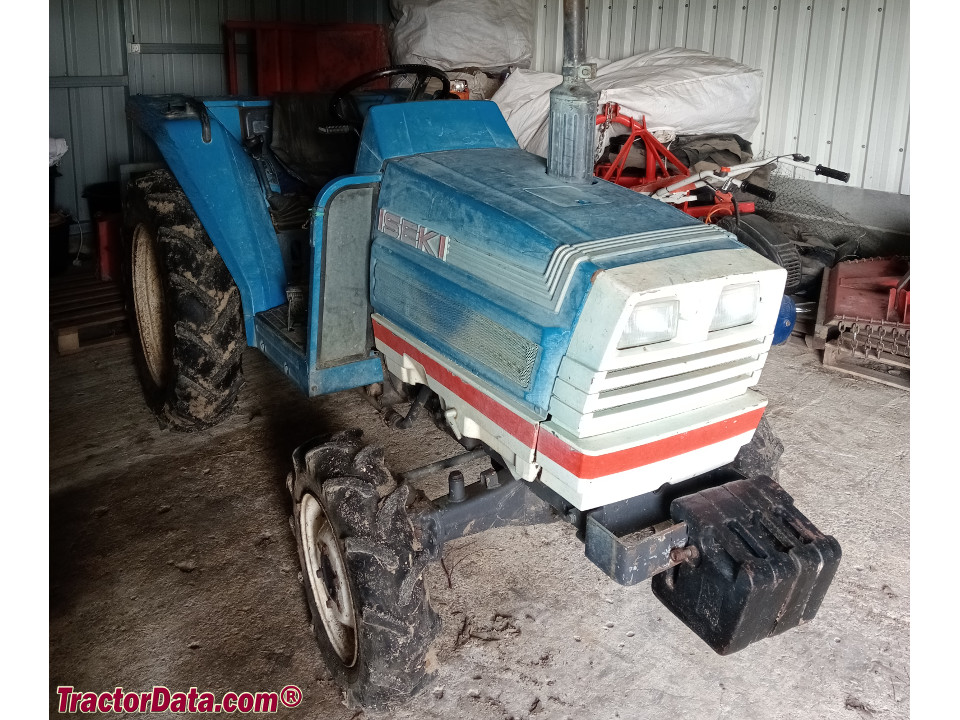

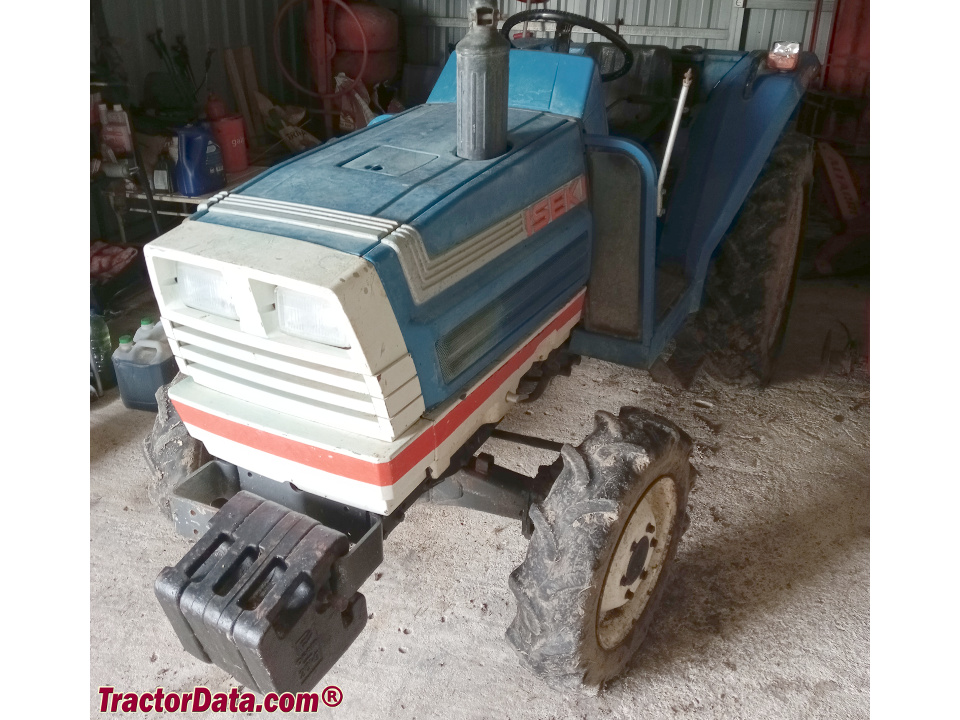

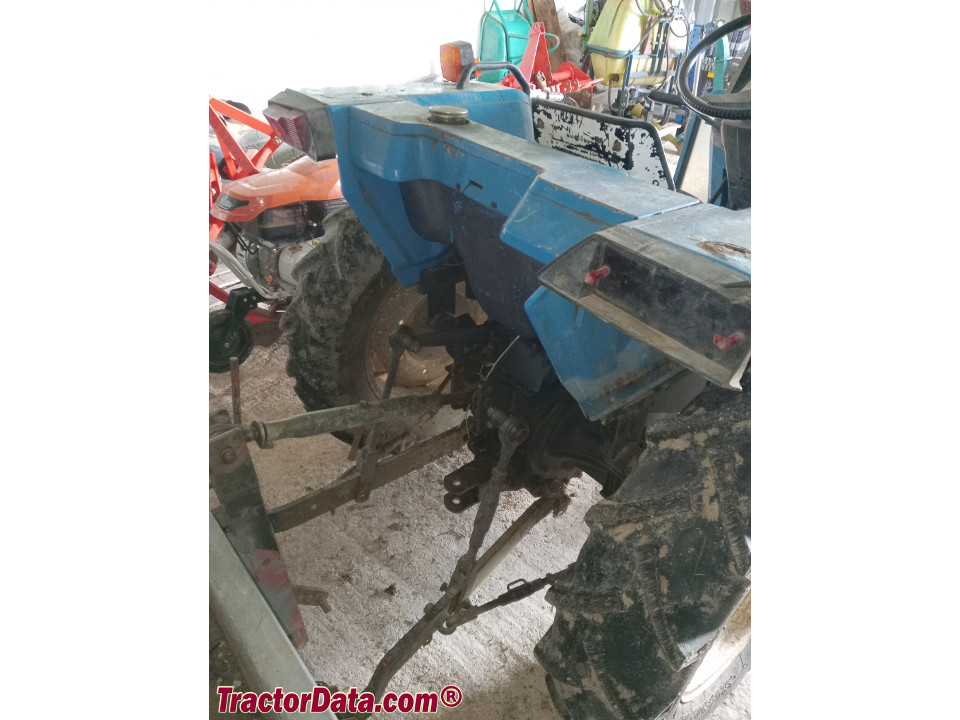

Iseki TA210
Iseki TA210 — Landleader TA0 Series · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
2127 to 2403 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TA210F4WDReference
Engine
Isuzu 1.4L 3-cyl dieselReference
Fuel tank21.2 LReference
Engine15.7 kWReference
Isuzu E3AG1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power15.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM733@2500Reference
Engine RPM898@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase153 cmReference
Weight2127 to 2403 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-22Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-22Reference
4WD Standard tires (ag)Front: 6-14. Rear: 9.5-22Reference
Length290 cmReference
Width124 cmReference
Height (exhaust)188 cmReference
2WD Weight964 kgReference
4WD Weight1090 kgReference
Ground clearance25 cmReference
2WD Front tread96/102 cmReference
4WD Front tread102 cmReference
Rear tread93/108 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
