Tractor · 1985Unverified

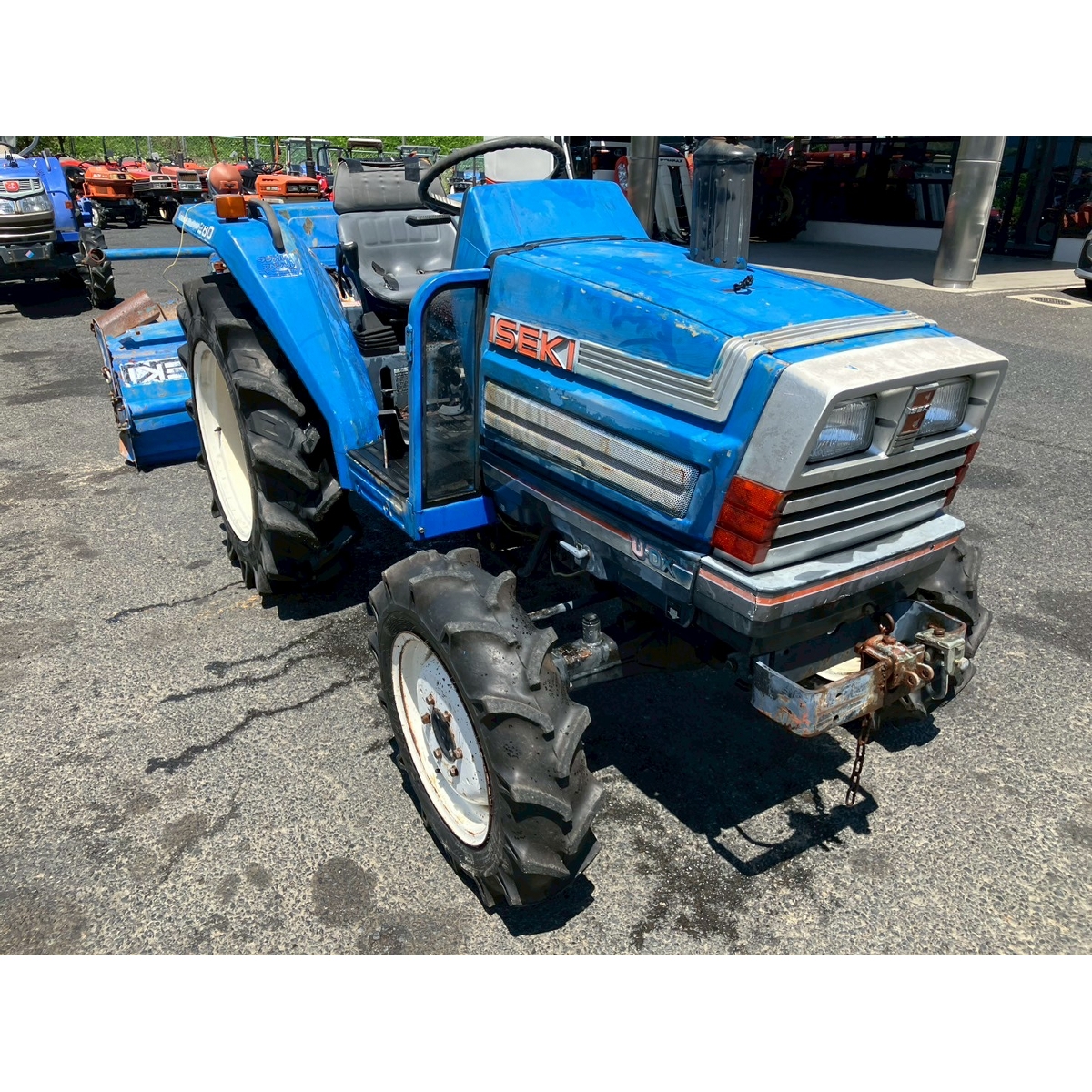

Iseki TA230

Name: Iseki TA230
Brand: Iseki

Iseki TA230 — Landleader TA0 Series · 23 hp. Reference specifications; pending source verification.

The Iseki TA230 is a compact tractor with a rated output of 23 hp. It was manufactured between 1985 and 1987. The 3-cylinder diesel liquid-cooled engine powers the four-wheel drive transmission, which is equipped with a 16-speed gearbox. The tractor's weight ranges from 2249 to 2480 pounds and is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

23 hp

Weight

2249 to 2480 pounds

Catalogue coverage

Variants represented

Richest spec table

43 rows

Recorded power

23 hp

Recorded weight

1020 kg

Transmissions

16-speed

Production years

1985-1987

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TA230F4WDReference

Engine

Isuzu 1.4L 3-cyl dieselReference

Fuel tank29.9 LReference

Engine17.2 kWReference

Isuzu E3AG1Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.4 LReference

Bore/Stroke84 x 86 mmReference

Power17.2 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM565@2500Reference

Engine RPM733@2500Reference

Engine RPM898@2500Reference

Engine RPM1244@2500Reference

Dimensions

Wheelbase161 cmReference

Weight2249 to 2480 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-24Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference

4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

Length297 cmReference

Width124 cmReference

Height (exhaust)190 cmReference

2WD Weight1020 kgReference

4WD Weight1124 kgReference

Ground clearance27 cmReference

2WD Front tread96/105 cmReference

4WD Front tread106 cmReference

Rear tread98/113 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
