Tractor · 1989Unverified

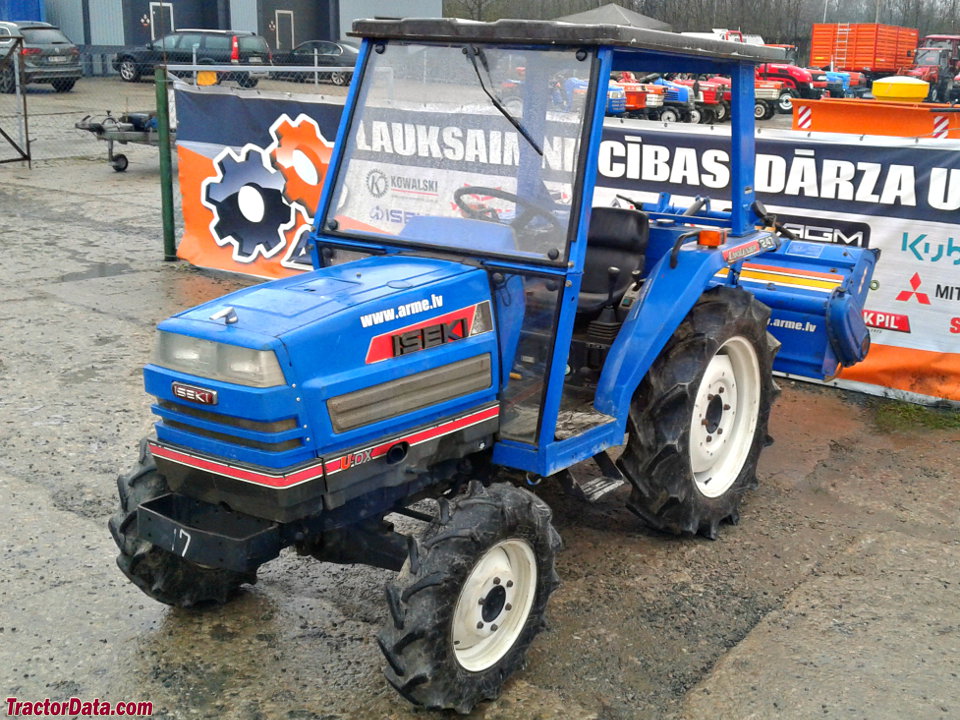

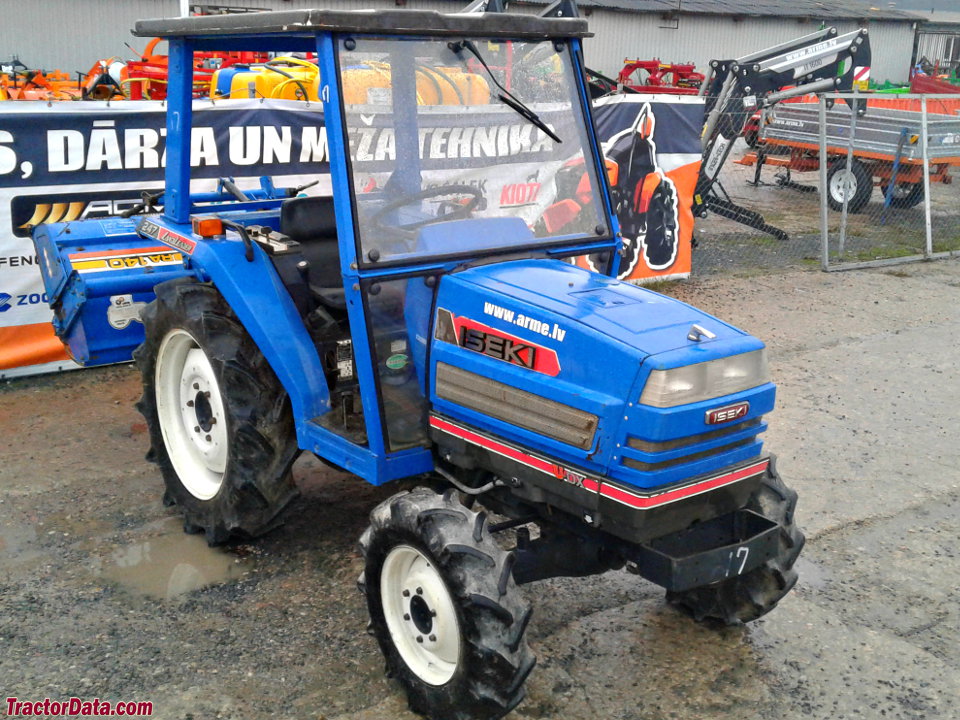

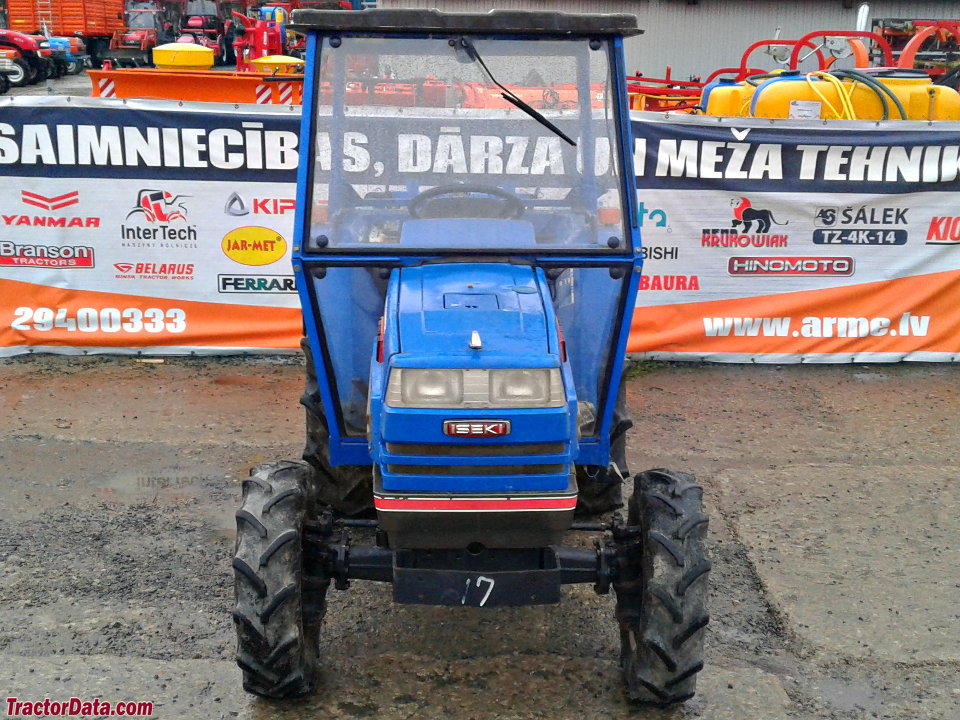

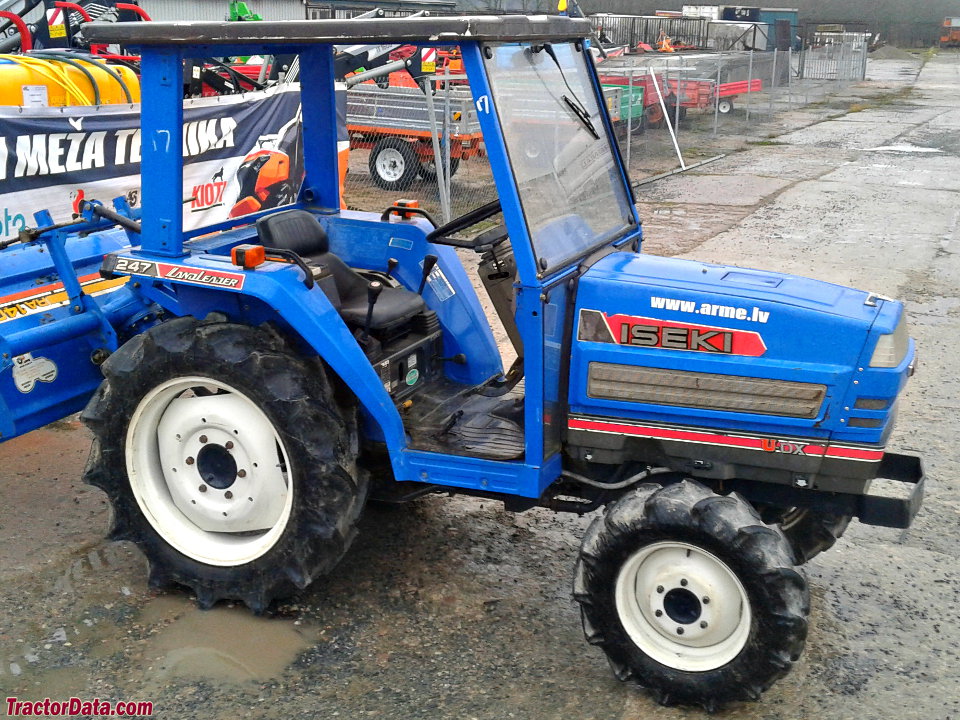

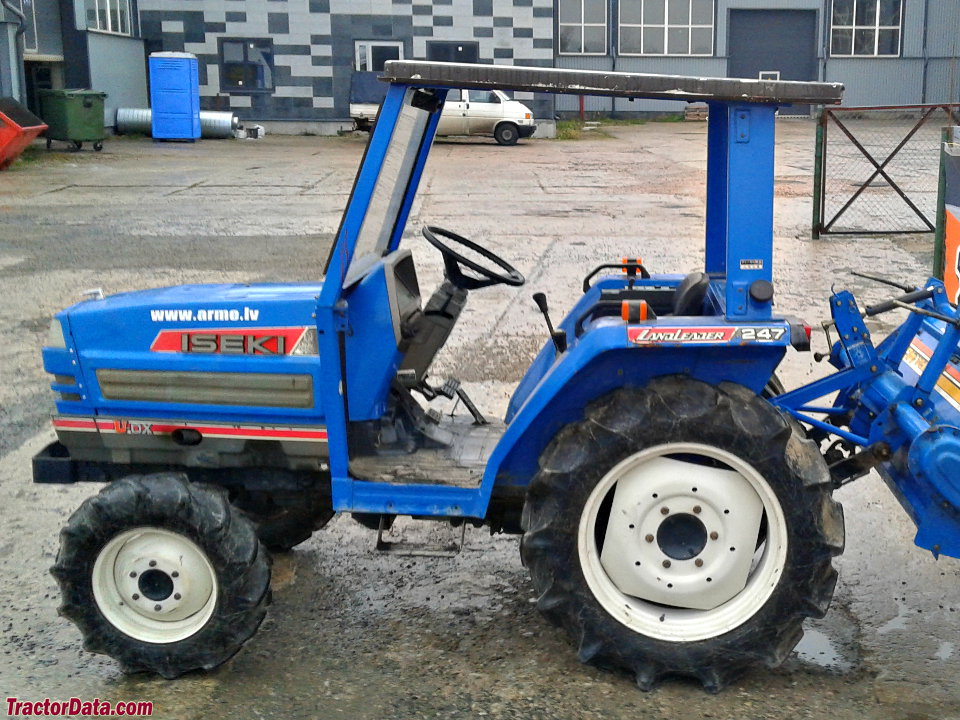

Iseki TA247
Iseki TA247 — Landleader TA7 Series · 24 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
24 hp
Weight
2260 to 2954 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station. Cab optional.Reference
Variants
TA247F4WDReference
Engine
Iseki 1.4L 3-cyl dieselReference
Fuel tank28.8 LReference
Engine17.7 kWReference
Iseki E3AG1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Bore/Stroke84 x 86 mmReference
Power17.7 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.8 LReference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges with shuttle shift.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM733@2500Reference
Engine RPM1060@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase161 cmReference
Weight2260 to 2954 poundsReference
Front tire4.00-15Reference
2WD Rear tire9.5-24Reference
2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference
4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference
Length297 cmReference
Width131 cmReference
Height (steering wheel)141 cmReference
Height (cab)196 cmReference
Ground clearance29 cmReference
2WD Front tread96/105 cmReference
4WD Front tread106 cmReference
Rear tread98/113 cmReference
2WD Open1025 kgReference
4WD Open1119 kgReference
2WD Cab1245 kgReference
4WD Cab1339 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
