Tractor · 1989Unverified

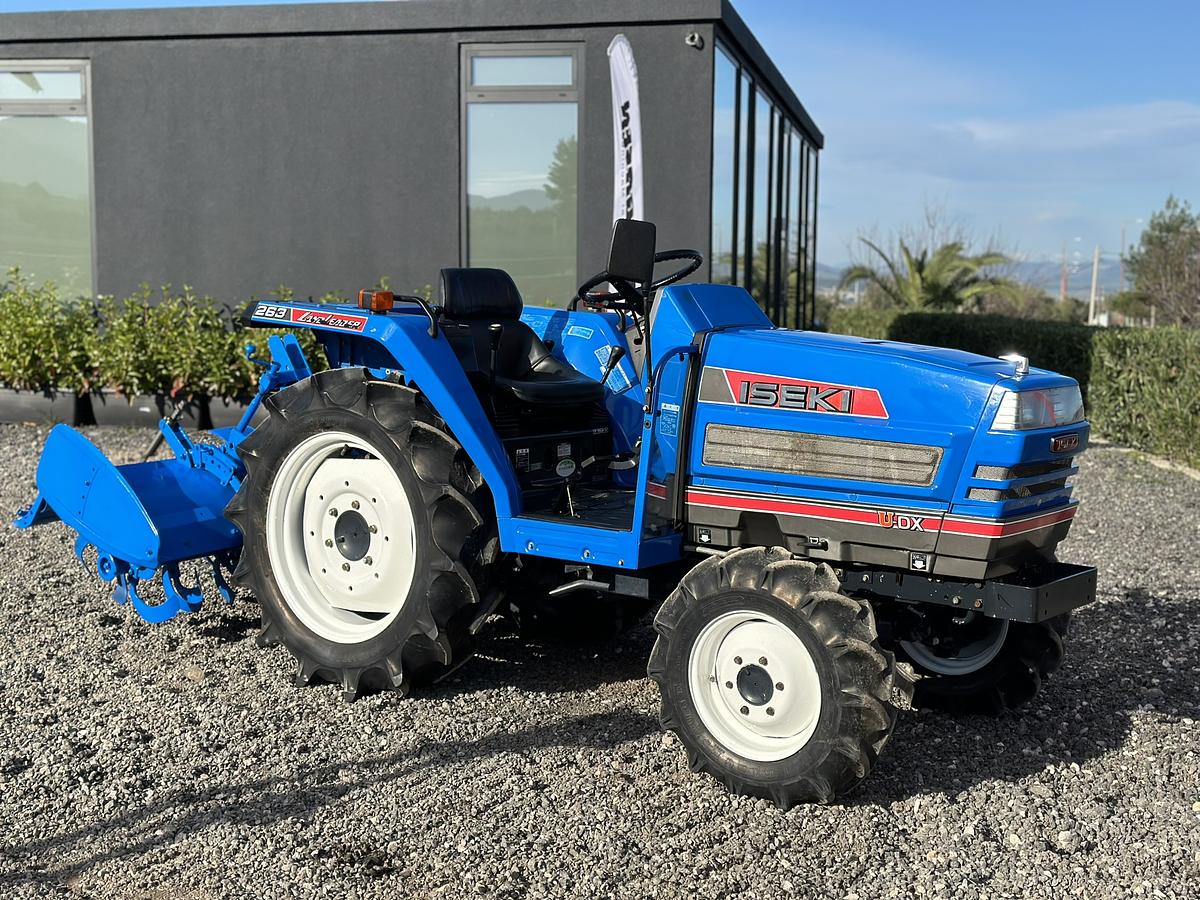

Iseki TA263

Name: Iseki TA263
Brand: Iseki

Iseki TA263 — Landleader TA7 Series · 26 hp. Reference specifications; pending source verification.

The Iseki TA263 is a tractor with an approximate power output of 26 hp, categorising it as a lighter model in its class. It was manufactured from 1989 to 1992. The tractor features a 3-cylinder diesel engine, which is liquid-cooled and paired with four-wheel drive and a 16-speed gearbox. Its operating weight ranges from 2260 to 2954 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

26 hp

Weight

2260 to 2954 pounds

Catalogue coverage

Variants represented

Richest spec table

47 rows

Recorded power

26 hp

Transmissions

16-speed

Production years

1989-1992

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station. Cab optional.Reference

Variants

TA263F4WDReference

Engine

Iseki 1.5L 3-cyl dieselReference

Fuel tank21.2 LReference

Engine19.1 kWReference

Iseki E3ADIReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Bore/Stroke87 x 84 mmReference

Power19.1 kWReference

Rated RPM2500Reference

StarterelectricReference

Starter volts12Reference

Oil capacity4.8 LReference

Transmission

16-speedReference

Gears16 forward and reverseReference

Four gears (1-4) in four ranges with shuttle shift.Reference

PTO & Hydraulics

Rear PTO Type540 (1.375)Reference

Engine RPM565@2500Reference

Engine RPM733@2500Reference

Engine RPM1060@2500Reference

Engine RPM1244@2500Reference

Dimensions

Wheelbase153 cmReference

Weight2260 to 2954 poundsReference

Front tire4.00-15Reference

2WD Rear tire9.5-24Reference

2WD Standard tires (ag)Front: 4.00-15. Rear: 9.5-24Reference

4WD Standard tires (ag)Front: 7-14. Rear: 9.5-24Reference

Length290 cmReference

Width124 cmReference

Height (steering wheel)141 cmReference

Height (cab)196 cmReference

Ground clearance29 cmReference

2WD Front tread96/105 cmReference

4WD Front tread106 cmReference

Rear tread98/113 cmReference

2WD Open1025 kgReference

4WD Open1119 kgReference

2WD Cab1245 kgReference

4WD Cab1339 kgReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
