Tractor · 1989Unverified

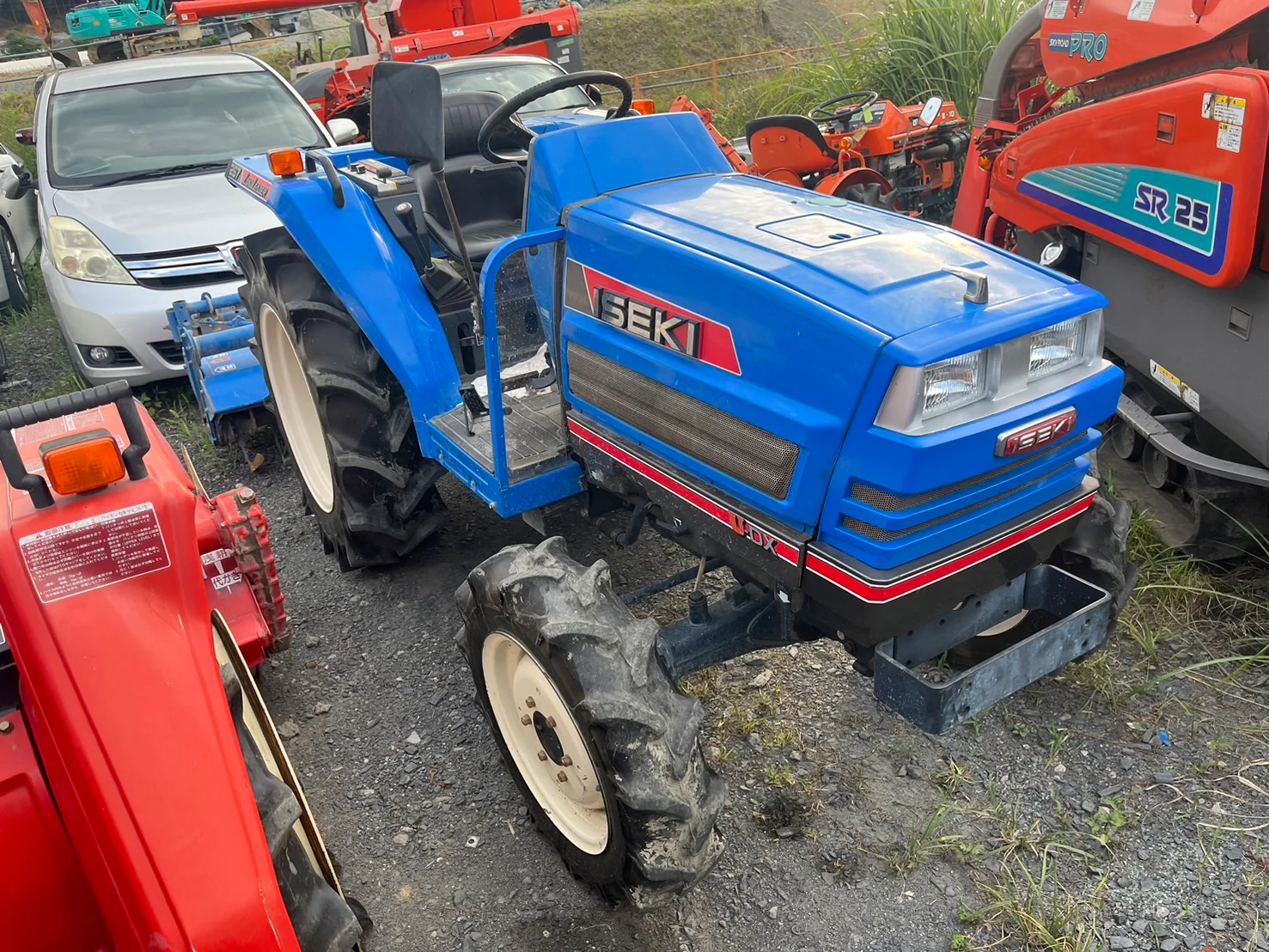

Iseki TA267
Iseki TA267 — Landleader TA7 Series · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
2348 to 3031 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station. Cab optional.Reference
Variants
TA267F4WDReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine19.1 kWReference
Iseki E3ADIReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power19.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.8 LReference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges with shuttle shift.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM733@2500Reference
Engine RPM1060@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase161 cmReference
Weight2348 to 3031 poundsReference
Front tire5.00-15Reference
2WD Rear tire11.2-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 11.2-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 11.2-24Reference
Length297 cmReference
Width132 cmReference
Height (steering wheel)144 cmReference
Height (cab)198 cmReference
Ground clearance33 cmReference
2WD Front tread98 to 128 cmReference
4WD Front tread106 cmReference
Rear tread102 to 121 cmReference
2WD Open1065 kgReference
4WD Open1154 kgReference
2WD Cab1285 kgReference
4WD Cab1374 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
