Tractor · 1985Unverified

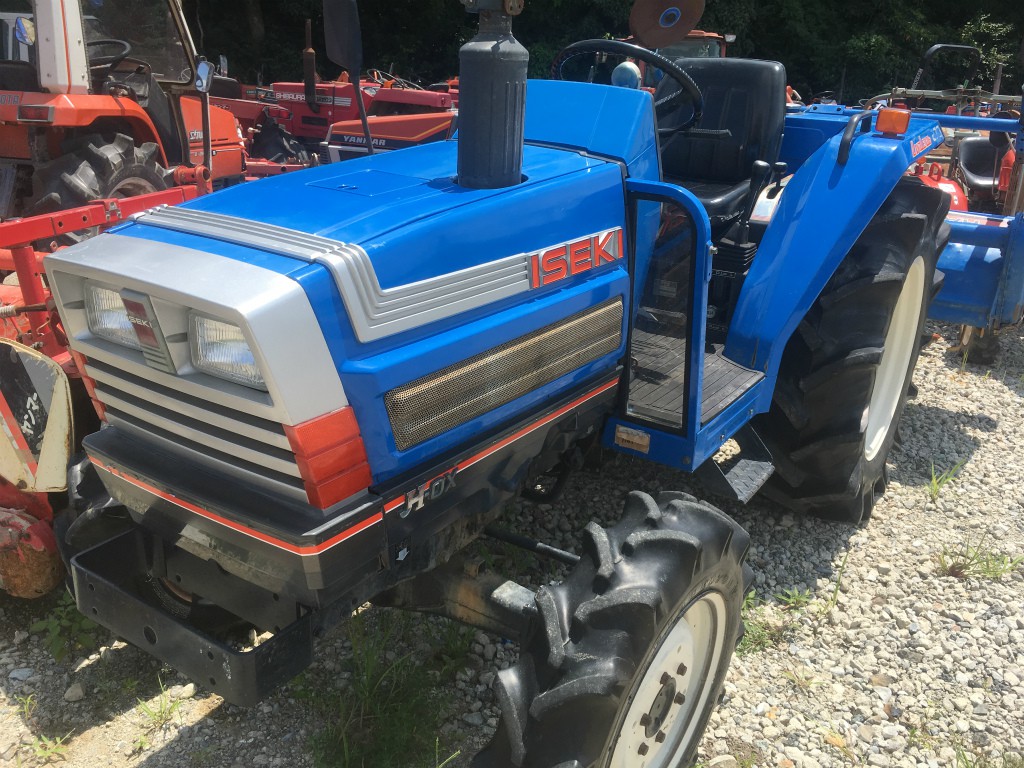

Iseki TA270
Iseki TA270 — Landleader TA0 Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
2414 to 2590 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TA270F4WDReference
Engine
Isuzu 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine20.1 kWReference
Isuzu E3AD1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power20.1 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM733@2500Reference
Engine RPM898@2500Reference
Engine RPM1244@2500Reference
Dimensions
Wheelbase169 cmReference
Weight2414 to 2590 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length307 cmReference
Width135 cmReference
Height (exhaust)192 cmReference
2WD Weight1094 kgReference
4WD Weight1174 kgReference
Ground clearance33 cmReference
2WD Front tread98/107/118/128 cmReference
4WD Front tread106 cmReference
Rear tread102/109/114/121/134 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
