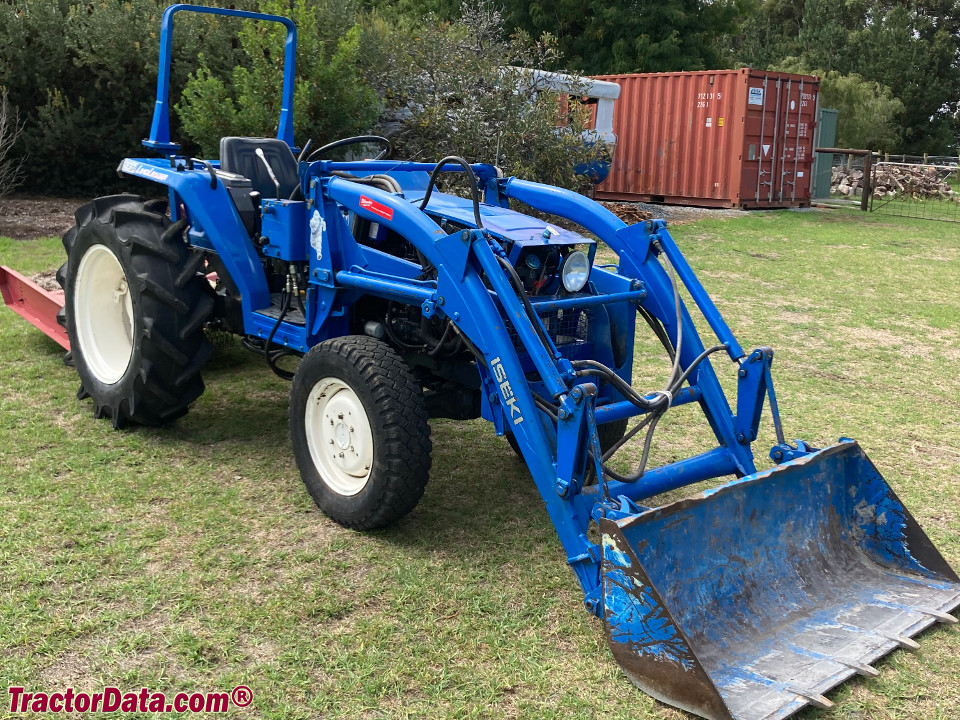

Iseki TA287
Iseki TA287 — Landleader TA7 Series · 28 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
28 hp
Weight
2414 to 3064 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station. Cab optional.Reference
Variants
TA287F4WDReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine20.6 kWReference
Iseki E3ADIReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power20.6 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.8 LReference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges with shuttle shift.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM565@2800Reference
Engine RPM732@2800Reference
Engine RPM1053@2800Reference
Engine RPM1233@2800Reference
Dimensions
Wheelbase169 cmReference
Weight2414 to 3064 poundsReference
Front tire5.00-15Reference
2WD Rear tire12.4-24Reference
2WD Standard tires (ag)Front: 5.00-15. Rear: 12.4-24Reference
4WD Standard tires (ag)Front: 7-16. Rear: 12.4-24Reference
Length307 cmReference
Width135 cmReference
Height (steering wheel)145 cmReference
Height (cab)199 cmReference
Ground clearance34 cmReference
2WD Front tread98 to 128 cmReference
4WD Front tread106 cmReference
Rear tread102 to 134 cmReference
2WD Open1094 kgReference
4WD Open1169 kgReference
2WD Cab1314 kgReference
4WD Cab1389 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
