Tractor · 1985Unverified

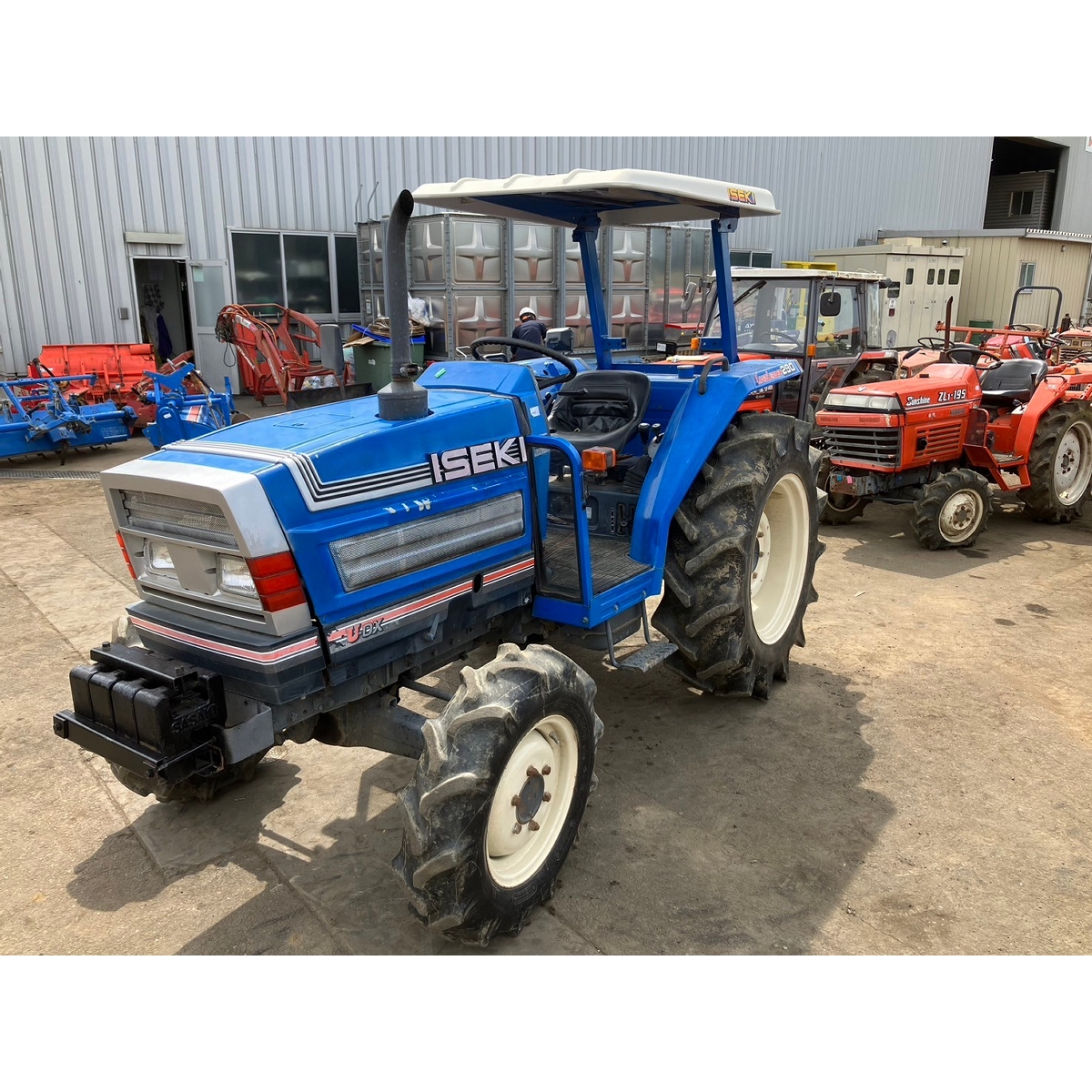

Iseki TA290
Iseki TA290 — Landleader TA0 Series · 27 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
27 hp
Weight
3053 to 3285 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station.Reference
Variants
TA2902WDReference
TA290F4WDReference
Engine
Isuzu 1.5L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine20.1 kWReference
Isuzu 4FE1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Power20.1 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2800Reference
Engine RPM705@2800Reference
Engine RPM837@2800Reference
Engine RPM1308@2800Reference
Dimensions
Wheelbase180 cmReference
Weight3053 to 3285 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4-26Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4-26Reference
4WD Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length322 cmReference
Width150 cmReference
Height (exhaust)189 cmReference
2WD Weight1384 kgReference
4WD Weight1490 kgReference
Ground clearance34 cmReference
2WD Front tread115/124/135/145/154 cmReference
4WD Front tread120 cmReference
Rear tread114/118/125/130/137/150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
