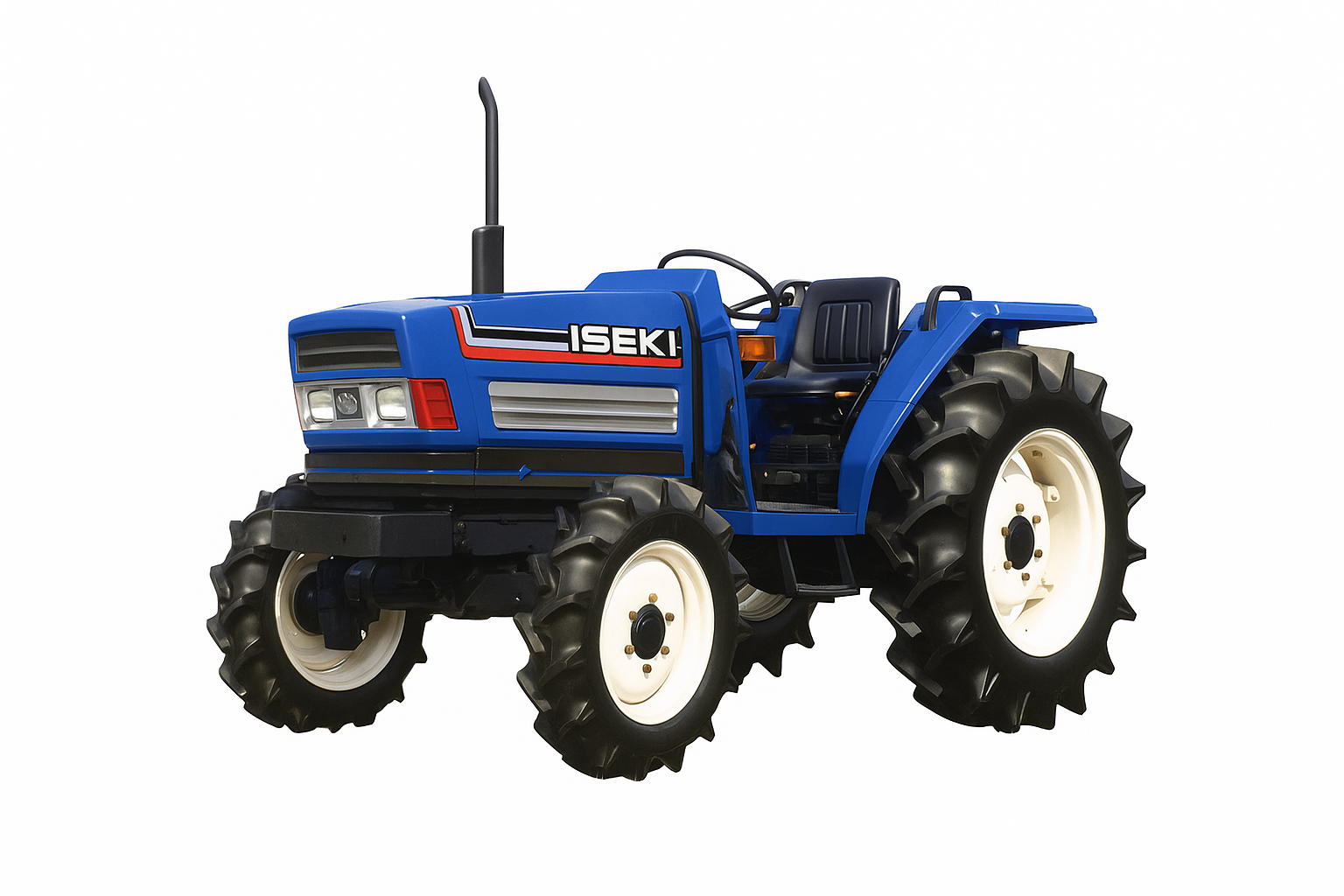

The Iseki TA295 is a compact tractor with a rated output of 29 hp, produced from 1987 to 1990. It features a 4-cylinder diesel liquid-cooled engine, powering a four-wheel drive system through a 16-speed gearbox. The listed weight of the Iseki TA295 is 1554 kg, and it is suited to tasks covering around 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
29 hp
Weight
1554 kg
Catalogue coverage
Variants represented
2
Richest spec table
41 rows
Recorded power
29 hp
Recorded weight
1554 kg
Transmissions
16-speed shuttle
Production years
1987-1990
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station. Cab optional.Reference
Variants
TA295F4WDReference
Engine
Isuzu 1.5L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine21.3 kWReference
Isuzu 4JF1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke75 x 84 mmReference
Power21.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant).Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2800Reference
Engine RPM705@2800Reference
Engine RPM837@2800Reference
Engine RPM1308@2800Reference
Dimensions
Wheelbase184 cmReference
Weight1554 kgReference
Front tire8-16Reference
Rear tire12.4-26Reference
Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length325 cmReference
Width150 cmReference
Height189 cmReference
Ground clearance31 cmReference
Front tread120 cmReference
Rear tread114/118/125/130/137/150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
