Tractor · 1989Unverified

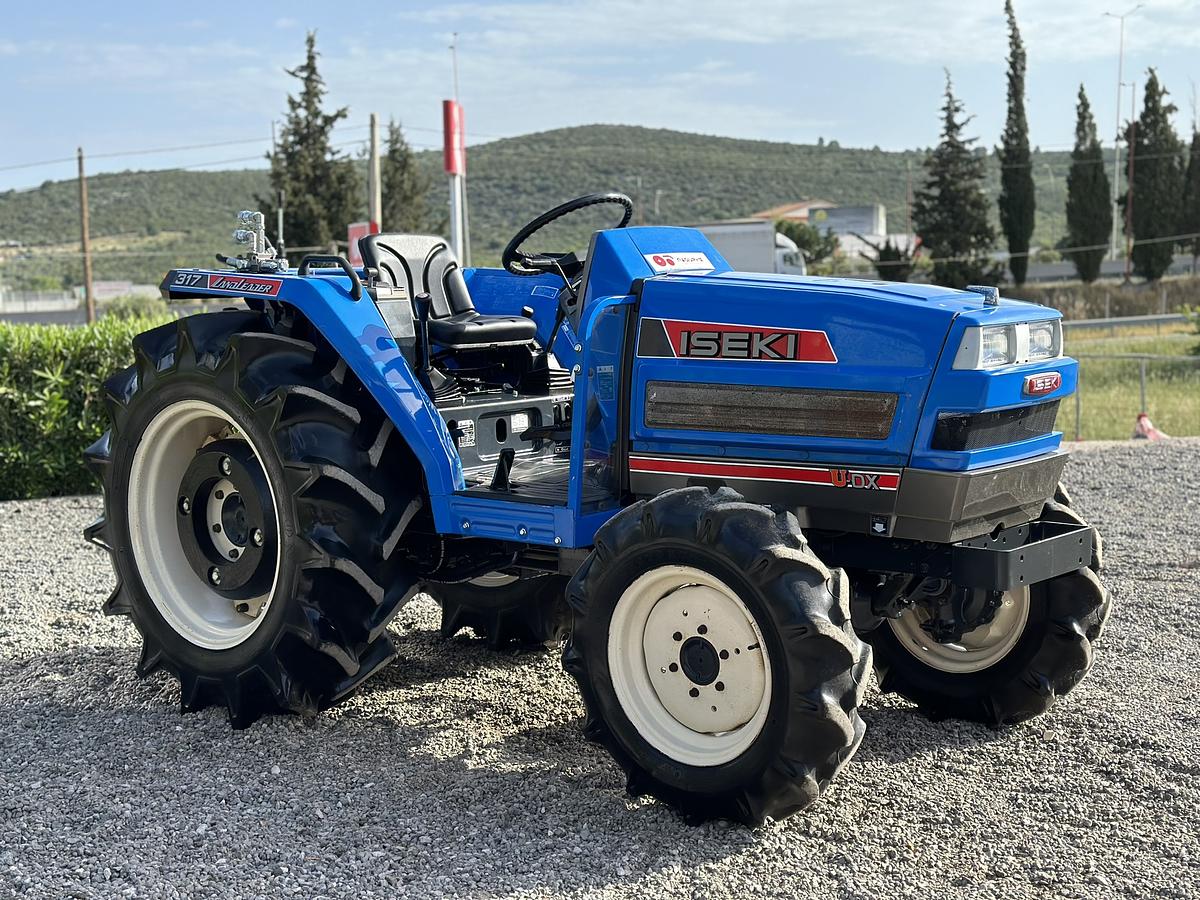

Iseki TA317
Iseki TA317 — Landleader TA7 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
2480 to 3131 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Open operator station. Cab optional.Reference
Variants
TA317F4WDReference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine22.4 kWReference
Iseki E3ADIReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke87 x 84 mmReference
Power22.4 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.8 LReference
Transmission
16-speedReference
Gears16 forward and reverseReference
Four gears (1-4) in four ranges with shuttle shift.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM565@2800Reference
Engine RPM732@2800Reference
Engine RPM1053@2800Reference
Engine RPM1233@2800Reference
Dimensions
Wheelbase172 cmReference
Weight2480 to 3131 poundsReference
Front tire5.50-16Reference
2WD Rear tire12.4-26Reference
2WD Standard tires (ag)Front: 5.50-16. Rear: 12.4-26Reference
4WD Standard tires (ag)Front: 8-16. Rear: 12.4-26Reference
Length307 cmReference
Width142 cmReference
Height (steering wheel)146 cmReference
Height (cab)199 cmReference
Ground clearance35 cmReference
2WD Front tread98 to 144 cmReference
4WD Front tread113 cmReference
Rear tread109 to 141 cmReference
2WD Open1124 kgReference
4WD Open1200 kgReference
2WD Cab1344 kgReference
4WD Cab1420 kgReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
