Tractor · 1985Unverified

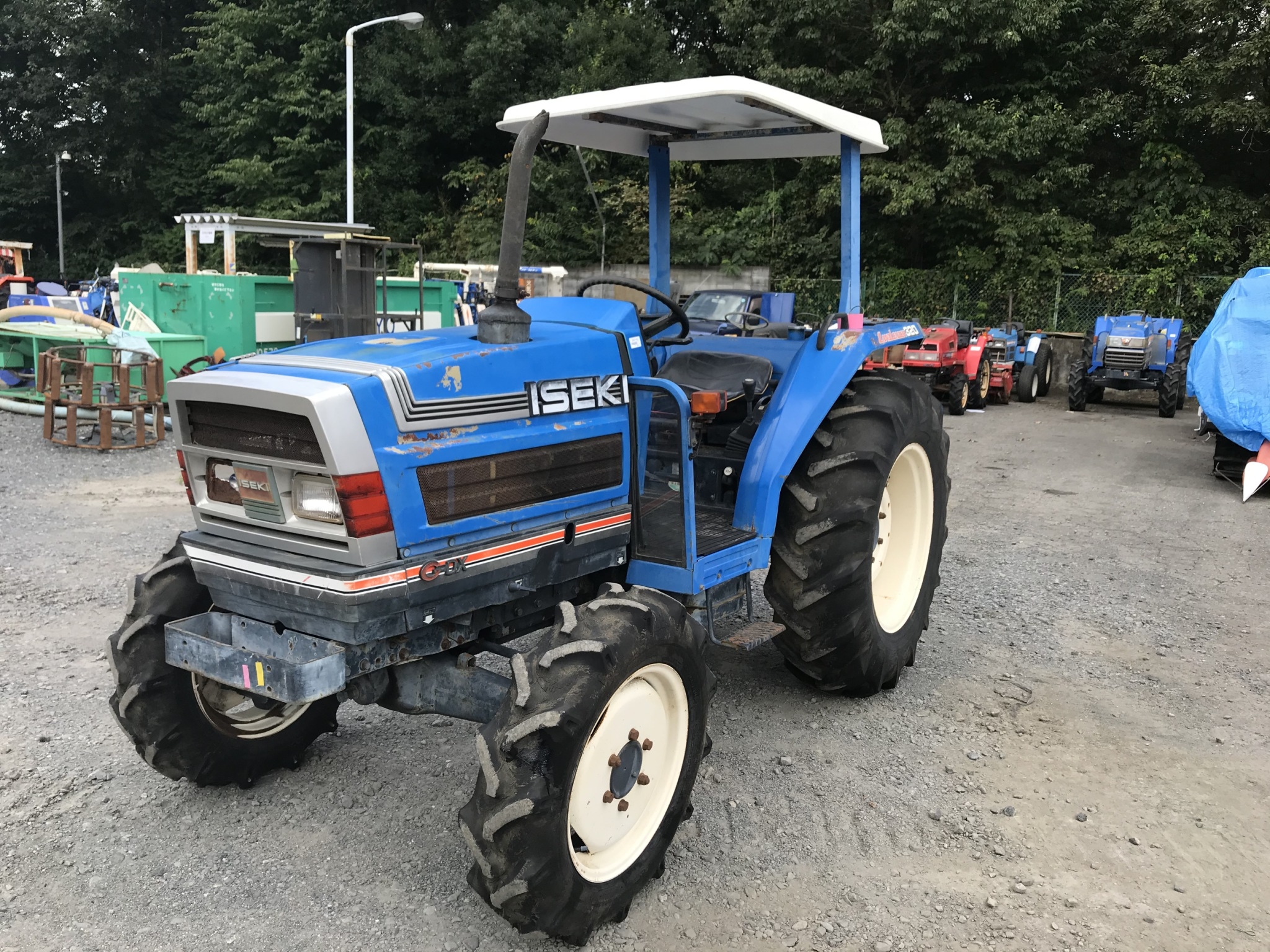

Iseki TA320

Name: Iseki TA320
Brand: Iseki

Iseki TA320 — Landleader TA0 Series · 32 hp. Reference specifications; pending source verification.

The Iseki TA320 is a tractor with a rated power output of 32 hp, positioning it at the lower end of its class. It was manufactured between the years 1985 and 1987. The tractor features a 4-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 16-speed gearbox. Its operating weight ranges from 3109 to 3384 pounds, suitable for operations covering up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

32 hp

Weight

3109 to 3384 pounds

Catalogue coverage

Variants represented

Richest spec table

42 rows

Recorded power

32 hp

Recorded weight

1410 kg

Transmissions

16-speed

Production years

1985-1987

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerIsekiReference

Compact Utility tractorReference

Two- or four-wheel driveReference

Open operator station.Reference

Variants

TA320F4WDReference

Engine

Isuzu 1.5L 4-cyl dieselReference

Fuel tank48.1 LReference

Engine23.9 kWReference

Isuzu 4FE1Reference

dieselReference

4-cylinderReference

liquid-cooledReference

Displacement1.5 LReference

Power23.9 kWReference

Rated RPM2800Reference

StarterelectricReference

Starter volts12Reference

Transmission

16-speedReference

Gears16 forward and reverseReference

PTO & Hydraulics

Rear TypeJIS1Reference

Rear PTO Type540 (1.375)Reference

Engine RPM564@2800Reference

Engine RPM705@2800Reference

Engine RPM837@2800Reference

Engine RPM1308@2800Reference

Dimensions

Wheelbase185 cmReference

Weight3109 to 3384 poundsReference

Front tire6.00-16Reference

2WD Rear tire13.6-26Reference

2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-26Reference

4WD Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference

Length326 cmReference

Width152 cmReference

Height (exhaust)192 cmReference

2WD Weight1410 kgReference

4WD Weight1534 kgReference

Ground clearance36 cmReference

2WD Front tread115/124/135/145/154 cmReference

4WD Front tread120 cmReference

Rear tread114/118/125/130/137/150 cmReference

Electrical

GroundnegativeReference

Battery volts12Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
