Tractor · 1987Unverified

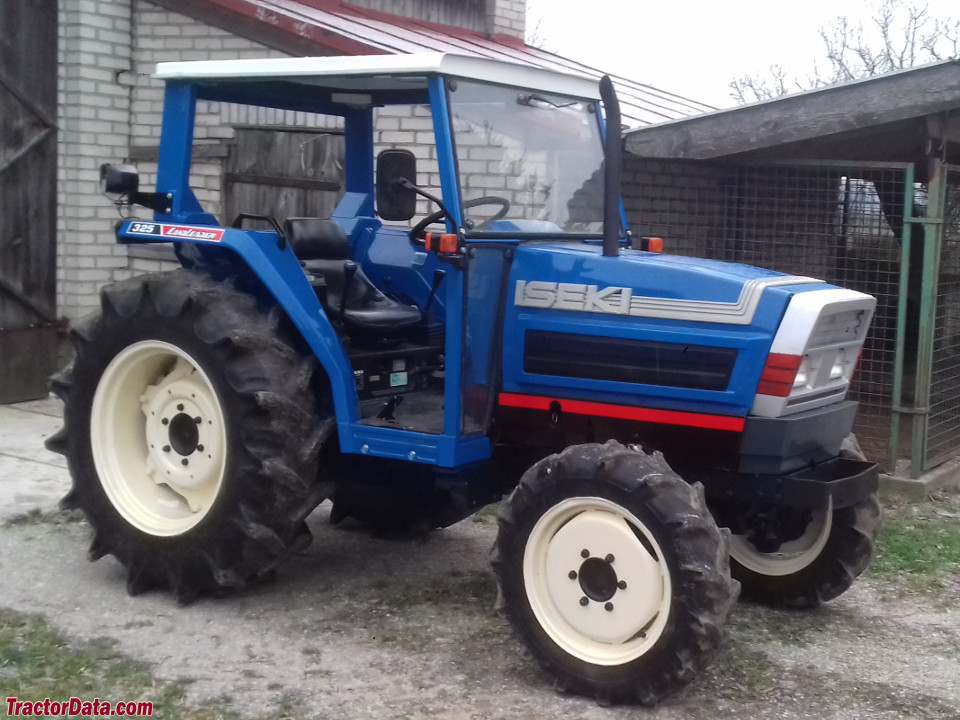

Iseki TA325
Iseki TA325 — Landleader TA5 Series · 32 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
32 hp
Weight
1579 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station. Cab optional.Reference
Variants
TA325F4WDReference
Engine
Isuzu 1.5L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine23.6 kWReference
Isuzu 4JF1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke75 x 84 mmReference
Power23.6 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant).Reference
PTO & Hydraulics
Rear TypeIReference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2800Reference
Engine RPM705@2800Reference
Engine RPM837@2800Reference
Engine RPM1308@2800Reference
Dimensions
Wheelbase186 cmReference
Weight1579 kgReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length325 cmReference
Width152 cmReference
Height192 cmReference
Ground clearance34 cmReference
Front tread120 cmReference
Rear tread114/118/125/130/137/150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
