Tractor · 1989Unverified

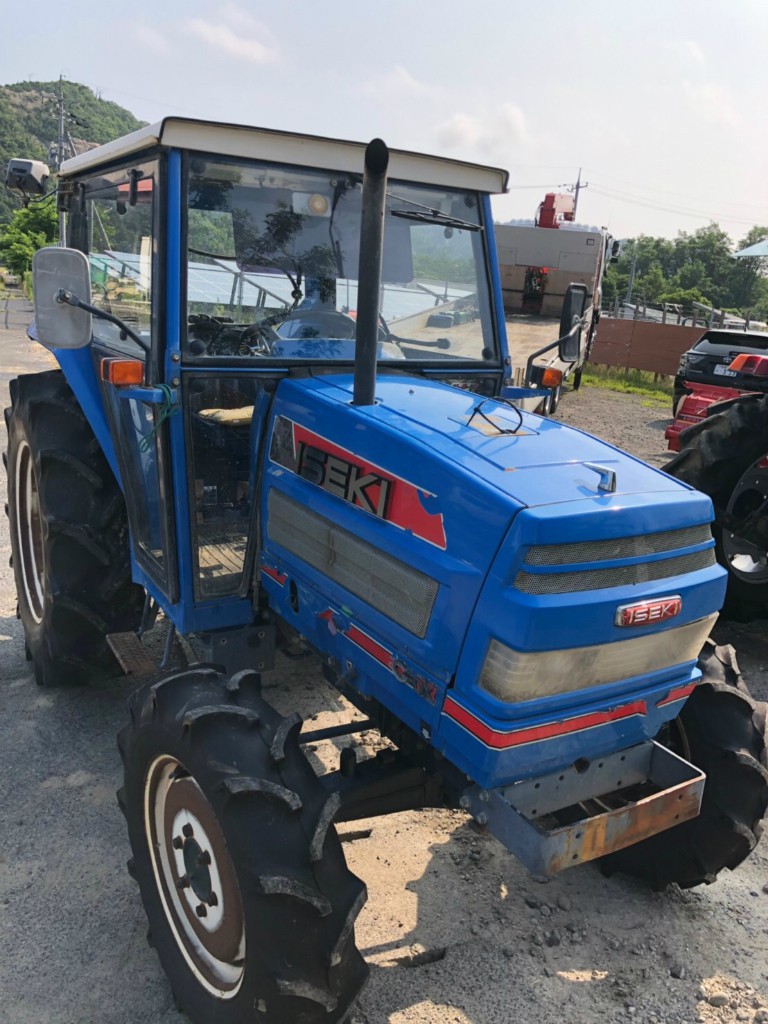

Iseki TA337
Iseki TA337 — Landleader TA7 Series · 33 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
33 hp
Weight
1510 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Open operator station. Cab optional.Reference
Engine
Isuzu 1.5L 4-cyl dieselReference
Fuel tank42.0 LReference
Engine24.3 kWReference
Isuzu 4JF1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke75 x 84 mmReference
Power24.3 kWReference
Rated RPM2800Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM564@2800Reference
Engine RPM705@2800Reference
Engine RPM1040@2800Reference
Engine RPM1308@2800Reference
Dimensions
Wheelbase186 cmReference
Weight1510 kgReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length325 cmReference
Width152 cmReference
Height192 cmReference
Ground clearance36 cmReference
Front tread120 cmReference
Rear tread114 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
