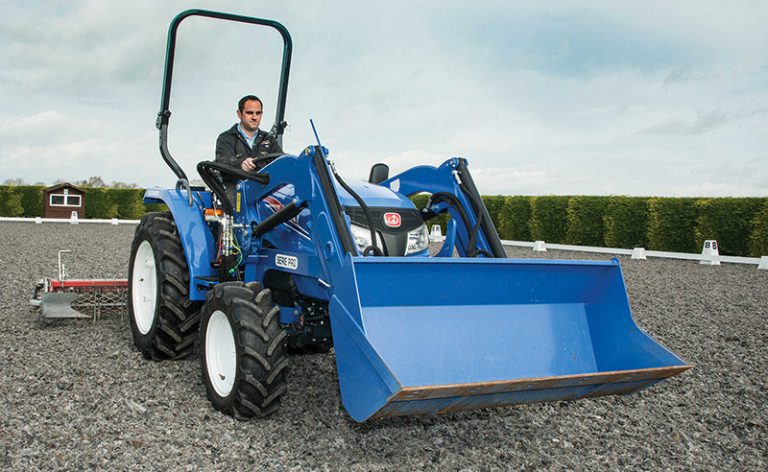

Iseki TA340
Iseki TA340 — Landleader TA0 Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
3109 to 3307 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Four-post ROPS. Cab optional.Reference
Variants
TA340F4WDReference
Engine
Isuzu 1.8L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine25.0 kWReference
Isuzu 4FB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.8 LReference
Bore/Stroke84 x 82 mmReference
Power25.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM587@2600Reference
Engine RPM705@2600Reference
Engine RPM854@2600@1321@2600Reference
Dimensions
Wheelbase186 cmReference
Weight3109 to 3307 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-26Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-26Reference
4WD Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length326 cmReference
Width152 cmReference
Height192 cmReference
2WD Weight1410 kgReference
4WD Weight1500 kgReference
Ground clearance36 cmReference
2WD Front tread115 to 154 cmReference
4WD Front tread120 cmReference
Rear tread114 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
