Tractor · 1987Unverified

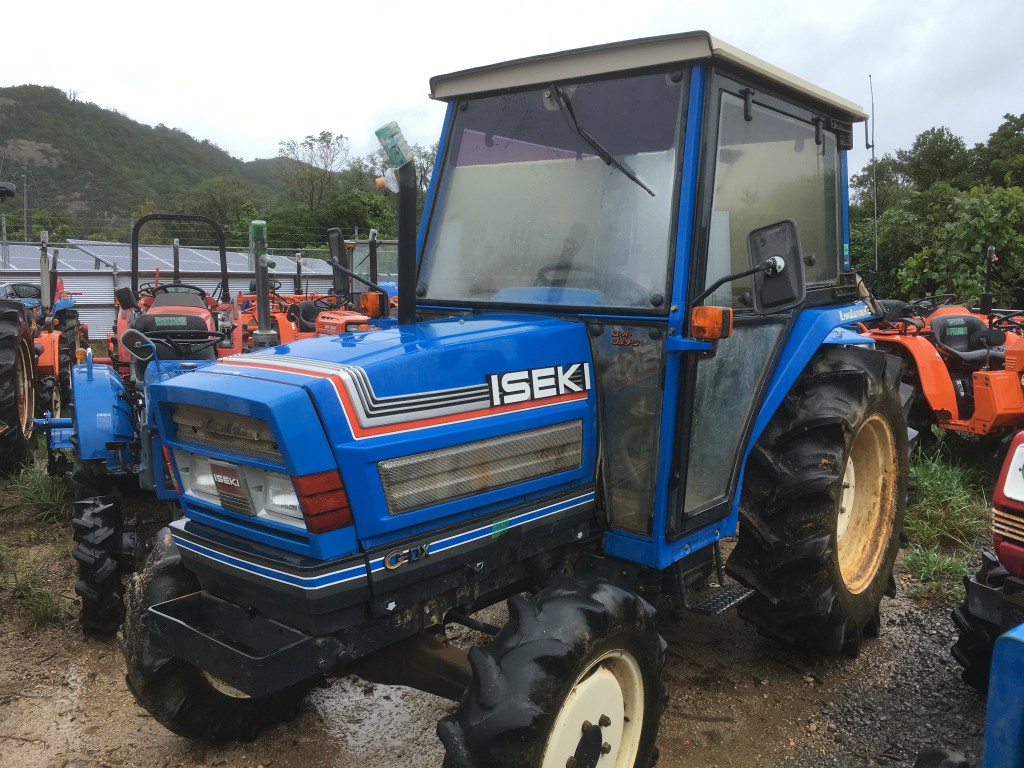

Iseki TA345
Iseki TA345 — Landleader TA5 Series · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Weight
1701 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Four-post ROPS. Cab optional.Reference
Engine
Iseki 1.9L 4-cyl dieselReference
Fuel tank48.1 LReference
Engine25.0 kWReference
Iseki 4JE1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement1.9 LReference
Bore/Stroke93 x 67 mmReference
Power25.0 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speed shuttleReference
TypeshuttleReference
Gears16 forward and reverseReference
Four gears in four ranges with left-hand shuttle. Option power shuttle (S variant).Reference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM587@2600Reference
Engine RPM705@2600Reference
Engine RPM854@2600Reference
Engine RPM132@2600Reference
Dimensions
Wheelbase189 cmReference
Weight1701 kgReference
Front tire8-18Reference
Rear tire13.6-26Reference
Standard tires (ag)Front: 8-18. Rear: 13.6-26Reference
Length329 cmReference
Width152 cmReference
Height218 cmReference
Ground clearance37 cmReference
Front tread120 cmReference
Rear tread114 to 150 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
