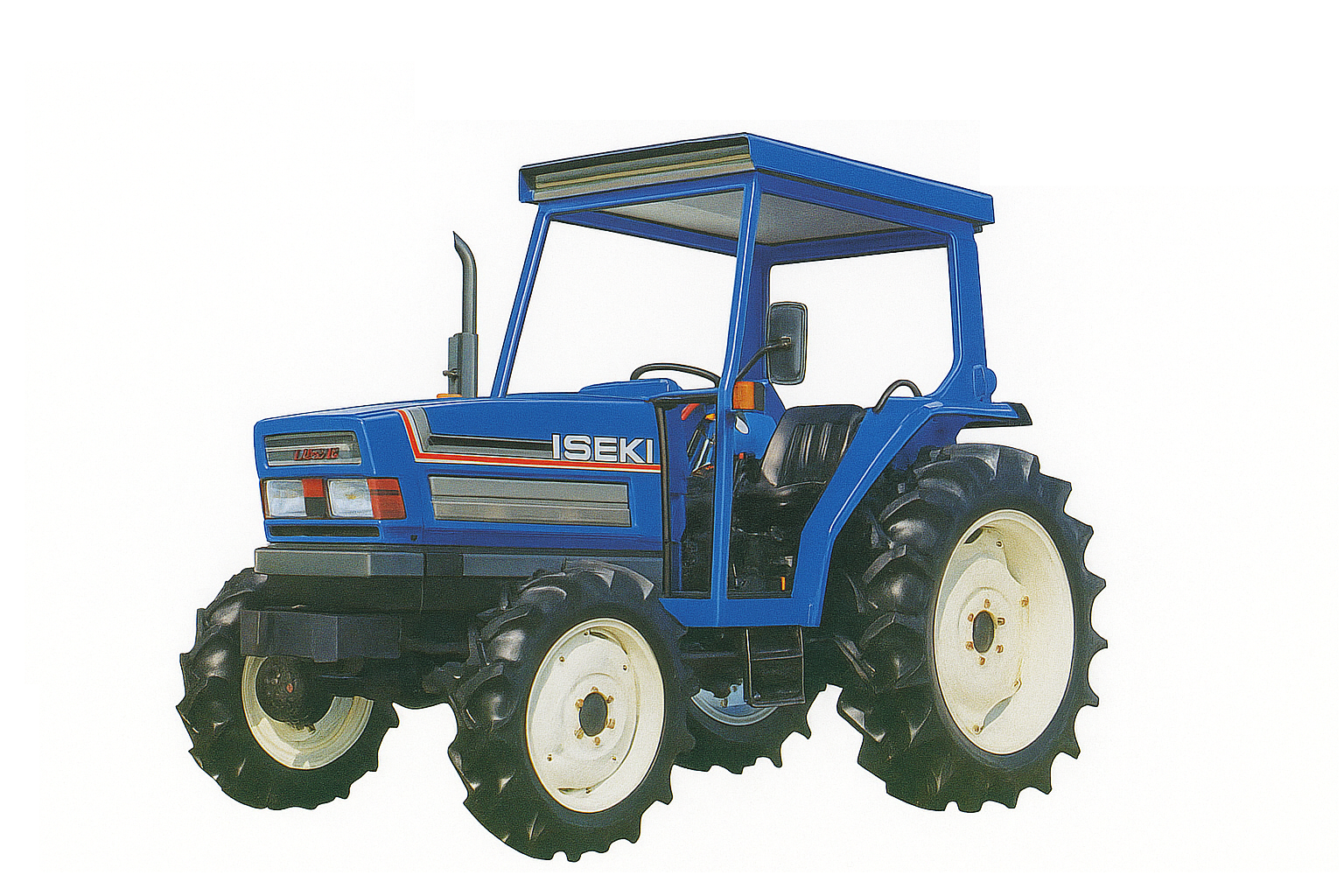

The Iseki TA505 is a compact tractor with a rated output of 49 hp, produced from 1987 to 1990. It features a 4-cylinder diesel liquid-cooled engine, coupled with a four-wheel drive system and a 16-speed gearbox. The tractor's weight is listed as 2160 kg, and it is designed for use on land of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
49 hp
Weight
2160 kg
Catalogue coverage
Variants represented
2
Richest spec table
36 rows
Recorded power
49 hp
Recorded weight
2160 kg
Transmissions
16-speed
Production years
1987-1990
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Four-wheel driveReference
Four-post ROPS. Cab optional.Reference
Engine
Isuzu 2.8L 4-cyl dieselReference
Fuel tank51.1 LReference
Engine36.8 kWReference
Isuzu 4JB1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Power36.8 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeJIS1Reference
Rear PTO Type540 (1.375)Reference
Engine RPM565@2500Reference
Engine RPM821@2500Reference
Engine RPM1270@2500Reference
Dimensions
Wheelbase202 cmReference
Weight2160 kgReference
Front tire8.3-20Reference
Rear tire12.4-24Reference
Standard tires (ag)Front: 8.3-20. Rear: 12.4-24Reference
Length346 cmReference
Width154 cmReference
Height238 cmReference
Ground clearance37 cmReference
Front tread121 to 155 cmReference
Rear tread121 to 162 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
