Tractor · 1993Unverified

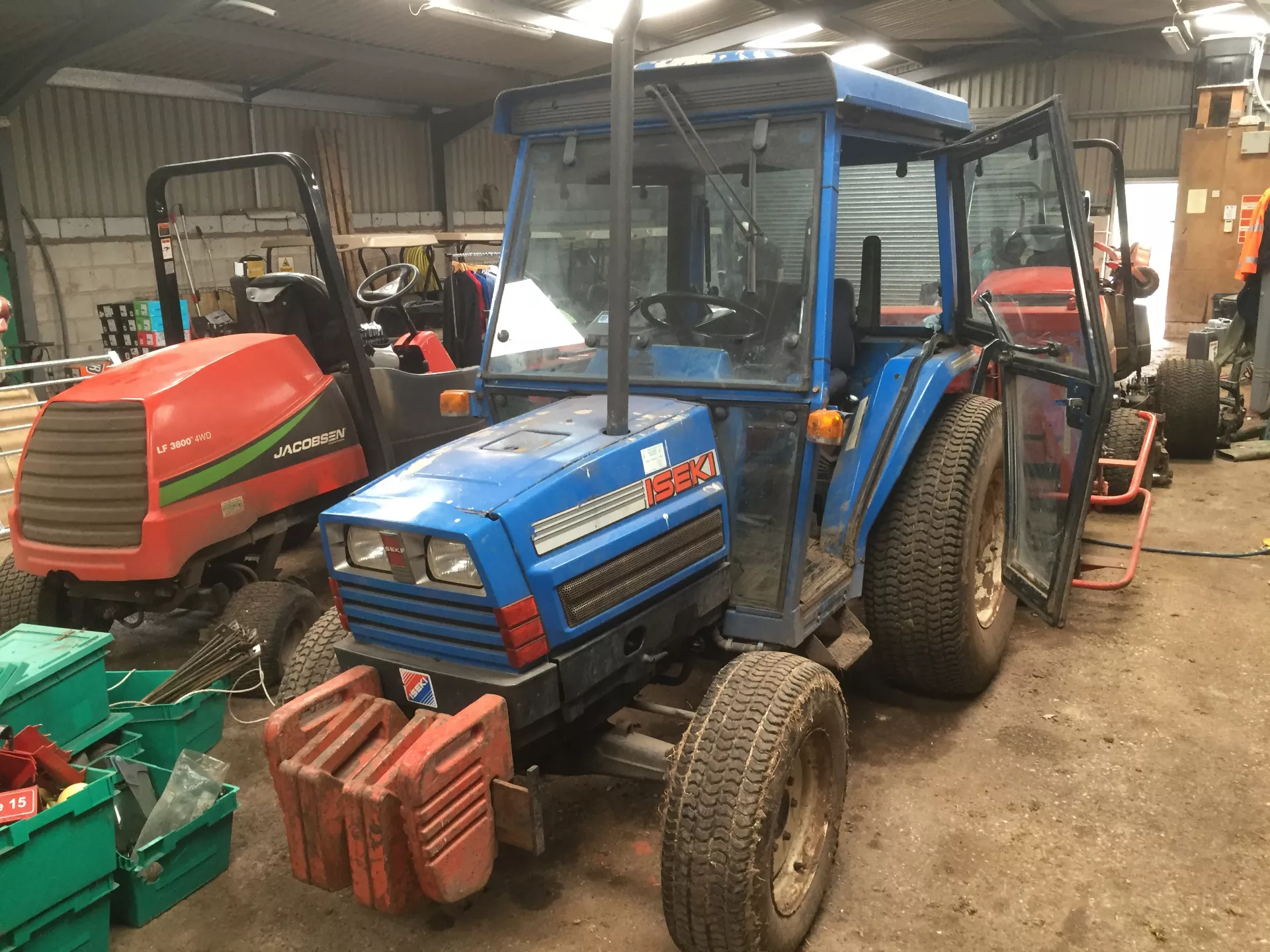

Iseki TA530
Iseki TA530 — TA500 Series · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
1159 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Built in JapanReference
Four-wheel driveReference
Power steeringReference
Mechanical wet disc brakesReference
Two-post folding ROPS.Reference
Engine
Iseki 1.5L 3-cyl dieselReference
Fuel tank29.9 LReference
Engine22.4 kWReference
Iseki E3AD1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.5 LReference
Bore/Stroke86 x 86 mmReference
Power22.4 kWReference
Rated RPM2600Reference
Torque99.0 NmReference
Torque RPM1600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity4.3 LReference
Exhaust valve clearance0.457 mmReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Oil capacity25.0 LReference
PTO & Hydraulics
Pressure144.8 barReference
Total flow23.8 lpmReference
Steering flow14.0 lpmReference
Rear TypeIReference
Rear lift (at ends)1300 kgReference
Rear PTOindependentReference
Clutchelectro-hydraulicReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase169 cmReference
Weight1159 kgReference
Front tire7x16Reference
Rear tire12.4x24Reference
Ag front7x16Reference
Ag rear12.4x24Reference
Length306 cmReference
Width135 cmReference
Height149 cmReference
Ground clearance35 cmReference
Front tread106 cmReference
Rear tread102 to 134 cmReference
Electrical
GroundnegativeReference
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH80Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
