Tractor · Unverified

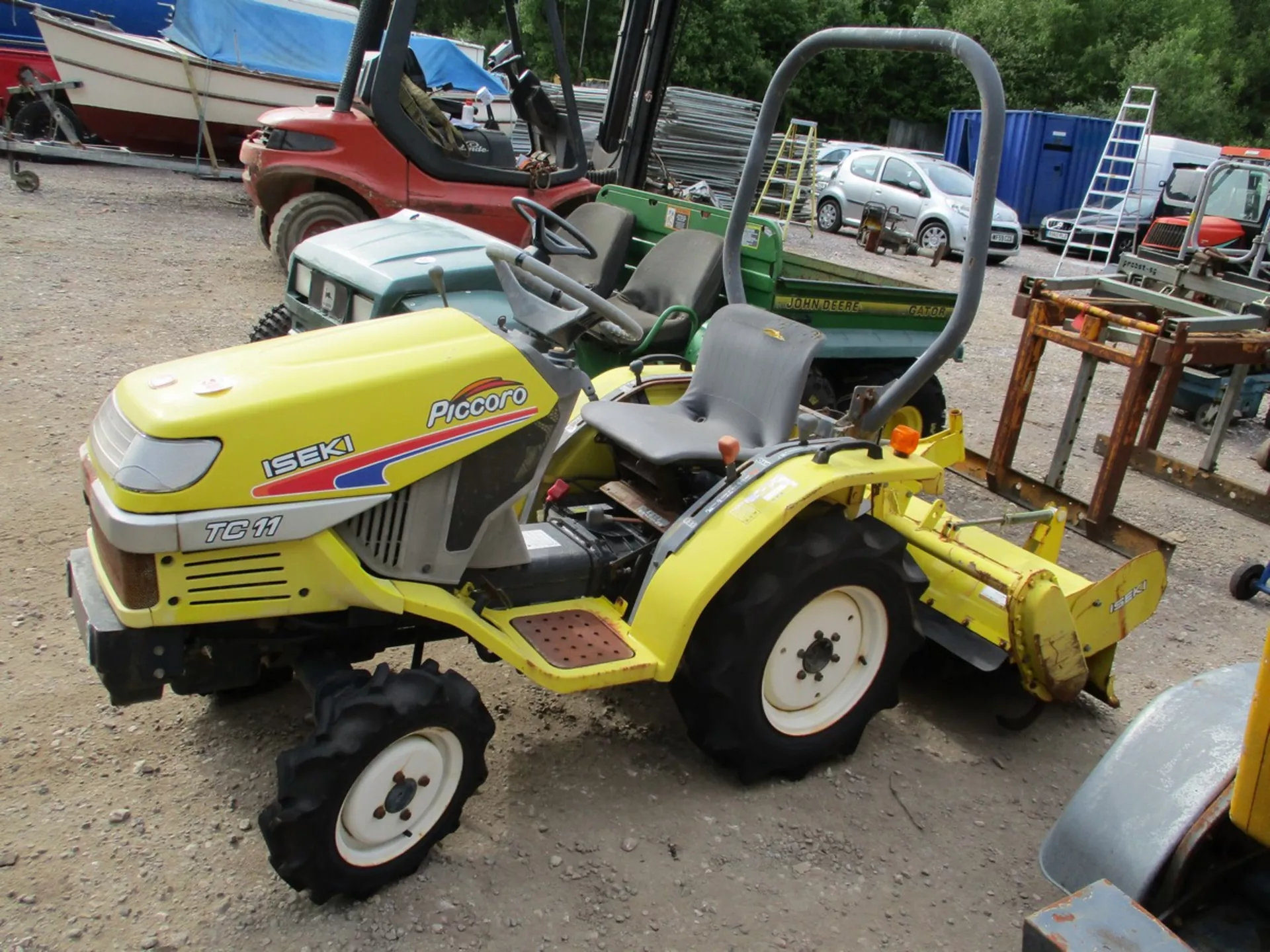

Iseki TC11
Iseki TC11 — TC Piccoro SeriesSub-Compact Utility tractor · 10 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
464 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Iseki 0.6L 2-cyl dieselReference
Fuel tank12.9 LReference
Engine7.6 kWReference
Iseki E255Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.6 LReference
Bore/Stroke70 x 72 mmReference
Power7.6 kWReference
Rated RPM2500Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM2500@470Reference
Engine RPM2500@672Reference
Dimensions
Wheelbase104 cmReference
Weight464 kgReference
Front tire4.00-10Reference
Rear tire7-14Reference
Standard tires (ag)Front: 4.00-10. Rear: 7-14Reference
Length190 cmReference
Width91 cmReference
Height172 cmReference
Ground clearance24 cmReference
Front tread75 cmReference
Rear tread74/83 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
