Tractor · Unverified

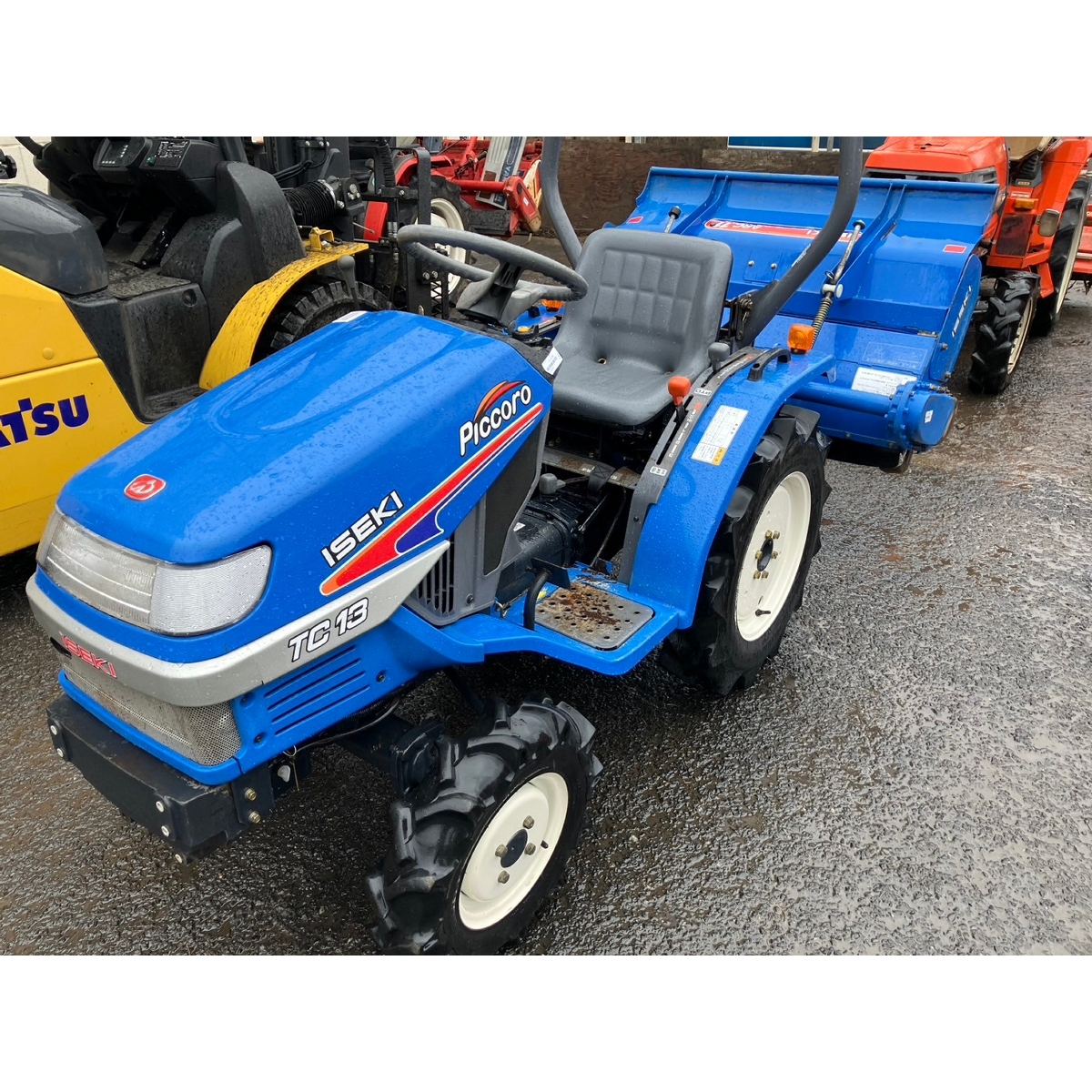

Iseki TC13
Iseki TC13 — TC Piccoro SeriesSub-Compact Utility tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
469 kg
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Sub-Compact Utility tractorReference
Four-wheel driveReference
Two-post ROPS.Reference
Engine
Iseki 0.7L 2-cyl dieselReference
Fuel tank12.9 LReference
Engine9.6 kWReference
Iseki E269Reference
dieselReference
2-cylinderReference
liquid-cooledReference
Displacement0.7 LReference
Power9.6 kWReference
Rated RPM2700Reference
StarterelectricReference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Three gears, plus reverse, in two ranges.Reference
PTO & Hydraulics
Rear PTO Type540 (1.375)Reference
Engine RPM477@2700Reference
Engine RPM682@2700Reference
Dimensions
Wheelbase104 cmReference
Weight469 kgReference
Front tire4.50-10Reference
Rear tire7-16Reference
Standard tires (ag)Front: 4.50-10. Rear: 7-16Reference
Length190 cmReference
Width91 cmReference
Height176 cmReference
Ground clearance26 cmReference
Front tread75 cmReference
Rear tread74/84 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
