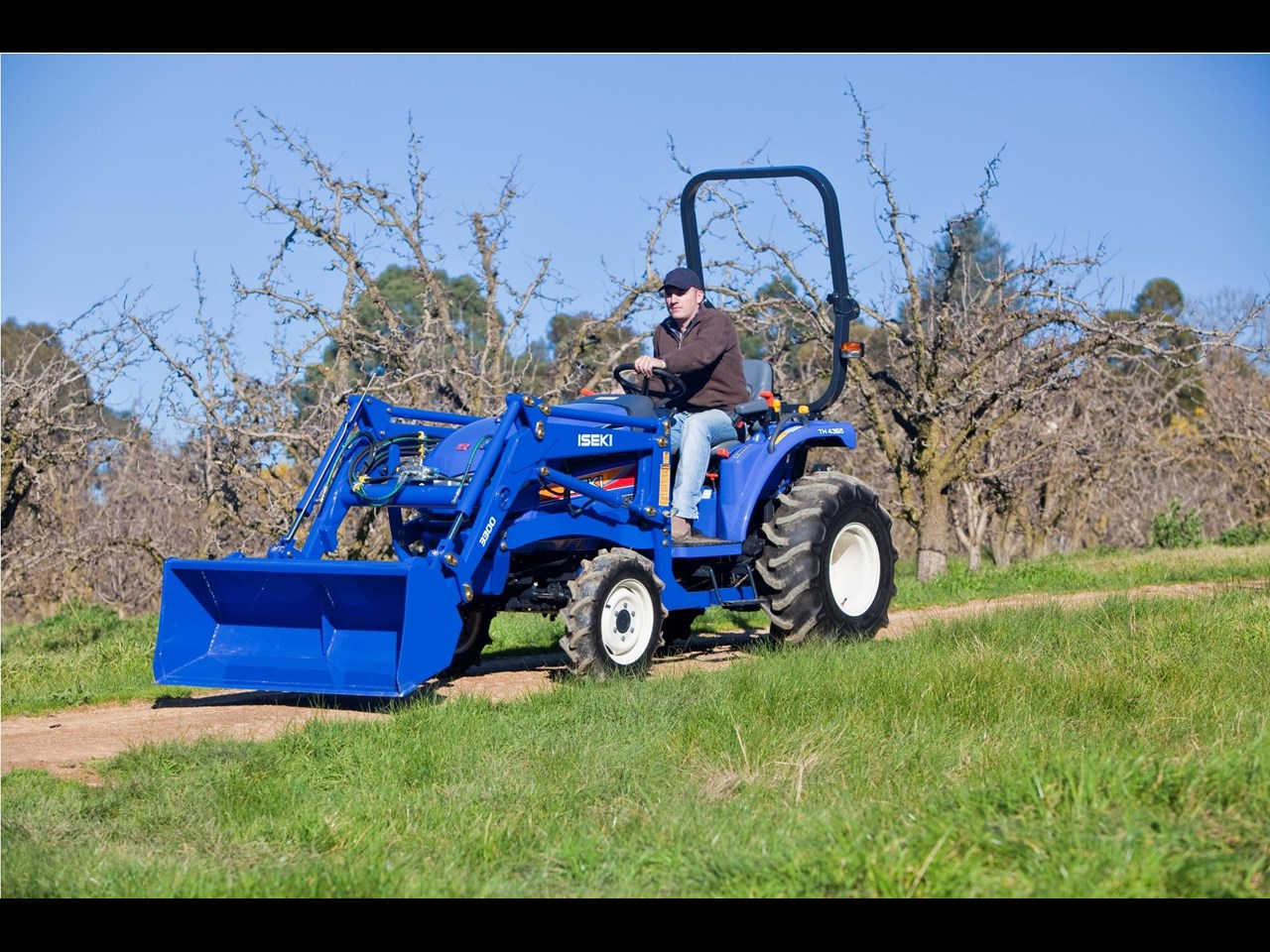

Iseki TD4410
Iseki TD4410 — Compact Utility tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
3502 to 3789 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Two- or four-wheel driveReference
Power steeringReference
Wet disc brakesReference
Open operator station. Two-post fixed ROPS available.Reference
Engine
Isuzu 2.0L 4-cyl dieselReference
Fuel tank50.0 LReference
Engine32.8 kWReference
Isuzu 4FC1Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.0 LReference
Bore/Stroke84 x 90 mmReference
Power32.8 kWReference
Air cleanerdryReference
Rated RPM2600Reference
Torque122.6 NmReference
Torque RPM1400Reference
StarterelectricReference
Starter volts12Reference
Transmission
18-speed synchromeshReference
TypesynchromeshReference
Gears18 forward and 6 reverseReference
Clutch260mm dry discReference
Three gears, plus reverse in three ranges plus creeper range.Reference
PTO & Hydraulics
PTO (claimed)28.3 kWReference
Typeopen centerReference
Pressure156.9 barReference
Pump flow32.0 lpmReference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift (at ends)1474 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@2250Reference
Engine RPM1000@2250Reference
Dimensions
Wheelbase193 cmReference
Weight3502 to 3789 poundsReference
Front tire6.00-16Reference
2WD Rear tire13.6-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 13.6-28Reference
4WD Standard tires (ag)Front: 8.00-18. Rear: 13.6-28Reference
Length340 cmReference
Width155 cmReference
Height219 cmReference
Height (steering wheel)146 cmReference
2WD Weight1588 kgReference
4WD Weight1718 kgReference
Ground clearance34 cmReference
Clearance (drawbar)31 cmReference
2WD Front tread115 to 154 cmReference
4WD Front tread109 to 162 cmReference
Rear tread121 to 162 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
