Tractor · 1985Unverified

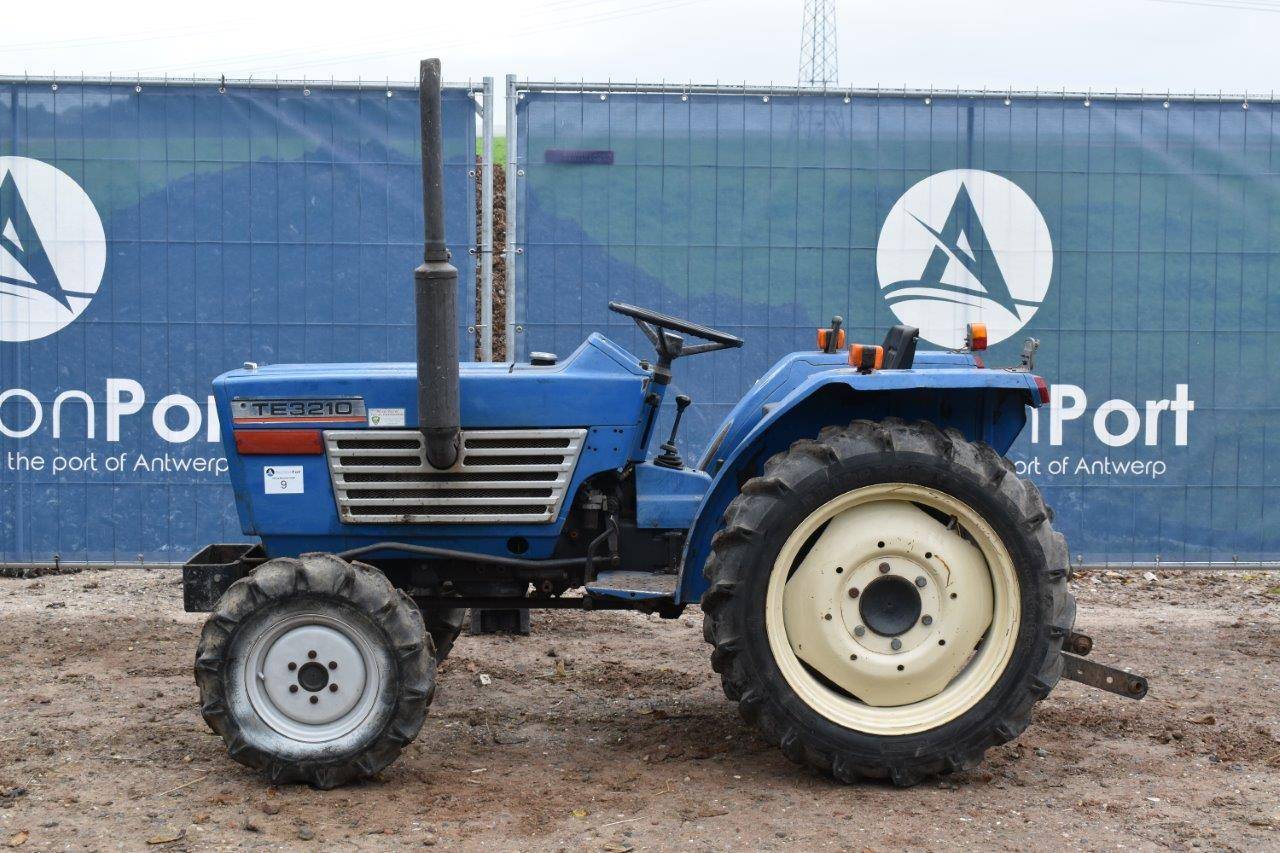

Iseki TE3210
Iseki TE3210 — Compact Utility tractor · 21 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
21 hp
Weight
1587 to 1676 pounds
Hover a source tag to verify
Overview
ManufacturerIsekiReference
Compact Utility tractorReference
Original price was GBP6865 in 1988Reference
Two- or four-wheel driveReference
Steeringmanual ball and screwReference
Mechanical dry shoe brakesReference
Open operator station.Reference
Engine
Iseki 1.2L 3-cyl dieselReference
Fuel tank19.7 LReference
Engine15.7 kWReference
Iseki E3AF1Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.2 LReference
Bore/Stroke76 x 86 mmReference
Power15.7 kWReference
Rated RPM2600Reference
StarterelectricReference
Starter volts12Reference
Oil capacity3.0 LReference
Intake valve clearance0.457 mmReference
Exhaust valve clearance0.457 mmReference
Transmission
12-speedReference
Gears12 forward and 4 reverseReference
Oil capacity17.0 LReference
PTO & Hydraulics
Pressure137.9 barReference
Total flow15.9 lpmReference
Rear Type0Reference
Rear lift (at ends)719 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight1587 to 1676 poundsReference
Front tire4.00-12Reference
2WD Rear tire8.3-24Reference
2WD Standard tires (ag)Front: 4.00-12. Rear: 8.3-24Reference
4WD Standard tires (ag)Front: 6.00-12. Rear: 8.3-24Reference
Length267 cmReference
Width108 cmReference
Height191 cmReference
2WD Weight719 kgReference
4WD Weight760 kgReference
Electrical
Charging systemalternatorReference
Charging amps40Reference
Battery volts12Reference
Battery AH45Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
